2.5-6mm automatic steel welded wire mesh machine
We can produce kinds of welded wire mesh machines according to our clients.
And we will provide reliable quality and competitive price for our every client.
Welcome to enquiry us and place order to us !
Specifications:
Model |
2500A |
Welding speed |
40 times/min |
Wire diameter |
2.5-6mm |
Welding electrodes |
48pcs |
Longitude wire space |
50-300mm |
Longitude wire feeding |
Pre-straightened&pre-cut |
Cross wire space |
25-300mm |
Cross wire feeding |
Pre-straightened&pre-cut |
Mesh width |
Max.2.5m |
Overall Size |
8.4*3.1*1.7m |
Rated electrical power |
85kva*6 pcs |
Weight |
4200kg |
Machine Charateristics
- Control system: PLC control system
- Step motor control mesh pulling, can adjust cross wire space.
- The longitude wires and cross wires should be pre-straghtened and pre-cut.
- The longitude wires feedng adopts slot tunnel, insert wires by manual work.
- The cross wire feeding adopts hopper device, can feed wires one by one automatically.
- Adjust: The cross wire space and warp space will be adjusted as your requirement. All of the debugging working will be done in the factory manufacture by our engineers.
- CE certificate; ISO certificate
- Install: The machine need not install the anchor bolt, only need to put on the ground of plant.
- Machine accessories: Wire straightening and cutting machine

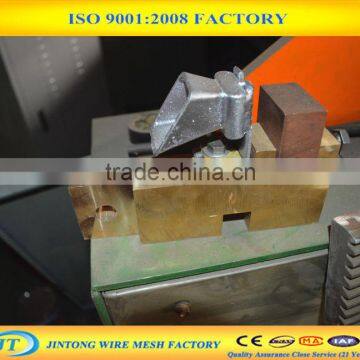

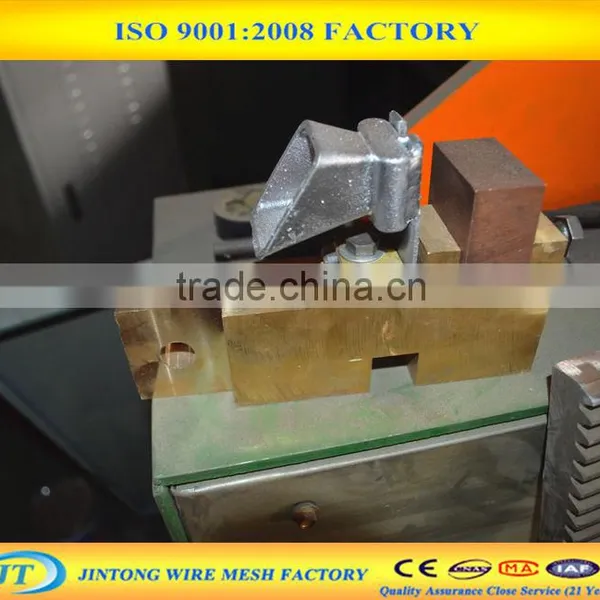

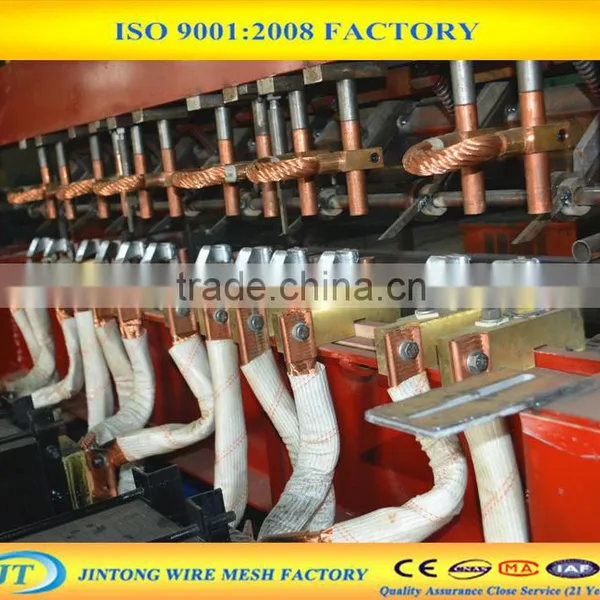

Welding electrodes:

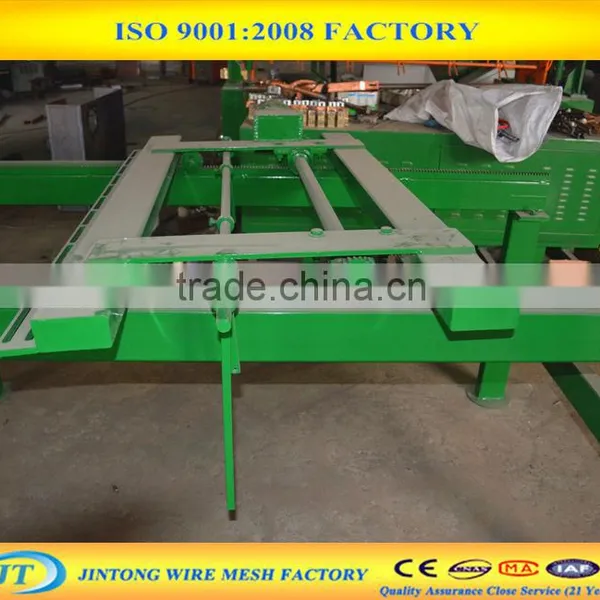

Semi finished machine:

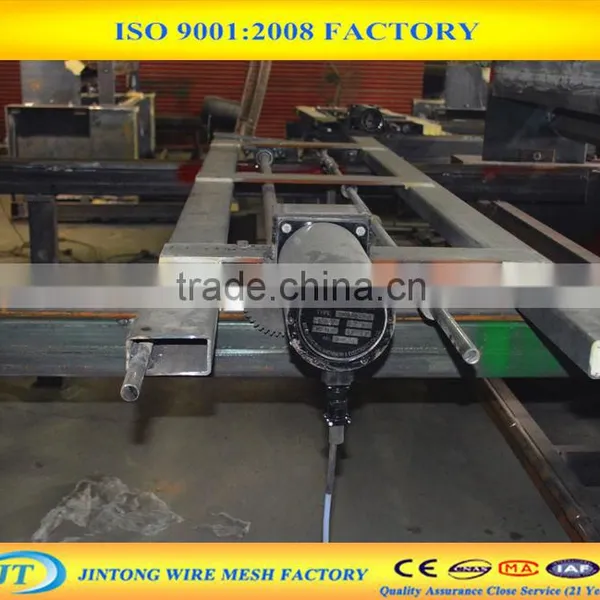

Machine motor:

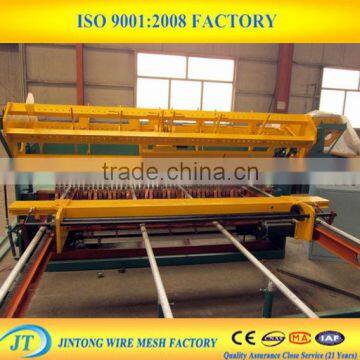

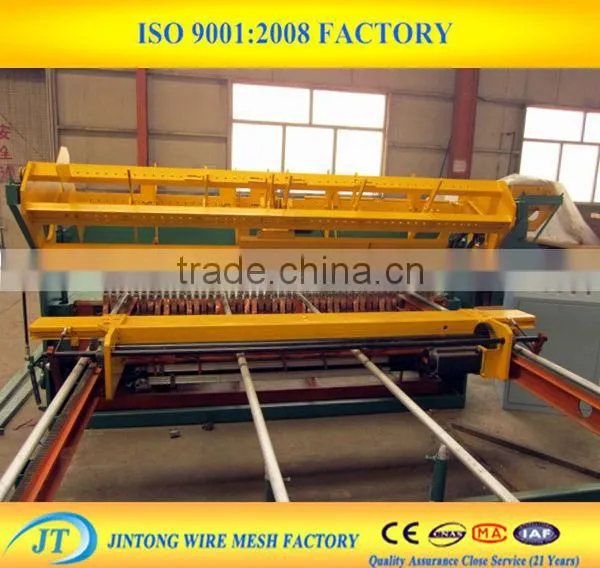

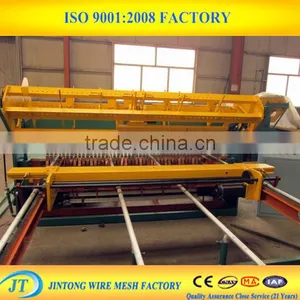

Finished machine:
Who you are?
1. We are JINTONG WIRE MESH FACTORY .
2. Mainly products are: perforated mesh series, farm products series, fencing products series, and machine series, etc.
3. Occupied area:7,000 square meters.
Why choose us?
Professional wire mesh factory since 1992 years.
Reasonable Price with Quality assurance. Timely delivery; Close service.
Sophisticated production equipment.
Professional staff and the management of the production workers Strictly quality control inspection system.
QA/QC Introduction:
We have passed the ISO 9001:2008 in the year of 2011 and also have quality supervision staff to monitor the production process.
- QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
- Quality inspection department work is to inspect quality each day in production workshop.
- We must ensure that every product to attain to the quality requirements of the customers.
- We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
Following are some photos which shown our meeting with customers.
