Low Price PE Film Blown Machine And Plastic Extrusion Machine
- 50 Set / Sets per Month
- any main port in china
- T/T L/C Credit Card PayPal
-
High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
-
Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
-
Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
-
custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
-
Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
-
Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
| Condition: | New | Application: | Film | Plastic Processed: | PE |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Henan, China |
| Brand Name: | Allraising | Model Number: | OR-50 | Voltage: | 220V/380V |
| Power(W): | 11kw | Dimension(L*W*H): | 4.3*2.3*3.8m | Weight: | 1800kg |
| Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

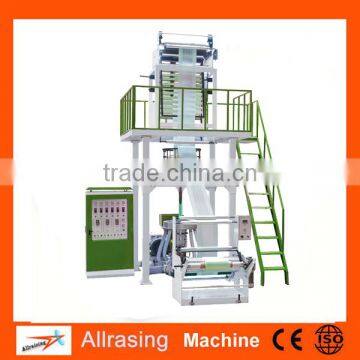

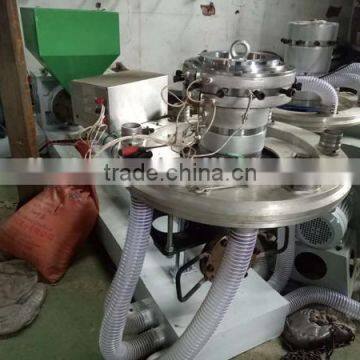

Low Price PE Film Blown Machine And Plastic Extrusion Machine
Parameters of Low Price PE Film Blown Machine And Plastic Extrusion Machine
| Model | OR-50 | OR-55 | OR-60 |
| Screw diamater | φ50MM | φ55MM | φ60MM |
| Screw ratio(L/D) | 28:1 | 28:1 | 28:1 |
| Screw speed | 10-90RPM | 10-120RPM | 10-120RPM |
| Die specifications | φ60mm,φ100mm | φ80mm,φ120mm | φ120mm,φ220mm |
| Single thickness | 0.003-0.12mm | 0.003-0.12mm | 0.003-0.12mm |
| Heating power | 18kw | 15kw | 18.5kw |
| Main motor power | 11kw | 15kw | 18.5kw |
| Output | 20kg/h | 25kg/h | 30kg/h |
| Dimensions(L*W*H) | 4.3*2.3*3.8m | 4.5*2.5*4m | 5.1*3.3*5m |
Features of Low Price PE Film Blown Machine And Plastic Extrusion Machine
The unit used for blowing high density polyethylene (HDPE), low density polyethylene (LDPE) and linear low density polyethylene (LLDPE) plastic film, widely used in food, clothing, textiles, daily necessities and other public goods and industrial goods packaging. The raw material can be used to produce pearlescent film and degradable film.

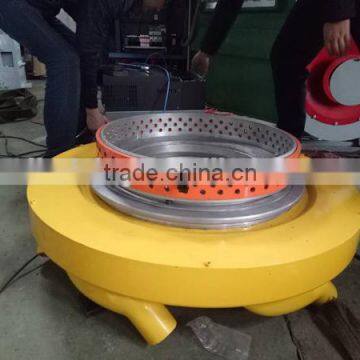

The screw and barrel are made of 38CRMOALA alloy steel, processed by nitriding and precision machining, high hardness, corrosion resistance, durable. The utility model is characterized in that the utility model has the advantages that the structure of the utility model is a spiral core shaft type, the extruded molten material is uniform, the blown film has good finish, the structure of the air cooling device is a labyrinth type, and the air outlet is uniform. The lifting device can be adjusted up and down according to different process requirements. The coiling device adopts the pressure friction work roll or the central work roll, adopts the torque motor to adjust, the winding is smooth, and the winding is convenient.
We have various products to meet your demand, if you want konw more, please contact me freely.
| Packong Detail | Strong wooden case |
| Delivery Detail | 3-7days after receiving the prepayment |
| Mode of transportation | By sea,By Air,By Express |
| Port of shipment | Main port in China mainland |
| Terms of payment | L/C,T/T,Western union,Paypal/Trade Assurance |
Our Service:
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
♥24 hours on-line service for you

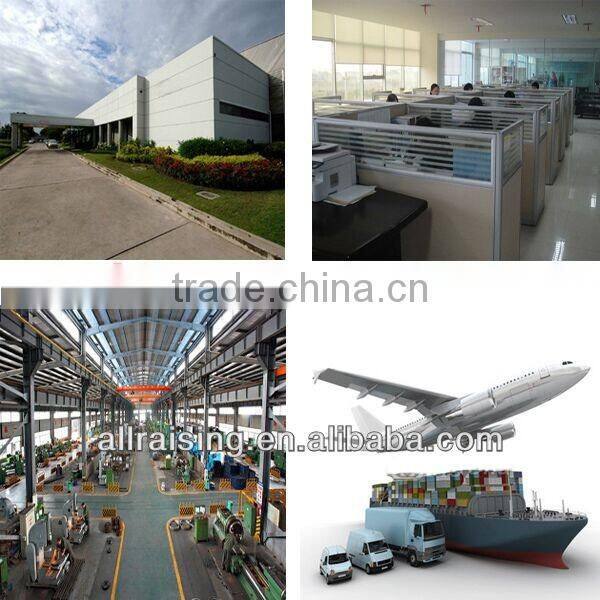

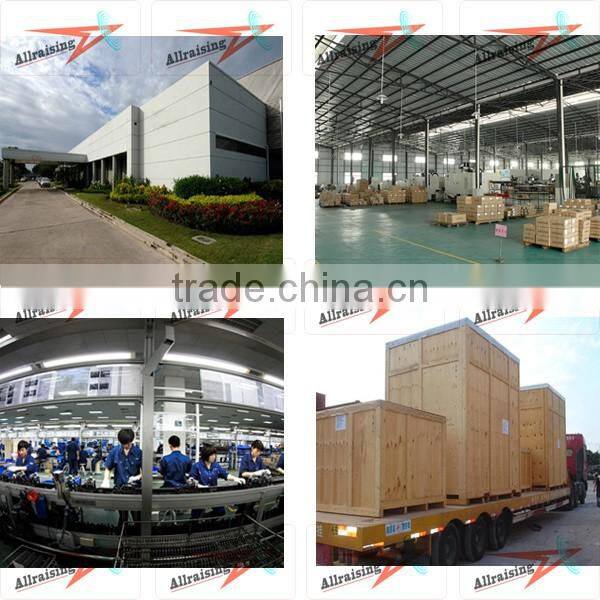

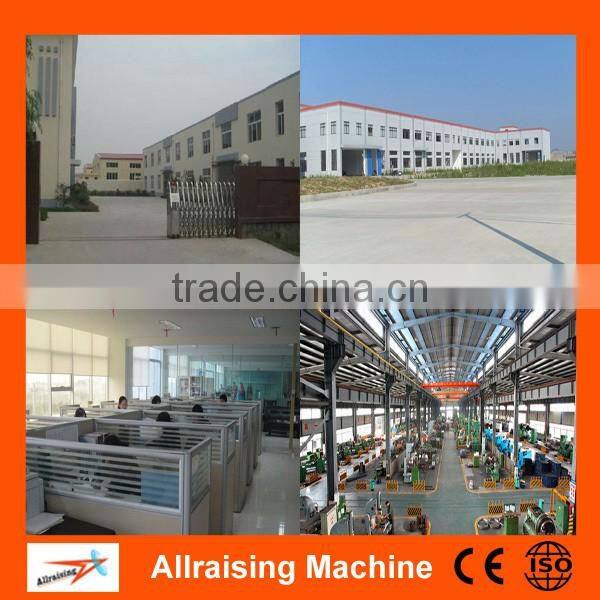

Company Advantages:
1)We are experience in exporting and international trade.
2)We are knowledge in market demands and product satisfaction.
3)We are professional in production team and control system.
4)We are sincere and honest to customers.
"Better Quality, Lower Cost, Preferential service" is the principle which we have been following.We warmly and sincerely welcome any potential customer to visit our factory any time.Let's work hand in hand to create a resplendent future.
Q: Why don't person reply to me?
A: Our person is 24hours online. If nobody reply you , maybe he has other businesses temporarily. So please leave your requirements on email or chat tool, we will reply you as soon as possible.
Q: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower.
If you have any question,plesase contact me at any time!
