Advanced Hand-push Thermoplastic Road Marking Machine
- 15 Set / Sets per Month
- Any port in china mainland
- T/T Credit Card
- Thermoplastic Road Marking Machine Thermoplastic Line TATU Road Marking Machine For Sale
- TT-C02-RG300 Driving Type Road Making Machine
- TE-700 Driving Type thermoplastic Road Marking Machine
- Engine Walk-up Cold Spray Automatic Cold Paint And Thermoplastic Road Marking Machines Price For Sale
- Airless Line Striper Road Surface Line Marking Machine
- High Quality Parking Lot Striping Machine Hand-Pushed Paint Road Marking Machine
Product Details
Condition: | New | Power(W): | LPG, suggest 30kg gas tank | Place of Origin: | Henan, China |
Brand Name: | Allraising | Model Number: | OR-XMT-F1 | Dimension(L*W*H): | 1160*800*970mm |
Weight: | 120kg | Features: | High-level Thermoplastic road marking machine | Certification: | ISO |
Warranty: | One year |
Product Description

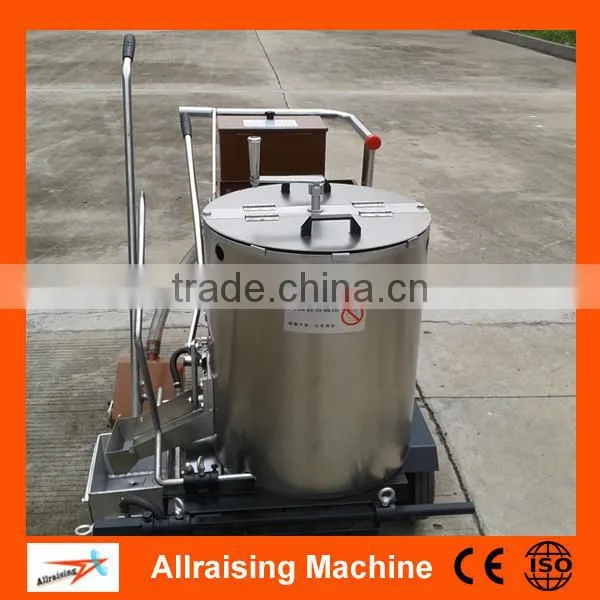

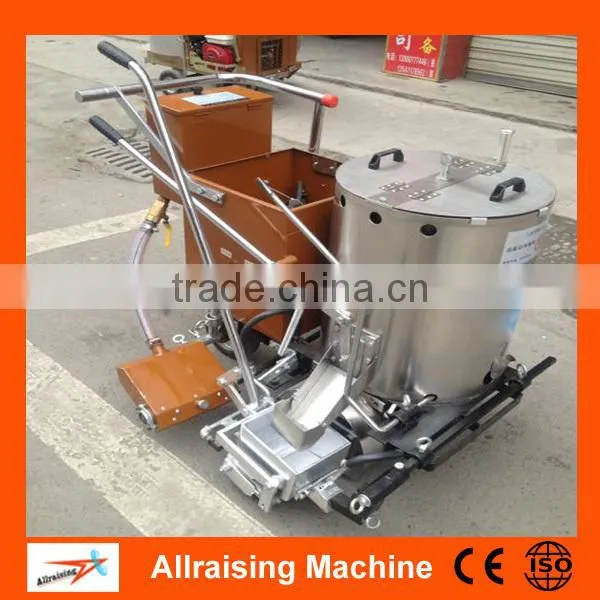

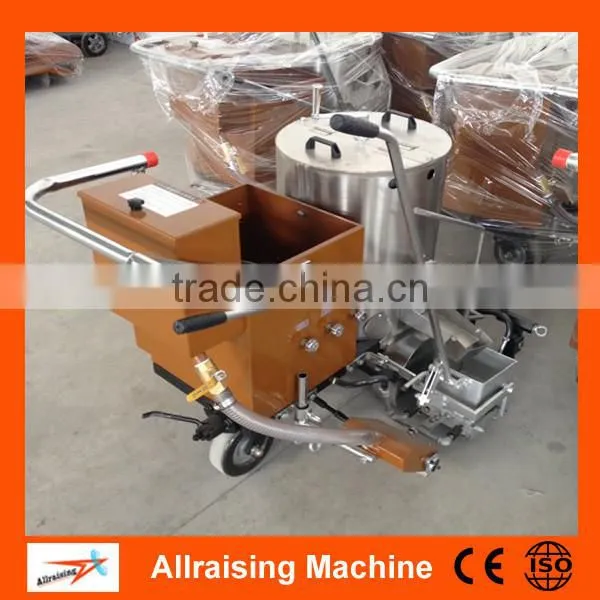

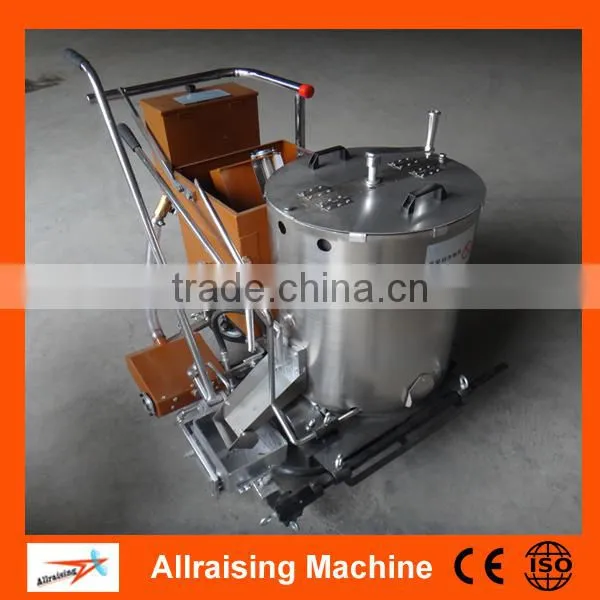

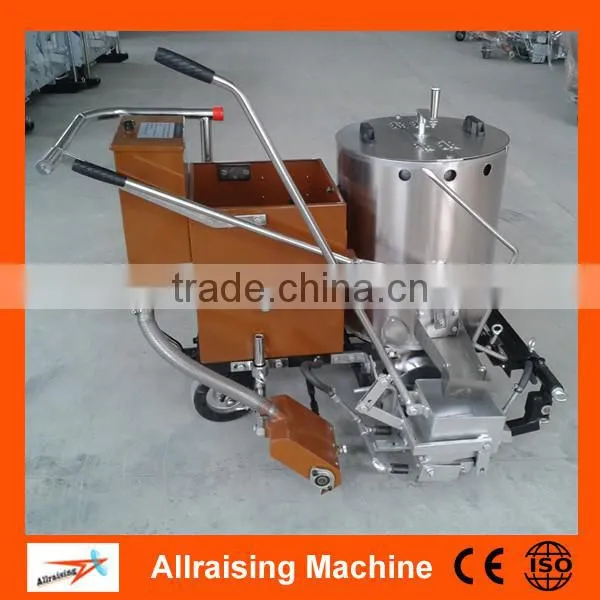

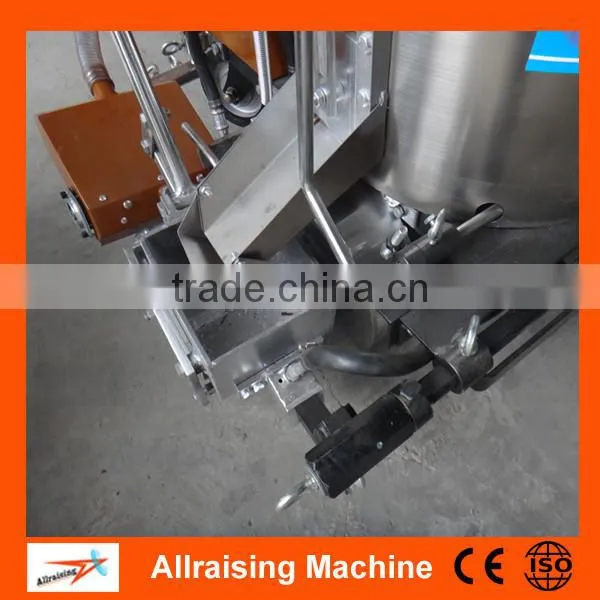

Advanced Hand-push Thermoplastic Road Marking Machine
OR-XMT-F1 High-level hand pushed hot melt marking machine is an important equipment, used in conjunction with hot melt kettle, marking the completion of construction, manufacture of aircraft using special high-precision cast iron bucket line to ensure that the marking line edge is clear and beautiful with regular and homogeneous shape, uniform thickness, linear appearance, landing knife can adapt to different situations of the road surface, glass beads spread complete with automatic speed control buffer devices, devices can be manually shifted curve achieve excellent construction, concrete marking, high-quality construction, construction fast, flexible operation, convenient maintenance and so on.
Specifications of road marking machine
1. Paint barrels: double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices.
2. Glass Bead storage box: 10 kg/box.
3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.

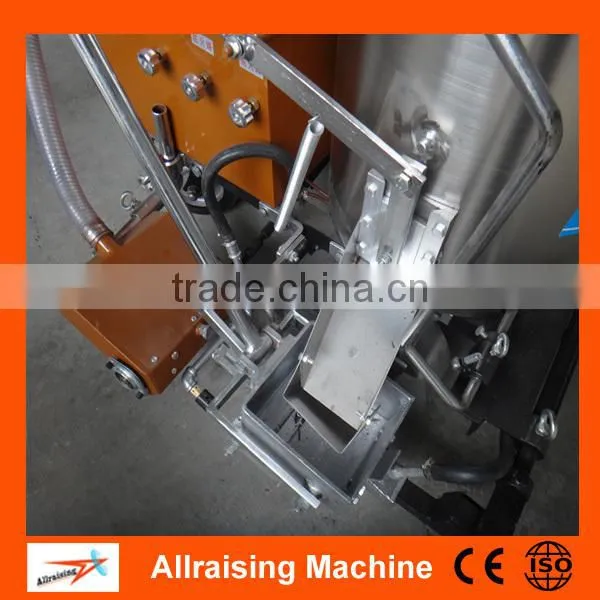

4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.
5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm.

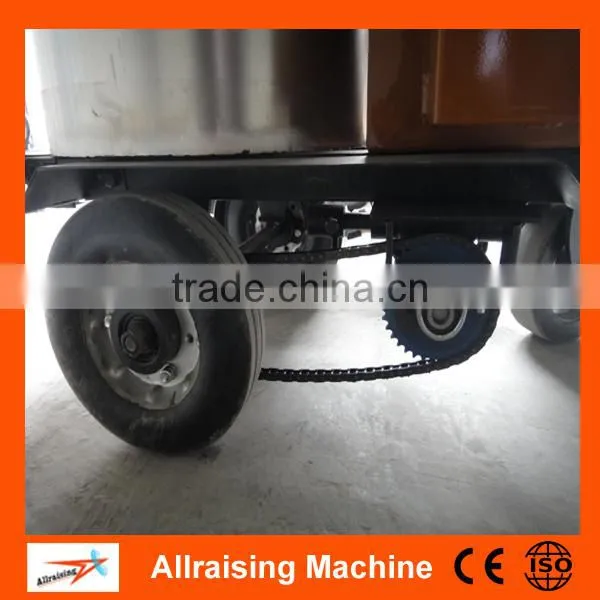

6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.
7. Heating method: liquefied petroleum gas.
8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.
Main Techincal Parameters of road marking machine
Content of Paint container | 100kg |
Line marking wideth | 100/150/200/300mm or adjust to requires |
Line thickness | 1.0-3.0mm |
Speed | 1.5km/h |
Heating Temperature | 180-230°C |
Heating Method | LPG |
Suggest gas tank | 30kg |
Dimension | 1160*800*970mm |
G.W. | 120kg |
Why Choose OR-XMT-F1 High-level Hand Push Thermoplastic Road Marking Machine?
1. The hopper is matched the single handle. So that it is simple and easy to put away the scoop, not easy to leak, easy to operate.

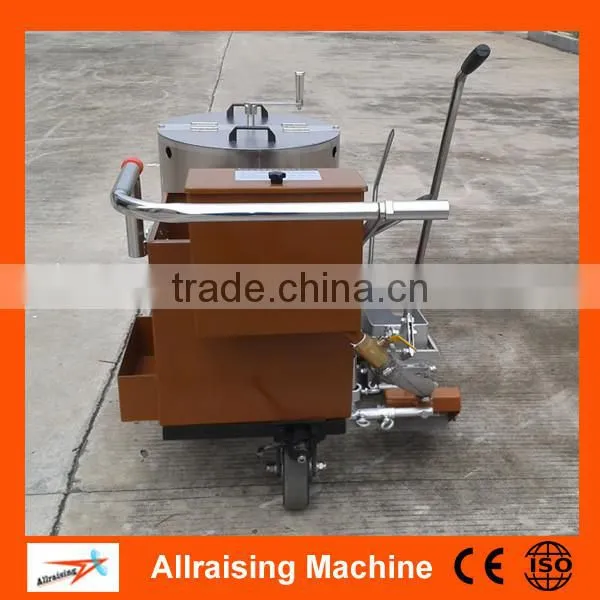

2. The machine is equipped with side armrest, which can ensure the cart direction smoothly, to make crossed the line is straight in construction.
3. The distance between the front two wheels is wide enough. The machine can be pushed forward lightly and smoothly.
4. Glass beads using automatic block area, is equipped with speed control buffer allocation, standard glass bead box has adjustable device, adjustable out 100/150/200/300/400/450mm width of glass beads, ensure that no waste glass beads.
5. Advantage: Use the special manufacturing high precision cast iron hopper, to make sure the marking line edge is clear and beautiful with regular shape and equality thickness.
Applications of road marking machine
Hand push type cold spraying marking machine is special equipment to normal temperature reticule construction. It canbe suitable for roads, highway, parking lot, airport, station, factory line, the company plant area such as marking a straight line, dotted line, curve, zebra crossing, text, arrows, logo, etc.
Packaging & Delivery of road marking machine
Packaging Details: | Paper packing or wooden case or what is required. Case CBM 1. |
Delivery Detail: | 3-5 days after payment |
We also supply thermoplastic road line marking machines:
And road marking remover machine:
Our main thermoplastic road paint preheaters:
Item | Type | Capacity | Engine |
OR-XHD-01 | Hydraulic | 450kg*2 | 15HP |
OR-XHD-02 | Hydraulic | 500kg*2 | 16.5HP |
OR-XHD-03 | Mechanism | 300kg*2 | 8.0 HP |
OR-XHS-01 | Mechanism | 300kg | 6.5HP |
OR-XHS-02 | Hydraulic | 500kg | 6.5HP |
