Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Coaxial Cable RG11
US$ 0.2 - 0.6
MOQ: 30 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TIANJIE
Model Number:
RG11
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
TIANJIE
Model Number
RG11
Specifications
coaxial cable RG111. UL, CE, Rohs, ISO, VDE passed
2. coaxial cable base Lin'an city
3. Top 3 coaxial cable company
Product Description

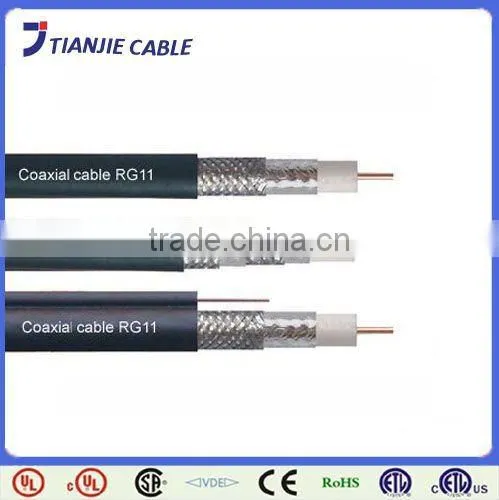

Coaxial Cable RG11
1)Basic Construction
Center Conductor: 1.63mm Solid Copper/Copper Clad Steel
Dielectric: 7.11mmFoam PE
Shield: Al Foil +Al Braiding
Braid Coverage: 40%-95%
Jacket: 10.16mm PVC
Jacket Thick.: 1.07mm
Jelly/APD Per Customer' Special Requirement
2)Basic Characteristics
Impedance: 75± 3 Ohm
Capacitance: 50± 3pF/m
Velocity of Propagation: 85%
Sparker Test: 4000VAC
Return Loss: 20dB min (5-2300MHz)
| Attenuation | [68° F(20 º C)] | |
| Frequency (MHz) | Maximum (dB/100 ft. ) | Maximum (dB/100 m) |
| 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 450 | 2.75 | 9.02 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
