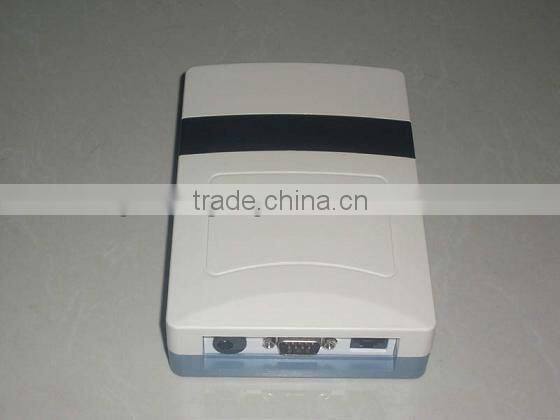

UHF Desktop Reader for Mini 125khz 13.56MHZ Rfid Reader

Hongchangtag Tech-Sci Development Inc.

US$ 10 - 230 MOQ: 1 Set

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

HCT

Model Number:

HCT-UHFR-10800R

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name HCT

Model Number HCT-UHFR-10800R

Specifications

860-960MHz
ISO18000-6C/EPC GEN2 and ISO18000-6B
read/write function
RS232 port

FEATURES

l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l Advanced tag processing algorithm, high identification rate;

l Built-in antenna with effective distance up to 180mm^*;

l Low power dissipation design;

l Optional USB interface;

l Provide Pocket PC/ PDA demo source code.

l Provide DLL and Demonstration Software Source code to facilitate further development.

Technical Parameters

Model	HCT-UHFR-10800R
Frequency Range	902~928MHz frequency band(frequency customization optional)
Protocol	Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
Operation Mode	FHSS or Fix Frequency transmission
Antenna	Built-in wideband antenna
RF Power	30dbm(adjustable)
Reading Mode	Support auto-running and interactive work mode
Reading Range	Max reading 800mm,Max writing 500mm(Effective distance depends on antenna, tag and environment)
Data Ports	SupportRS232 and Wiegand interface
Power Supply	Low power dissipation with single +9V DC power supply;
Dimension	160x110x35mm
Weight	200g
Operation Temp	-10°C~+60°C
Storage Temp	-25°C~+80°C
Reading Clue	Buzzer and LED
