Specifications
1) FC-22X series data radio module2) Frequency: UHF/VHF ISM BAND
3) RF output power: 25W-10mW
4)RS-232, RS-485/TTL
5)IC&FCC

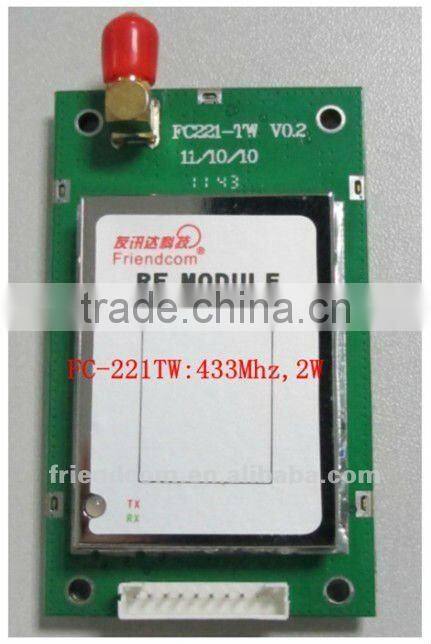

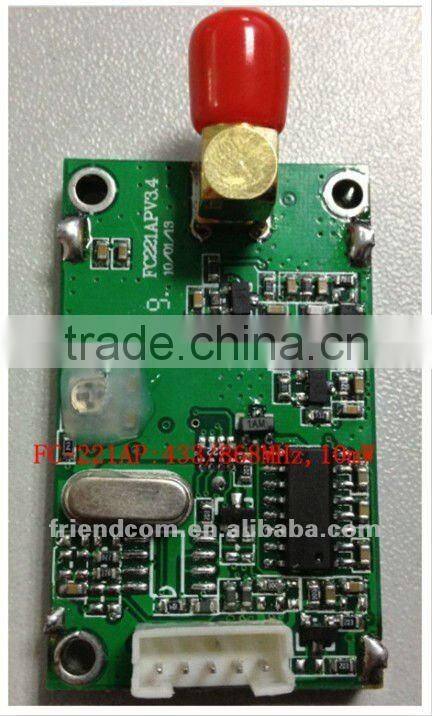

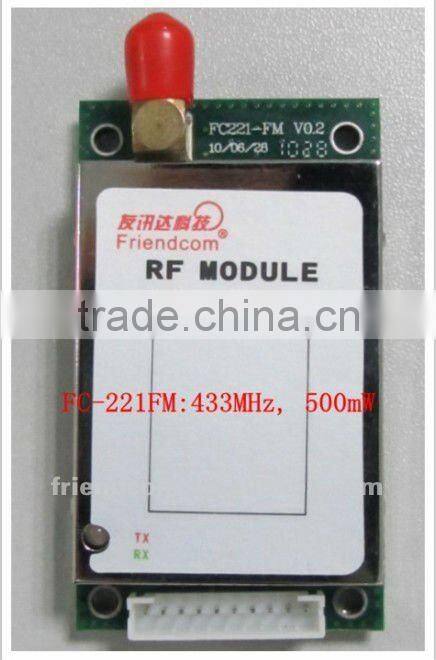

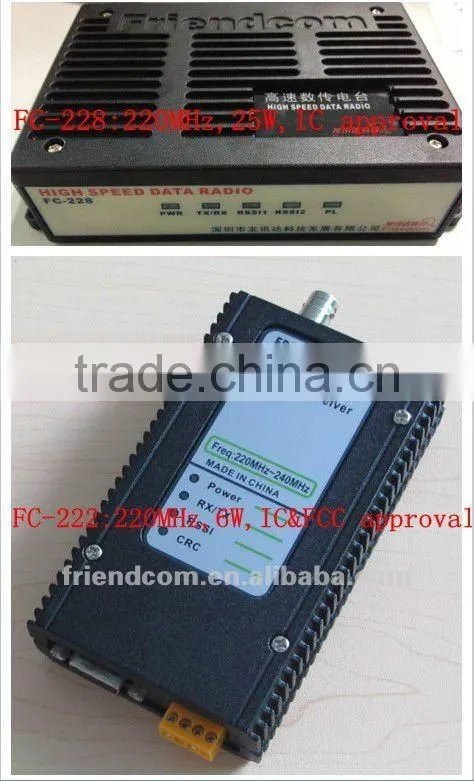

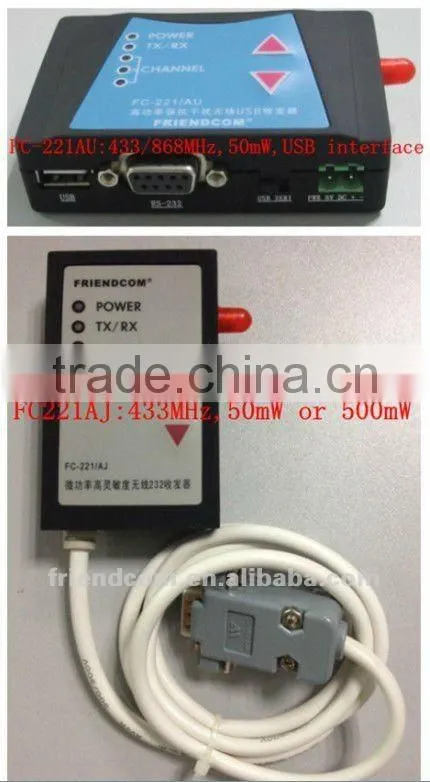

Narrowband Data Radio Module FC-22X series ISM band/ UHF/VHF
Product Description
FC-22X series data radio module is based on narrow-band RFIC. The RF output power from 25W to 10mW is available. It has features of high sensitivity and good anti-interference capability. It can easily implement point to point or point to multi-point long-distance data communication.
Key Features
. Capable to work in VHF/UHF band and ISM band
. High Sensitivity: Adopt high performance narrowband RF IC chip
. Bandwidth 5KHz, 12.5KHz, 18.75KHz and 25KHz optional
. Optional data interface RS-232, RS-485 and TTL
. Optional RF Data rate 1200bps, 2400bps, 4800bps,9600bps,19200bps
. Safe and Reliable data transmission: M series encryption and CRC32 check adopted to ensure safety and reliability of data on air
. Comply with standards ETSI EN300220, FCC Part 15, FCC Part 90, FCC Part 95
Applications
. Telemetry, Remote industry control and automation
. Wireless metering
. Home automation
. Military training device
. LED and street lamp control
. Power load control devices and instruments remote monitor
. Grain depot condition monitor
. Oil exploitation Automation

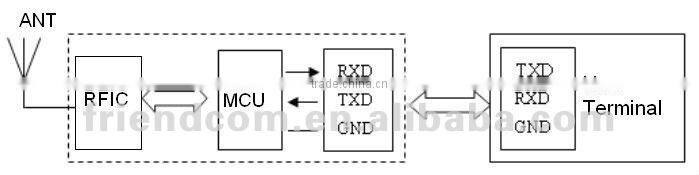

Application Schematic Diagram
FC-22X series Data Radio/Data Module
Send Inquiry to This Supplier
