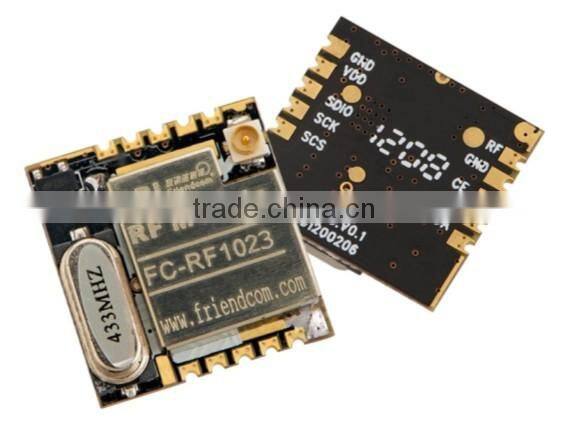

Wireless Remote Control / rf Module 315mhz,433mhz,470mhz,868mhz,915mhz
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Friendcom
Model Number:
FC-RF1023
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
433Mhz RF Module Rx Receiver FC-RF104 With SPINegotiableMOQ: 2 Pieces -
500mW ISM Band Tx-Rx Module With UART Low Cost TransceiverNegotiableMOQ: 2 Pieces
-
ISM RF Module Transceiver Module 20dBm(max) With SPINegotiableMOQ: 3 Pieces
-
Data Fax Voice Modem From FriendcomNegotiableMOQ: 2 Pieces
-
ISM RF Module Transceiver Module 20dBm(max) With SPINegotiableMOQ: 3 Pieces
Place of Origin
Guangdong, China
Brand Name
Friendcom
Model Number
FC-RF1023

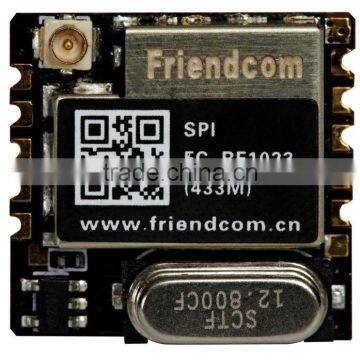

FC-RF1023 433MHz wireless data transceiver
Technical Specification
No. | Items |
1 | Frequency band: 315MHz / 433MHz /470MHz / 868MHz / 915MHz optional |
2 | Operation voltage: DC3V(2.2--3.6V) |
3 | TX current: 90mA @ 20dBm |
4 | RX current: 14mA |
5 | Sleep current: 1uA |
6 | RF output power: maximum 20dBm(0dBm,5dBm,10dBm,15dBm, 20dBm programmable ) |
7 | RF data rate: 250kbps |
8 | Receiver sensitivity: -120dBm@2Kbps Dev = 8K -116dBm@10Kbps Dev = 12.5K -110dBm@50kbps Dev = 18.75K -107dBm@100Kbps Dev = 37.5K -104dBm@150Kbps Dev = 56.25K |
9 | Modulation mode: FSK |
10 | Program interfaces: SPI and IIC digital interface |
11 | Dimension: 18.6×17.55×5mm(Length X width X height) |
12 | Operation temperature: -40°C -- +85°C Storage temperature: -55 °C -- +125°C |
Applications
- Intelligent home control system
- Wireless RFID tag
- Wireless sensor
- POS terminal
- Industrial data transmission
- Automatic data collection system
- Wireless remote control
- Wireless AMR for water, gas and hot, electricity and other meters.
