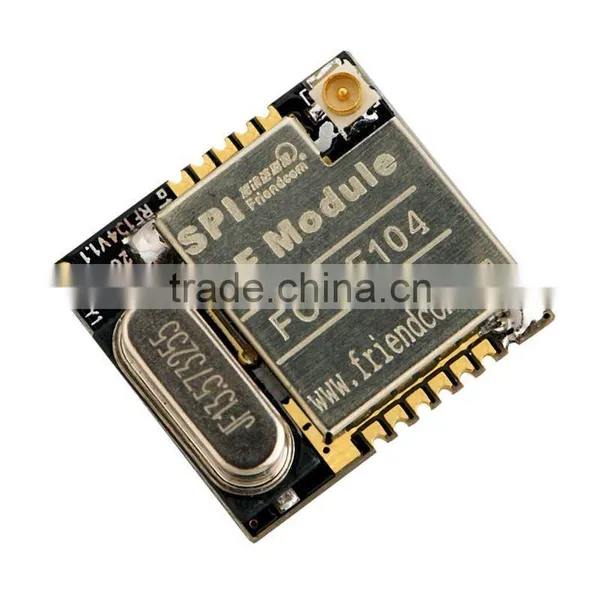

Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 433Mhz RF Module Rx Receiver FC-RF104 With SPI
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
FC-RF104
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500mW ISM Band Tx-Rx Module With UART Low Cost TransceiverNegotiableMOQ: 2 Pieces -
ISM RF Module Transceiver Module 20dBm(max) With SPINegotiableMOQ: 3 Pieces
-
Data Fax Voice Modem From FriendcomNegotiableMOQ: 2 Pieces
-
ISM RF Module Transceiver Module 20dBm(max) With SPINegotiableMOQ: 3 Pieces
-
Data Radio for Australia With CE AS/NZS 4295: 2004 CertifiedNegotiableMOQ: 2 Pieces
Place of Origin
Guangdong, China
Model Number
FC-RF104
Specifications
ISM Band, 433Mhz, Low-cost and small sizeEasy to work with PT2262
FSK/ASK optional
Applications
- Intelligent home control system
- Wireless RFID reader
- Wireless sensor
- Wireless toy
- Wireless remote control
- TPM (Tire Pressure Monitor)
Technical Specifications
| Items | Parameters |
| Work frequency | SPI mode: 420MHz-440MHz |
| Fixed frequency mode: 433.92MHz | |
| Work voltage | DC2.2V-3.3V, typical 2.8V |
| RX current | <10mA |
| Sleep current | <1uA |
| RX sensitivity | -105dBm @20Kbps DEV = 12KHz BER = 1E-3 |
| RF Data rate | Max 20kbps |
| Modulation | FSK / ASK |
| Program interface | SPI digital interface |
| Dimension | 17.6×16.1×5mm(L×W×H ) |
| Work Temperature | -40°C--+85°C |
| Storage Temperature | -55°C--+125°C |
Pin Description
Pin No. | Name | Description |
1 | RF | Antenna port |
2 | RSSI | Analogue output. |
3 | CLK_OUT | Digital output, clock output |
4 | VDD | Power supply |
5 | GND | Grounding |
6 | SPIS | Digital input, control mode selection: 0 for hardware control mode; 1 for SPI control mode |
7 | BAND | Digital input, frequency band choice: 0 for reserve , 1 for 433Mhz. |
8 | SPI_CLK | Digital input, SPI Clock input |
9 | AFSK | Digital input, Modulation selection: 0 for ASK; 1 for FSK |
10 | CE | Digital input, 0 for OFF ; 1 for ACTIVE. |
11 | DATA_OUT | Digital output, Received data output |
12 | GND | Grounding |
