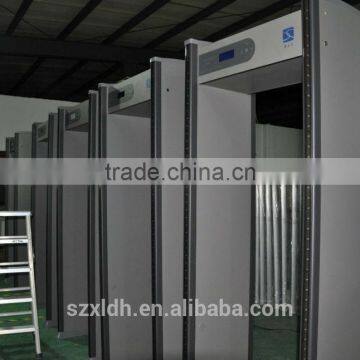

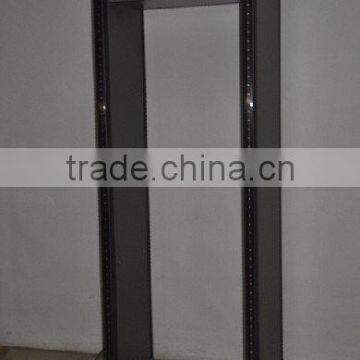

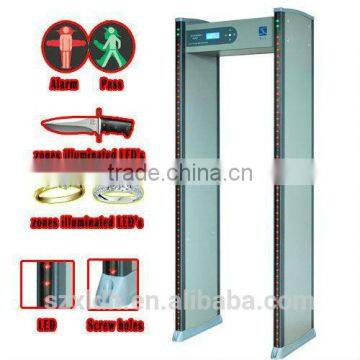

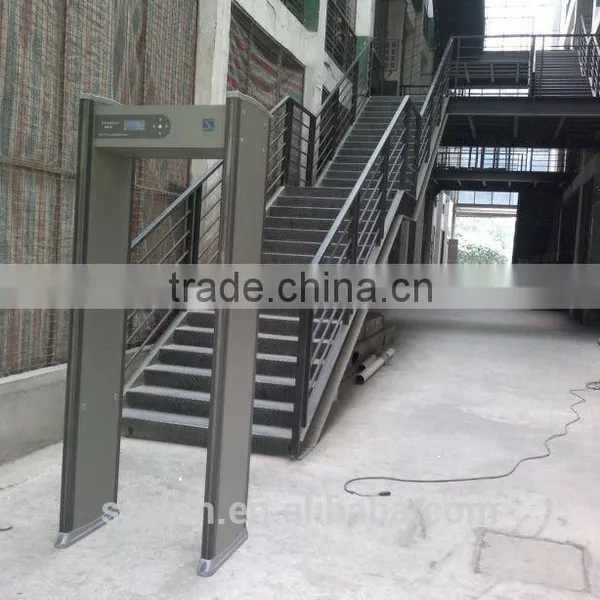

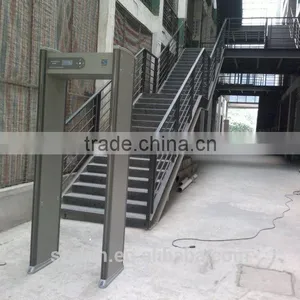

LCD Display Door Frame Metal Detector Body Scanner XLD-E

Walkthrough  metal  detector XLD-E

Technics  The appearance is high density board and metal frame. It is processed by special technics waterproof as well as fireproof.
six detector zones   These six equal parts lap over each other and they can alarm at the same time.
Display  It selects high definition television LCD display.

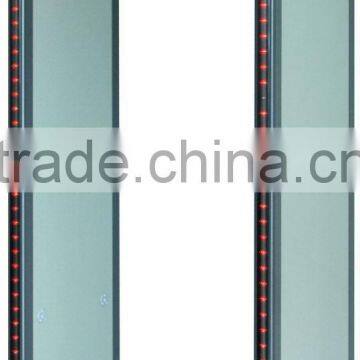

Alarm zone indication   LED indicator lamps are built in the side of every alarm zone. Thus, it is more obvious and accurate to indicate the position where the metal article locates on the people.
Sensitivity of every zone adjustable With a sensitivity range of 0-255, the detector can exclude jewelry, buckle, and metal zipper and so on .At the highest sensitivity, it can detect an article as small as a clip. Strong anti-jamming capability   The system filters and balances signals through digital signal processing technology (DSP) to efficiently avoid distortion and failure.

Operation methods The parameters are adjusted by a remote controller or by manual adjustment on the operation panel.
Alarm tones:There are three options for alarm as high, low and no tones and the length of the tone is adjustable.
Password protection It is set an administrator password exclusive to authorized person. It can prevent modifying parameters by others

 effectively. Other functions  Intelligent statistics depend on the number of people and the times of alarm
Internet access (customize) According to different requirements, a computer can control forty detector doors at the same time.
Parallel network
Several detectors can be put into use in parallel network with a distance merely 35cm.  Safety of the power supply    The power supply is

 at the top of the host. It is every safe. Easy installation    The metal detector door of XLD series is designed as a combination. Thus, it is

easy to install and take down following the concise and understandable instructions.
Harmless  It is harmless to people who have cardiac pacemaker inside and the pregnant woman as well as to magnetic floppy disc and

 magnetic tape.

Places
It is available in hardware factory and electronics factory preventing the lost of metal products, as well as in jail, court, exhibition,

 gymnasium and recreation places for security inspection.
Authentication and standards
A  It is harmless to people who have cardiac pacemaker or else inside and pregnant women as well as to magnetic floppy disc ,

 magnetic tape and videotape.

Technical parameters
Power supply   220V        Consumption power <30w
Workplace environment  -20°C~+45°C
      Overall dimension   2200mm(height)X800mm(width)X500mm(depth)
      Tunnel dimension  2050mm(height)X700mm(width)X500mm(depth)
      Weight of the whole machine   Approximately 65kg
