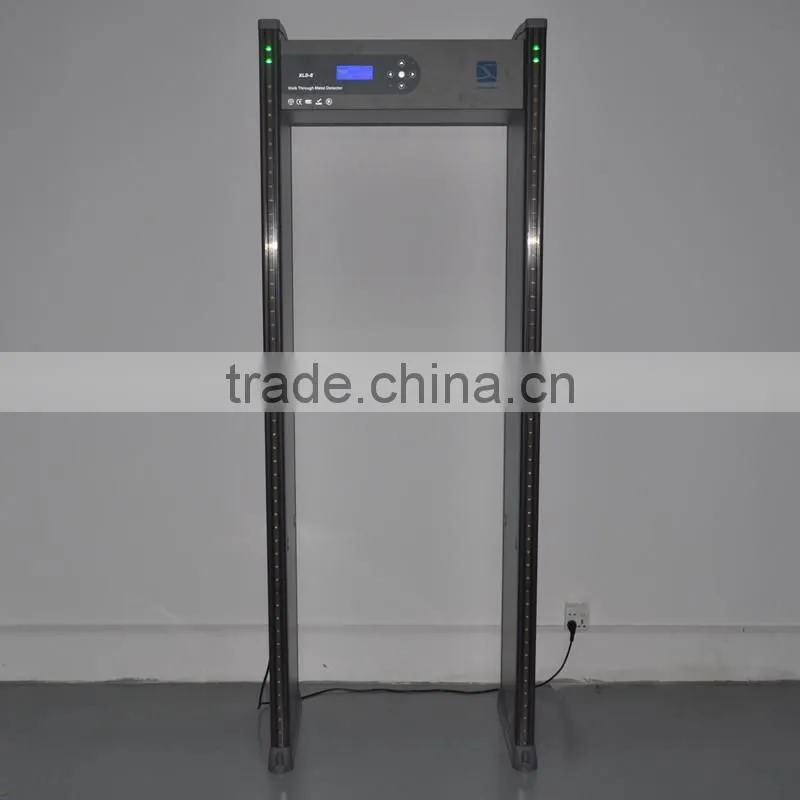

Walkthrough Security Door Frame Metal Detector, Metal Detector Gate XLD-E

Walkthrough security door frame metal detector, metal detector gate XLD-E

The appearance is aluminum alloy and ABS engineering materials. It is processed by special technics waterproof .

Technical parameters:

*Power supply: 110~220V

*Consumption power: <30w

*Workplace environment : -20°C~+45°C

*CTN size: 2200mm(height)X800mm(width)X500mm(depth)

*Tunnel dimension: 2050mm(height)X700mm(width)X500mm(depth)

*Weight of the whole machine: Approximately 70kgs

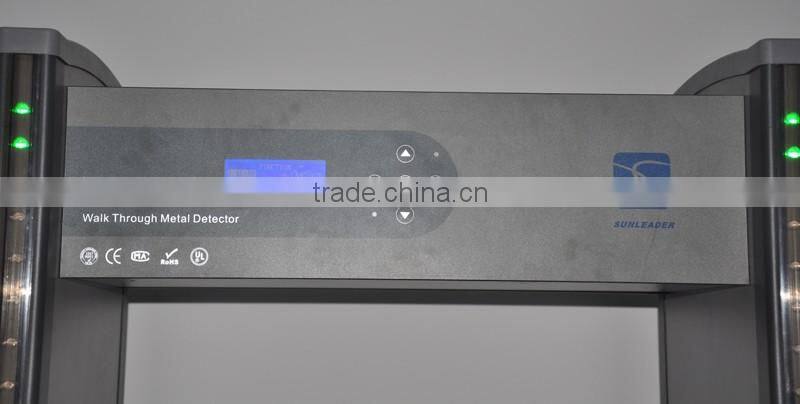

* Display, It selects high definition television LED display as below.

6, 12, 18 detector zones: These 6, 12 ,18 equal parts lap over each other and they can alarm at the same time.

Alarm zone indication: LED indicator lamps are built in the side of every alarm zone. Thus, it is more obvious and accurate to indicate the position where the metal article locates on the people.

Sensitivity of every zone adjustable: With a sensitivity range of 0-256, the detector can exclude jewelry, buckle, and metal zipper and so on .At the highest sensitivity, it can detect an article as small as a clip. Strong anti-jamming capability: The system filters and balances signals through digital signal processing technology (DSP) to efficiently avoid distortion and failure.

Operation methods: The parameters are adjusted by a remote controller or by manual adjustment on the operation panel.

Alarm tones: There are three options for alarm as high, low and no tones and the length of the tone is adjustable.

Other functions:  Intelligent statistics depend on the number of people and the times of alarm

Internet access (customize)

According to different requirements, a computer can control forty detector doors at the same time.

Parallel network

Several detectors can be put into use in parallel network with a distance merely 35cm.

 Places

It is available in hardware factory and electronics factory preventing the lost of metal products, as well as in jail, court, exhibition, gymnasium and recreation places for security inspection.

Authentication and standards

A  It is harmless to people who have cardiac pacemaker or else inside and pregnant women as well as to magnetic floppy disc , magnetic tape and videotape.

B  It accords with"3-GUN TEST"FAA standard and all the NILECJ-0601-00 safety standards.

C  It accords with Electromagnetic Compatibility (EMC) and the rules of EC.

D  It accords with EN55011,FCC on radio interference  and VDE0875 standard.

E  It accords with GB15210-2003.

Pictures:

1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 and CE certificate.
