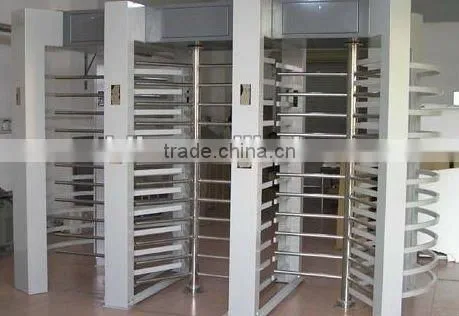

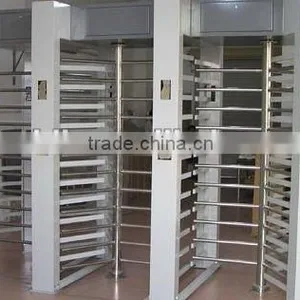

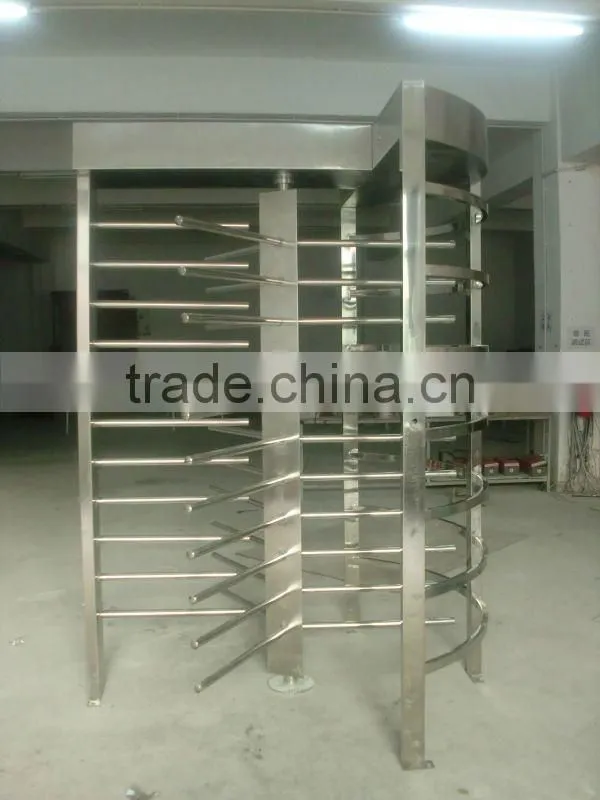

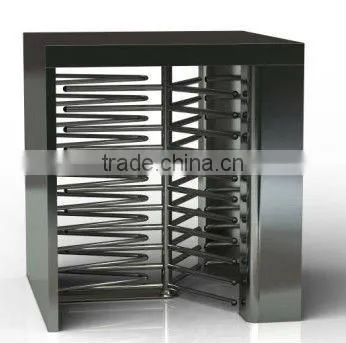

Full height turnstile
Single channel Double channel
FEATURES
1. Available in single walkway or bi-directional passage
2.A valid lock action can allow one passage at one time
3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be set up with the built-in small keyboard or software.
4. Emergency configuration: The central column will be set free when power off to provide a clear walkway for escape in the event of an emergency
5.Anti backup function to prevent reverse rotation once the arm has move 45 degree form home
6.Control panel with count and LED digital function
7.Optional traffic-light: A Red Cross symbol will illuminate to indicate 8.The unit is not available for pass, and a green arrow indicate the direction of allowable pass
TEHCNICAL PARAMETERS
1. Box materials:304 stainless steel
1. Box dimensions: Single channel 1500*1500*2300mm
Double channel 2400*1500*2300mm
2. Brake rod length: 600mm
3. Wight: 350kg-700kg
4. Gate pole shift:one-way or two way
5. Power supply voltage: AC220 ± 10%V, 50HZ
6. Interface: one standard port-RS485
7. Working Environment: Indoor/Outdoor.
8. Transit speed: 30-40 persons per minute
9. Working environment: indoor or outdoor
10. Temperature: -10 Celsius to 50 Celsius
11. Relative humidity:≤90% no condensation
