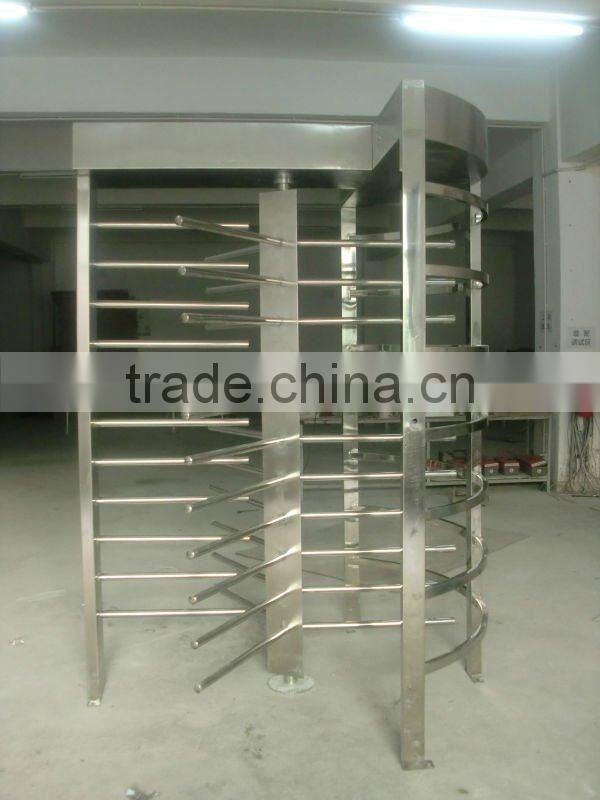

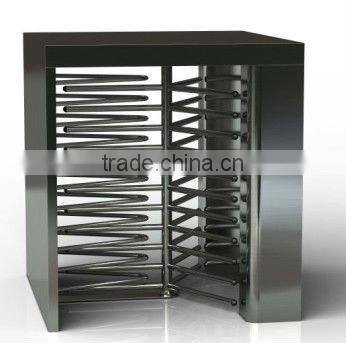

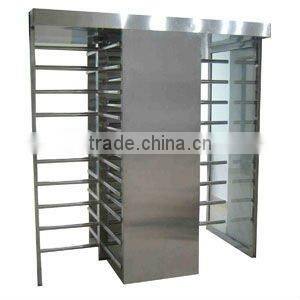

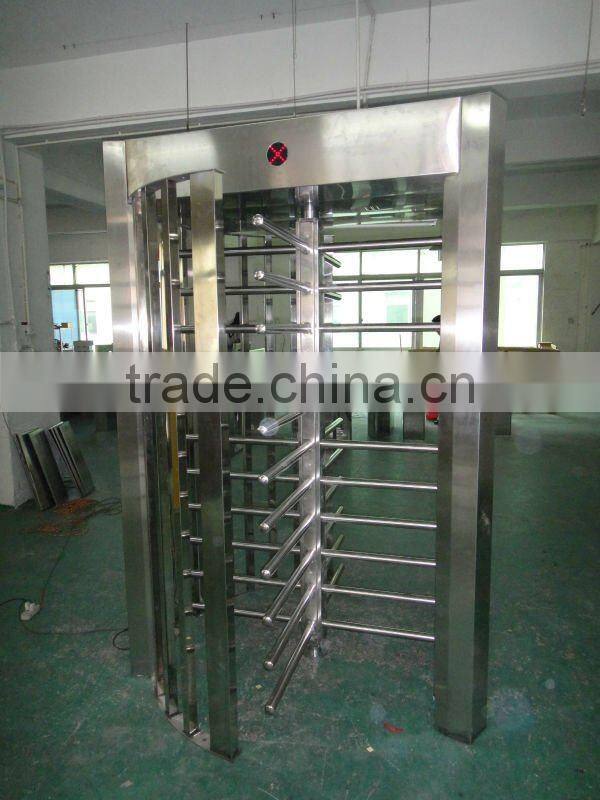

Hot Selling Stainless Steel Single Channel Access Control System Full Height Turnstile

Hot selling Stainless steel single channel access control system full height turnstile

Features:

1. Available in single walkway or bi-directional passage

2.A valid lock action can allow one passage at one time

3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be set up with the built-in small keyboard or software.

4. Emergency configuration: The central column will be set free when power off to provide a clear walkway for escape in the event of an emergenc.

5.Anti backup function to  prevent reverse rotation once the arm has move 45 degree form home.

6.Control panel with count and LED digital function.

7.Optional traffic-light: A Red Cross symbol will illuminate to indicate 8.The unit is not available for pass, and a green arrow indicate the direction of allowable pass.

Technical Parameters

1. Box materials:304 stainless steel

2. Box dimensions: Single channel 1500*1500*2300mm

                                  Double channel 2400*1500*2300mm

3. Brake rod length: 600mm

4. Weight: 350kg-700kg

5. Gate pole shift:one-way or two way

6. Power supply voltage: AC220 ± 10%V, 50HZ

7. Interface: one standard port-RS485

8. Working Environment: Indoor/Outdoor

9. Transit speed: 30-40 persons per minute

10. Working environment: indoor or outdoor

11. Temperature: -10 Celsius  to 50 Celsius

12. Relative humidity:≤90% no condensation

1. What is the minimum order quantity?

The MOQ is 1 piece.

2. What is the lead time?

3-5days after T/T payment, for other products please contact us for details.

3. What is the payment term?

The payment term is T/T,Western Union
