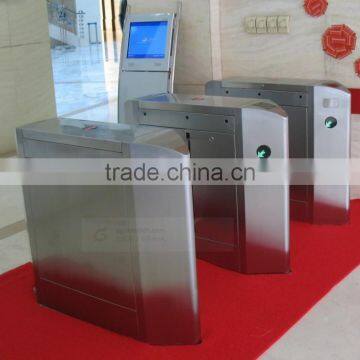

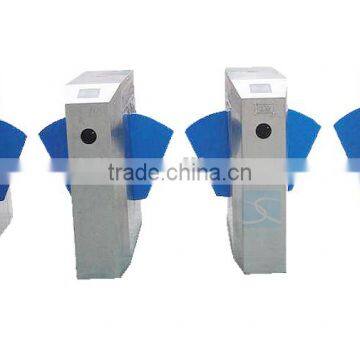

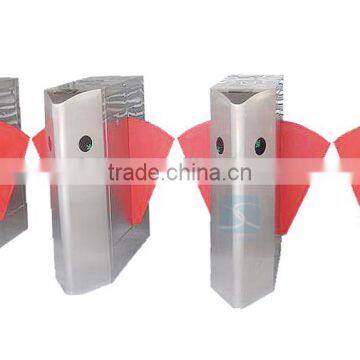

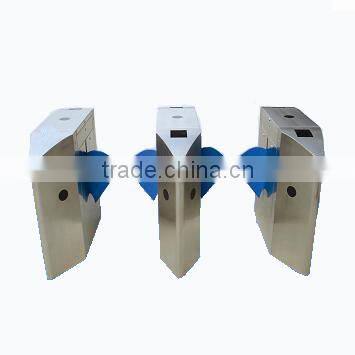

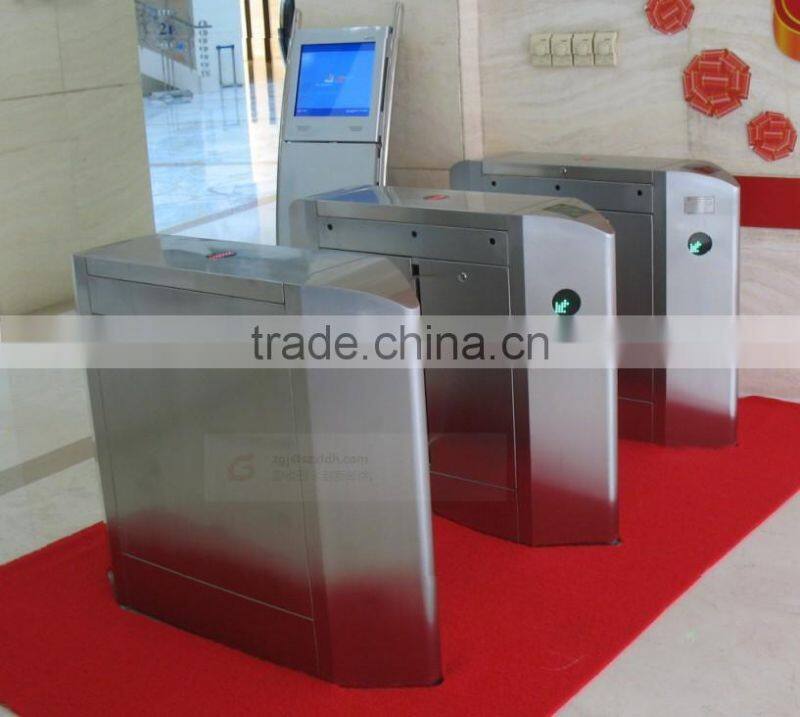

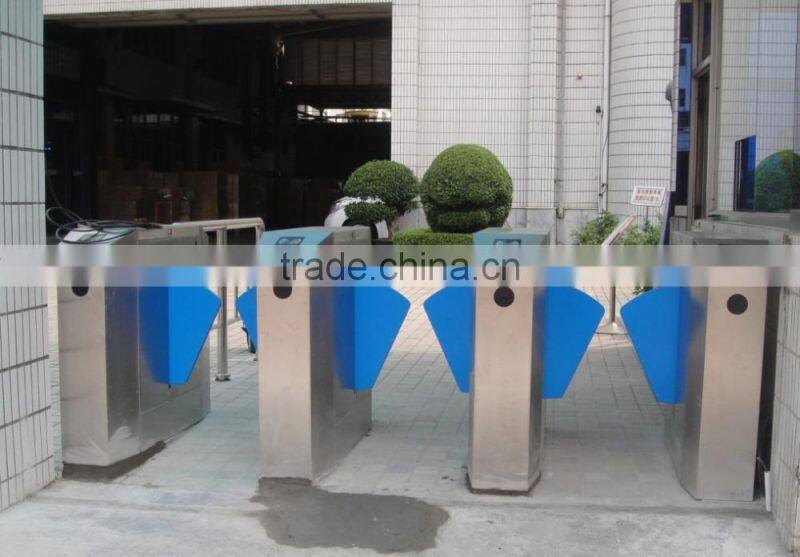

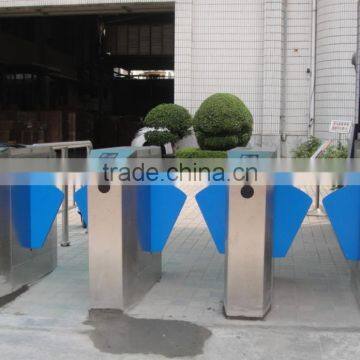

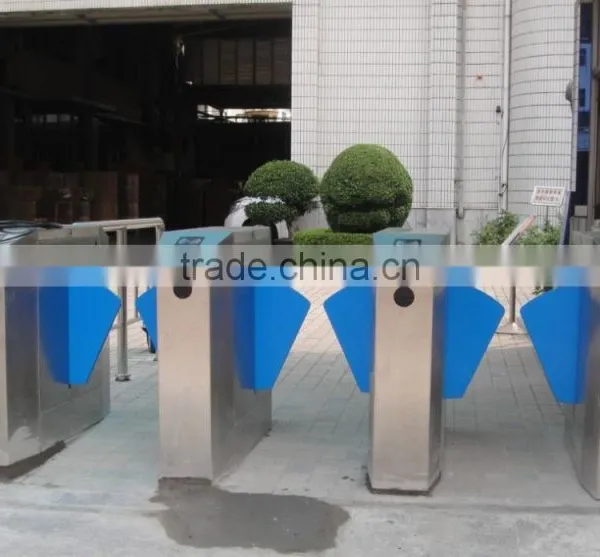

Swing Gate With Stainless Steel and Multi Devices Interconnecting Using RFID Card
XLD-YZ001 swing gate
with stainless steel and multi devices interconnecting using RFID card
Specifications:
Framework maerial: | GB 304 grade stainless steel |
Framework size: | Bridge-type round |
Angle: | L1200×W300×H1000(mm) |
Length of the arms: | 250mm |
Wideth of the channel: | 600mm(standard) |
Working voltage: | AC220±10% V, 50±10% Hz |
Diving electromotor: | DC brush electromotor 24V |
Input interface: | Dry contact signal or +12V level signal or DC 12V pulse signal with width of more thatn 100ms,driving current > 10mA |
Normal life-span: | 3 million times |
Communication interface: | RS 485(standard) |
Transit speed: | 30-40 person/min |
Card reader windows: | 4 pcs |
Maintenance windows | 4 pcs |
Time for opening or closing: | 1 Second |
Starting time after power on: | 3 Senconds |
Automatic reset time after fault: | 10 Sconds |
Working environment: | Indoor, outdoor (with a tent over) |
Temperature: | -10℃ - 50℃ |
Relative humidity: | ≤90%, no condensation |
Description:
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the small keyboard in the main board
3. Preventing pedestrians or bicycle from being nipped and from hurt, the force of the
pole is less than 2Kg
4. Sound or light alarm function
5. Poles are automatically locked until a opening signal is received.
6. Poles synchronization
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
8, Channels automatically open when power off, and automatically close when power on.
9, Several card reading devices are attachable.
10, One direction or bi-direction control are optional.
11, It can be directly controlled and managed by remote control.
Main Advantages:
1. Normal life-span:3 million times
2. Time for opening or closing: 1 Second
3. Starting time after power on: 3 Senconds
4. Automatic reset time after fault: 10 Sconds
Application places:
Subway station , Company and any other palce where need to detect the identification.
General Information:
Place of Origin | Shenzhen, China |
Brand Name | Sunleader |
Model Number | XLD-YZ001 |
Certification | ISO9001: 2008 |
Commerce clauses:
MOQ | 1 SET |
Price | EXW USD / SET. There will be discount for large quantity orders. |
Packaging Details | Standard export packing with great protection |
Delivery Time | 3-15 working days |
Payment Terms | By T/T, Western Union, cash |
Supply Ability | Depend on the quantity of the order |
Warranty time | One year |
