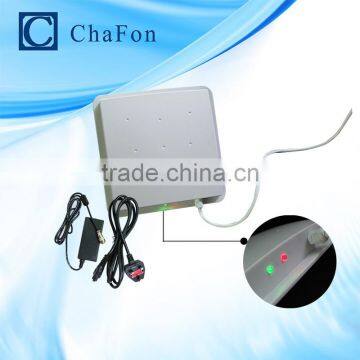

Vehical management 7dbi build in integrated uhf reader rfid
Product description
RU5106 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Product model explanation
Model | Interface |
CF-RU5106 | Standard(RS232, RS485, Wiegand) |
CF-RU5106T | Standard with tcp/ip |
CF-RU5106w | Standard with Wifi |
| CF-RU5106TW | Standard with WIFI,TCP/IP |
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 8dbi antenna with effect distance up to 6m~8m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9V DC power supply;
9. Support RS232, RS485, Wiegand interface;
Characteristics
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | ℃ |
Storage Temp. | TSTR | -20~+75 | ℃ |
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 350 | 650 | mA | |
Frequency | FREQ | 902 | 928 | MHz |
Interface
ITEM | Comment |
Red | +9V |
Black | GND |
| Yellow | Wiegand DATA0 |
| Blue | Wiegand DATA1 |
| Purple | RS485 R+ |
| Orange | RS485 R- |
| Brown | GND |
| White | RS232 RXD |
Green | RS232TXD |
| Grey | Trigger input(TTL level) |
Other Support
1.Come with the completed English SDK,demo software,user manual and source code,
and these documents will help you develop the software for your application.
2.When you buy our reader,we will provide free card or tag to you for testing .
More information about this product,please visit follow link:
Reader: /productdetails.aspx?pid=382
Compatible tag: /product.aspx
1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and UHF three frequency.
3. What is your advantage?
We are professional RFID hardware solution provider, we have strong technical team
can provide after sale technical support online,also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
