RS232 RS485 TCPIP for warehouse,animal,logistic etc application management multi port rfid reader
Product Description

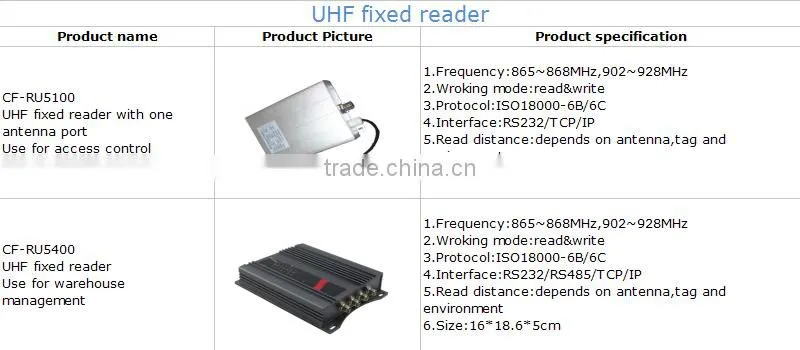

CF-RU5400 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
1. Self-intellectual property;
2. Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
3. 865~868MHz,902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 4 TNC antenna port;
7. Support auto-running, answer and trigger work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, TCPIP with other interface optional;
10. Built-in LED, Buzzer, GPIO and Relay;
11. High reliability design.
Parameter
1.Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | °C |
Storage Temp. | TSTR | -20~+75 | °C |
2.Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 600 | 1500 | mA | |
Frequency | FREQ | 902 | 928 | MHz | |
Size | Size | 160x186x50 | mm |

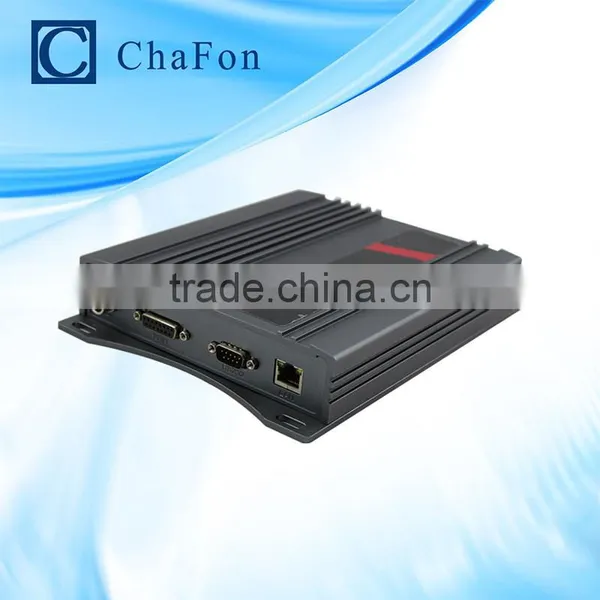

3.Interface
1.Power (DC JACK)
No. | Symbol | Comment |
Central | PWR | +9VDC |
Outer | GND | Ground |
2.GPIO (DB15 Female)
No. | Symbol | Comment |
1 | Output1 | General Output1 |
2 | Output2 | General Output2 |
3 | Output3 | General Output3 |
4 | Output4 | General Output4 |
5 | Output5 | General Output5 |
6 | Output6 | General Output6 |
7 | Output7 | General Output7 |
8 | Output8 | General Output8 |
9 | TGIN | Trigger input with internal pull-up to 5V through a 10k resistor |
10 | R+ | R+ of RS485 |
11 | R- | R- of RS485 |
12 | GND | Signal Ground |
13 | NO | Normal-Open terminal of internal relay |
14 | NC | Normal-Close terminal of internal relay |
15 | CM | Common terminal of internal relay |
3.Serial communication port RS232 (DB9 Male)
No. | Symbol | Comment |
1 | nc | Reserved |
2 | TXD | General Output2 |
3 | RXD | General Output3 |
4 | nc | Reserved |
5 | GND | Ground |
6 | nc | Reserved |
7 | nc | Reserved |
8 | nc | Reserved |
9 | nc | Reserved |
4.TCPIP network (RJ45)

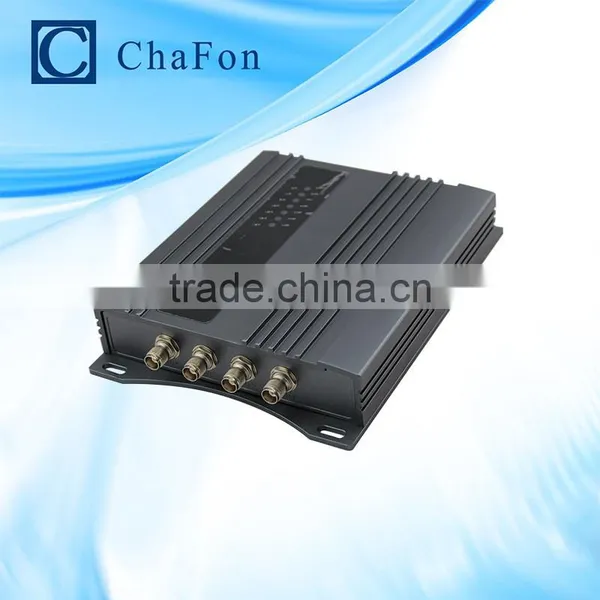

5.TNC antenna port ANT1~ANT4
6.LED indicator LED1~LED7
No. | Symbol | Comment |
1 | LED1 | Antenna 1 active indicator |
2 | LED2 | Antenna 2 active indicator |
3 | LED3 | Antenna 3 active indicator |
4 | LED4 | Antenna 4 active indicator |
5 | LED5 | Tag-detected indicator |
6 | LED6 | Command-executing indicator |
7 | LED7 | Power-on indicator |

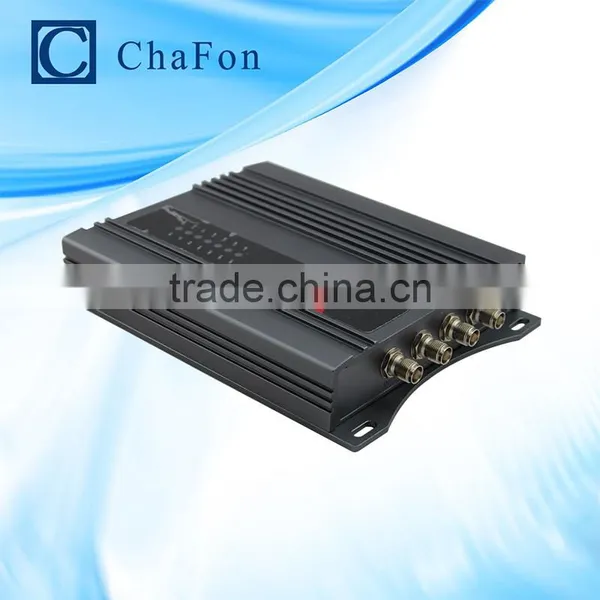

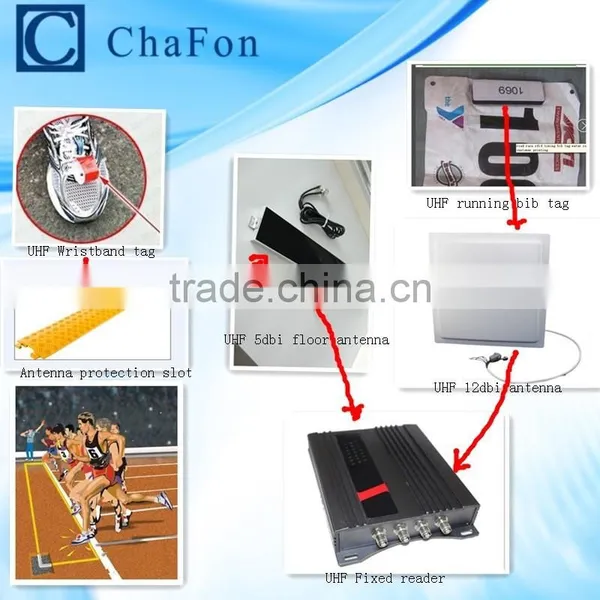

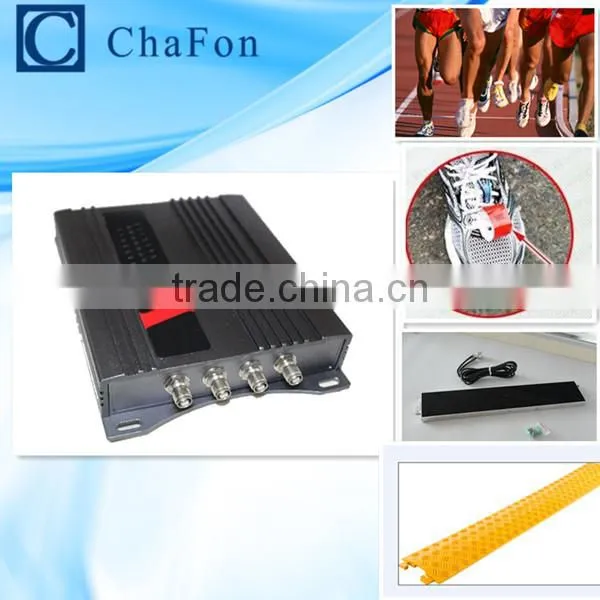

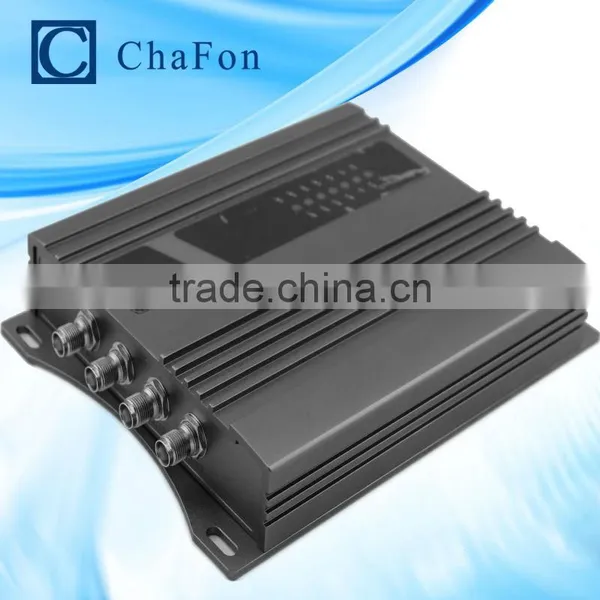

This is a UHF fixed reader,come with four antenna ports,can connect with four UHF antennas at the same time,mainly used for logistic,warehouse management,for these application,mainly use the 7dBi antenna to connect,the read range can up to 3~6m if use our standard UHF cards or tags at the normal environment.
About the specific datasheet information of 7dBi antenna,,please come to below link to check:
/productdetails.aspx?pid=416
The reader come with the completed English SDK,demo software,user manual and source code,and these documents will help you develop the software.
When you buy our device,we can provide some free card and tag to you for distance testing.
1. Are you manufacturer?
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
