program the information into tags rfid uhf desktop reader

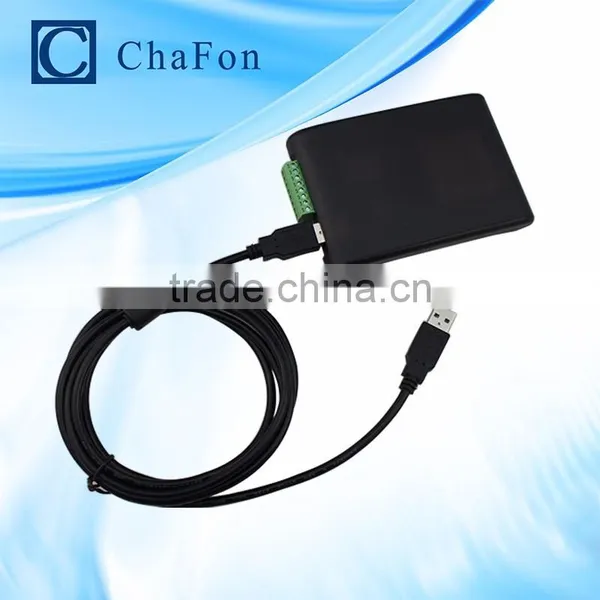

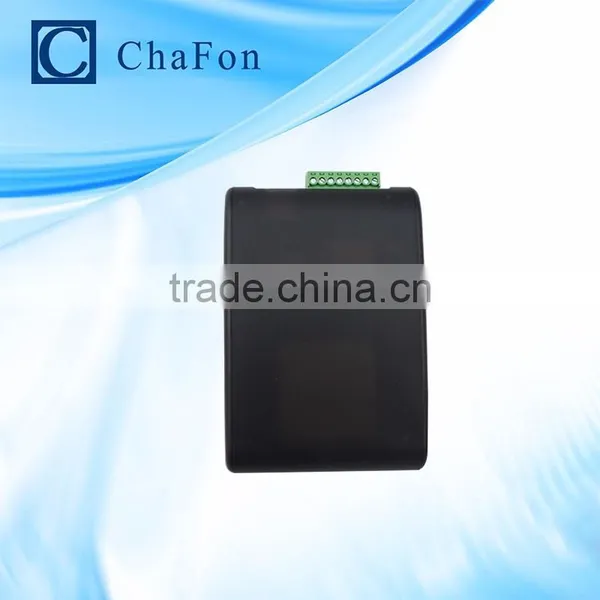

CF-RU5202 is a high performance UHF RFID reader. It is designed upon dedicated RFID Engine ASIC with fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
Self-intellectual property;
Support ISO18000-6C(EPC C1G2) protocol tag;
902~928MHz or 865~868MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission
Multiple tag anti-collision>50pcs/s;
Multiple tag inventory speed>50pcs/s;
Tag buffer size: 370PCS @ Max.128bitsEPC or 120PCS @ Max.496bitsEPC;
Low power dissipation with USB power source or external single +9 DC power supply;
Support RSSI;
Support 2 GPIO;
Support USB (VSP mode), RS232 and USB HID (keyboard emulation)
High reliability design without extra heat-sinking measure;
Support on-the-site firmware upgrading.

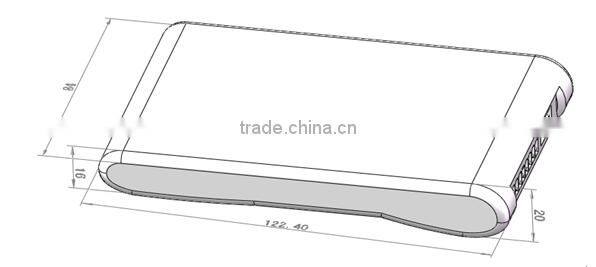

MECHANICAL DATA(UNIT mm)
CHARACTERISTICS
Absolute Maximum Rating
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC (USB power source) |
6 |
V |
VCC(External power source) |
12 |
||
Operating Temp. |
TOPR |
-10~+70 |
℃ |
Storage Temp. |
TSTR |
-20~+85 |
℃ |
Electrical Specification
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC (USB powered) |
4.5 |
5 |
5.5 |
V |
VCC (External supply) |
7 |
9 |
12 |
V |
|
Current dissipation |
IC |
|
180 |
200 |
mA |
Frequency* |
FREQ |
902 |
|
928 |
MHz |
RF power |
PRF |
0 |
|
26 |
dBm |
|
RF power Accuracy |
AP |
|
+/-1 |
|
dB |
|
RF power Flatness |
FP |
|
+/-0.2 |
|
dB |
|
Receiving Sensitivity |
SR |
|
-70 |
|
dBm |
Size |
L×W×H |
|
122.4*84*20 |
|
mm |
INTERFACE

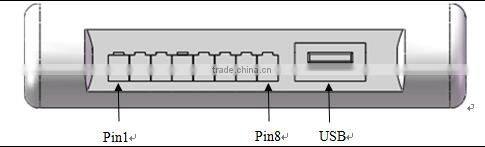

1. Socket Definition
No. |
Symbol |
Comment |
1 |
VCC |
External +9V power supply |
2 |
GND |
Ground |
3 |
TXD |
RS-232 serial data output |
4 |
RXD |
RS-232 serial data input |
5 |
GND |
Ground |
6 |
GPIO1 |
GPIO1 or Wiegand Data 0 |
7 |
GPIO2 |
GPIO2 or Wiegand Data 1 |
8 |
GND |
Ground |
1. Switch Definition
| | ||
No. |
Symbol |
Comment |
1 |
SEL_USB |
Switch on to enable USB interface |
2 |
SEL_USB |
|
3 |
SEL_RS232 |
Switch on to enable RS232 interface |
4 |
SEL_RS232 |
|
Reader&writer, we will provide SDK, demo software and user manual, you can use the demo software to read&write.
