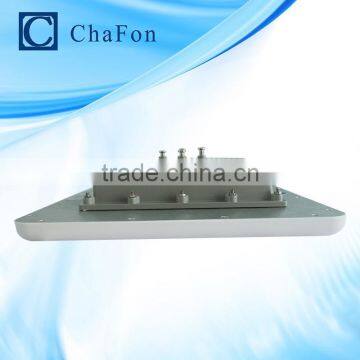

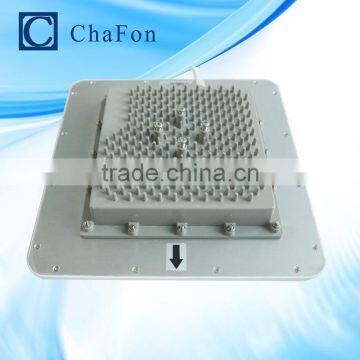

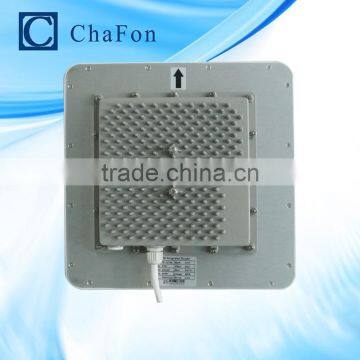

R2000 Integrated Rj45 Rfid Uhf Reader

R2000 Integrated rj45 rfid uhf reader

General Description

    CF-RU5208 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

Features

Self-intellectual property;

Design based on Impinj R2000 with excellent anti-collision performance;

Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

Frequency band(frequency customization optional)860~865Mhz or 902~928Mhz;

FHSS or Fix Frequency transmission;

RF output power up to 30dbm(adjustable);

Built-in high performance 8dbi circular antenna with effect distance up to 10m;

Support auto-running, interactive and trigger-activating work mode;

Wide power supply voltage input (+9V~+24V);

Support RS232, RS485, Wiegand, TCPIP interface;

IP67 seal grade housing, ideal for applications in harsh outdoor environment;

* Effective distance depends on antenna, tag and environment.

Characteristics

Absolute Maximum Rating

Electrical and Mechanical Specification

Under TA=25℃,VCC=+9V unless specified

Interface
