animal management UHF animal ear tag rfid reader
Product Description

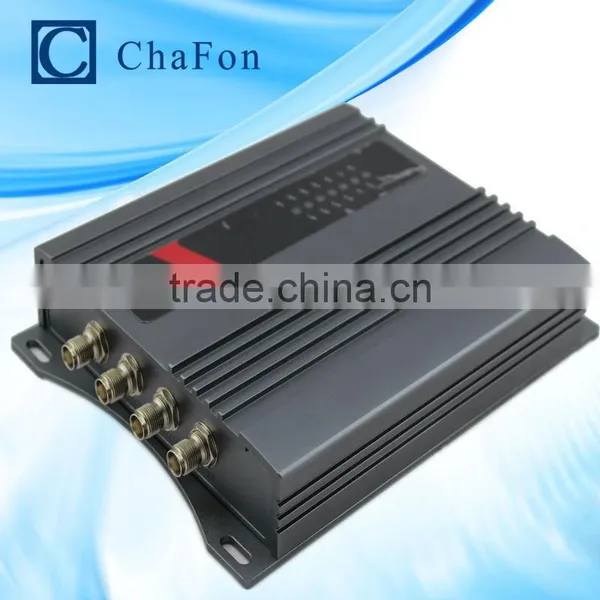

CF-RU5400 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
1. Self-intellectual property;
2. Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
3. 865~868MHz,902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 4 TNC antenna port;
7. Support auto-running, answer and trigger work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, TCPIP with other interface optional;
10. Built-in LED, Buzzer, GPIO and Relay;
11. High reliability design.
Parameter
1.Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | °C |
Storage Temp. | TSTR | -20~+75 | °C |
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 600 | 1500 | mA | |
Frequency | FREQ | 902 | 928 | MHz | |
Size | Size | 160x186x50 | mm |
No. | Symbol | Comment |
Central | PWR | +9VDC |
Outer | GND | Ground |
No. | Symbol | Comment |
1 | Output1 | General Output1 |
2 | Output2 | General Output2 |
3 | Output3 | General Output3 |
4 | Output4 | General Output4 |
5 | Output5 | General Output5 |
6 | Output6 | General Output6 |
7 | Output7 | General Output7 |
8 | Output8 | General Output8 |
9 | TGIN | Trigger input with internal pull-up to 5V through a 10k resistor |
10 | R+ | R+ of RS485 |
11 | R- | R- of RS485 |
12 | GND | Signal Ground |
13 | NO | Normal-Open terminal of internal relay |
14 | NC | Normal-Close terminal of internal relay |
15 | CM | Common terminal of internal relay |
No. | Symbol | Comment |
1 | nc | Reserved |
2 | TXD | General Output2 |
3 | RXD | General Output3 |
4 | nc | Reserved |
5 | GND | Ground |
6 | nc | Reserved |
7 | nc | Reserved |
8 | nc | Reserved |
9 | nc | Reserved |
No. | Symbol | Comment |
1 | LED1 | Antenna 1 active indicator |
2 | LED2 | Antenna 2 active indicator |
3 | LED3 | Antenna 3 active indicator |
4 | LED4 | Antenna 4 active indicator |
5 | LED5 | Tag-detected indicator |
6 | LED6 | Command-executing indicator |
7 | LED7 | Power-on indicator |
Application:
This reader can connect with UHF antenna,used for animal management,warehouse management,asset management etc application.
1. Are you manufacturer?
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
