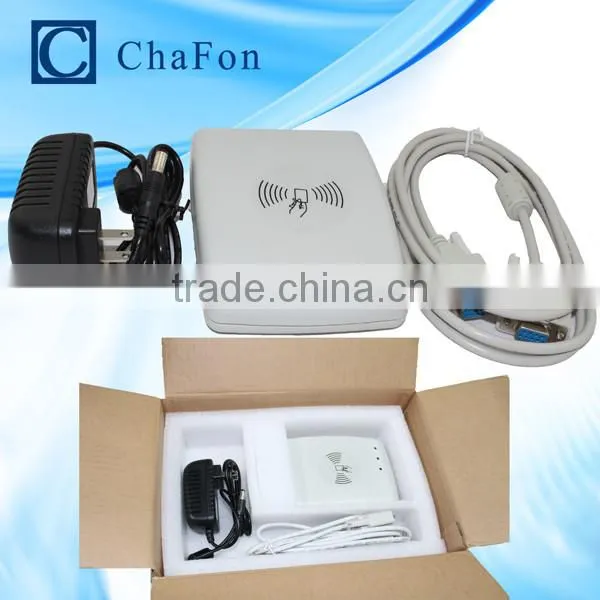

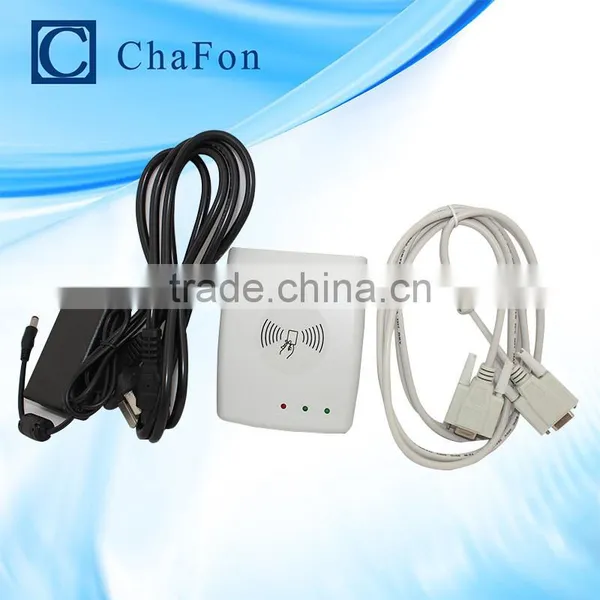

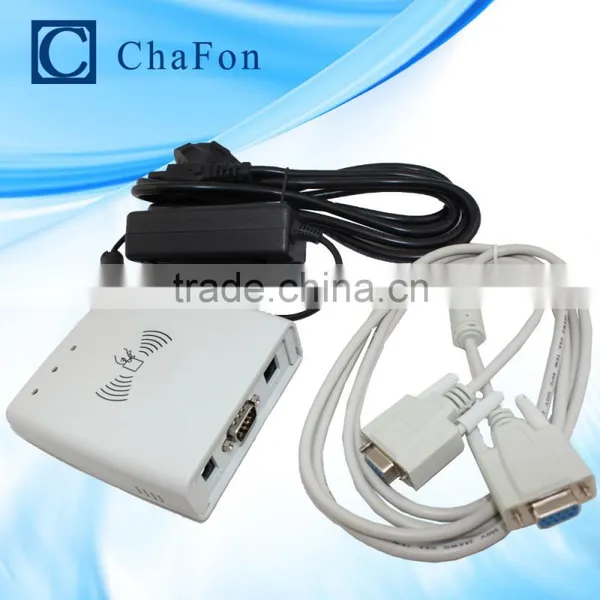

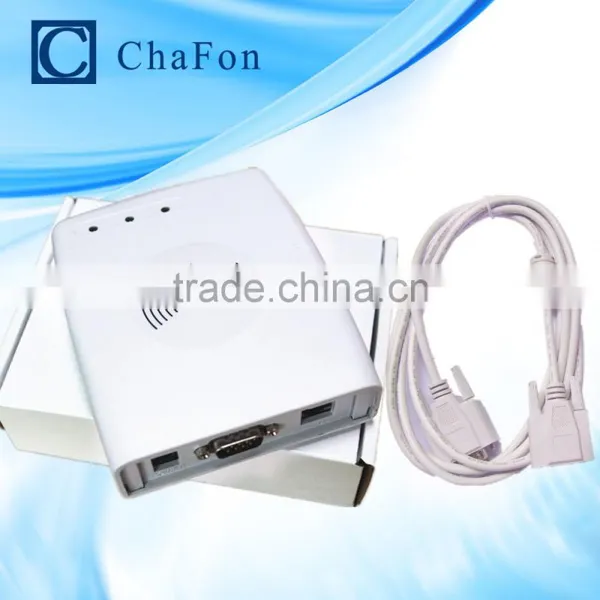

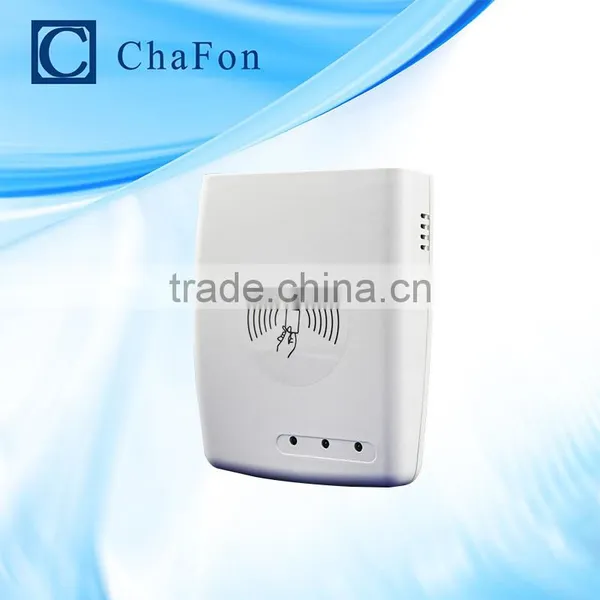

Provide SDK,demo software,source code and user manual,with sample cards,USB interface uhf card reader
Product Description
Model | Interface |
CF-RU5103 | RS232 |
CF-RU5103T | RS232 and TCP/IP |
CF-RU5103 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Features
1.Self-intellectual property;
2.Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3.902~928MHz/865~868Mhz frequency band(frequency customization optional);
4.FHSS or Fix Frequency transmission;
5.RF output power up to 30dbm(adjustable);
6.Built-in wideband antenna with effect distance up to 50~90cm*;
7.Support auto-running and interactive work mode;
8.Low power dissipation with single +9V DC power supply;
9.Support RS232 interface;
10.Output format and parameters configurable;
11.Provide SDK and demo software to facilitate further development.
* Effective distance depends on protocol, tag and environment
DB9 Male | ||
Pin | Symbol | Comment |
1 | NC | Reserved |
2 | TXD | TXD of RS232 |
3 | RXD | RXD of RS232 |
4 | NC | Reserved |
5 | GND | GND |
6 | WD0 | Wiegand data0 |
7 | NC | Reserved |
8 | WD1 | Wiegand data1 |
9 | GND | GND |
Parameter
1.Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 15 | V |
Operating Temp. | TOPR | -10~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
2.Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 6 | 9 | 12 | V |
Current Dissipation | IC | 400 | 700 | mA | |
Frequency | FREQ | 902 | 928 | MHz | |
Effective Distance* | Dis | 0 | 100 | 500 |
* Effective distance depends on protocol, tag and environment.
Application
attendance and access control system
1. Are you manufacturer?
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
