with 7dbi antenna bulid in 860-960mhz passive rfid reader

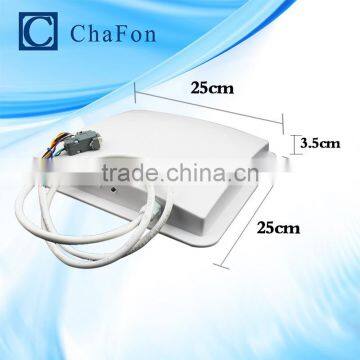

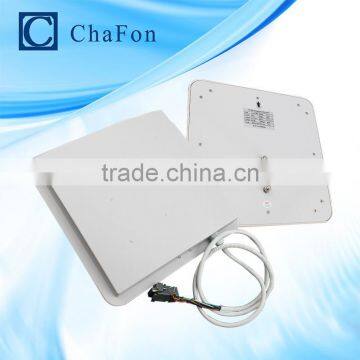

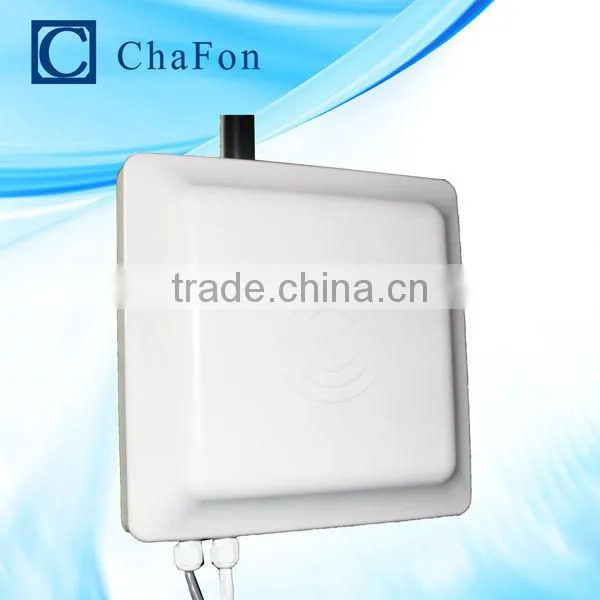

RU5106 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

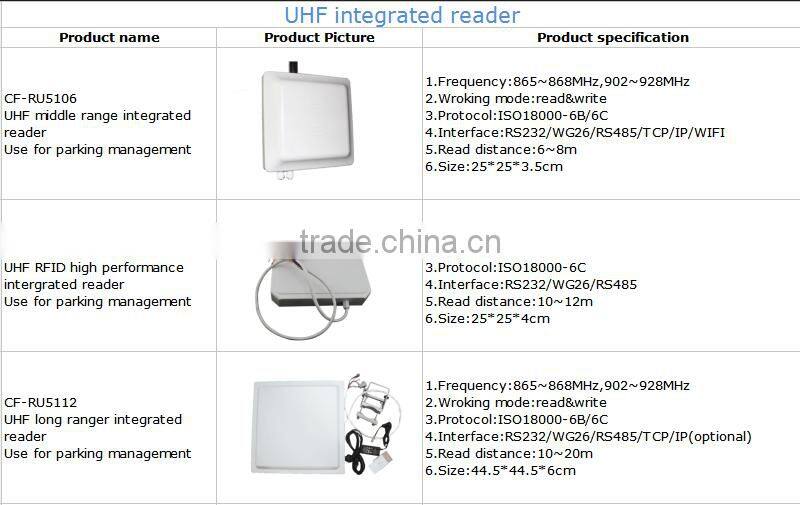

Product model explanation
Model | Interface |
CF-RU5106 | Standard(RS232, RS485, Wiegand) |
CF-RU5106T | Standard with tcp/ip |
CF-RU5106w | Standard with Wifi |
| CF-RU5106TW | Standard with WIFI,TCP/IP |
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 8dbi antenna with effect distance up to 6m~8m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9V DC power supply;
9. Support RS232, RS485, Wiegand interface;
Characteristics
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | ℃ |
Storage Temp. | TSTR | -20~+75 | ℃ |
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 350 | 650 | mA | |
Frequency | FREQ | 902 | 928 | MHz |
Interface
Item | Comment |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
Green | RS232 TXD |
Grey | Trigger input(TTL level) |
Other Support
1.Come with the completed English SDK,demo software,user manual and source code,
and these documents will help you develop the software for your application.
2.When you buy our reader,we will provide free card or tag to you for testing .
More information about this product,please visit follow link:
Reader: /productdetails.aspx?pid=382
Compatible tag: /product.aspx
