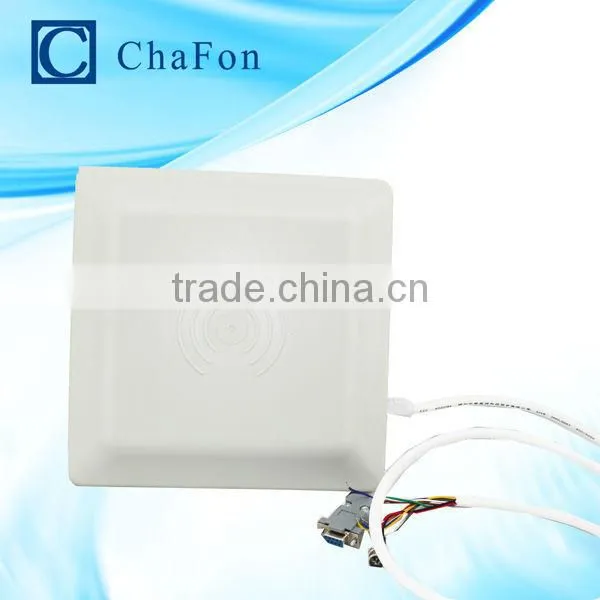

widely application uhf mid-range rfid reader

FOB Price

USD $155 - $245 / Unit

1 Unit(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ChaFon
Model Number	CF-RU5106

Product Description

widely application uhf mid-range rfid reader

Product Description

RU5106 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

Product model explanation

Model	Interface
CF-RU5106	Standard(RS232, RS485, Wiegand)
CF-RU5106T	Standard with tcp/ip
CF-RU5106w	Standard with Wifi
CF-RU5106TW	Standard with WIFI,TCP/IP

Features:

1. Self-intellectual property;

2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);

4. FHSS or Fix Frequency transmission;

5. RF output power up to 30dbm(adjustable);

6. 8dbi antenna with effect distance up to 6m~8m^*;

7. Support auto-running, interactive and trigger-activating work mode;

8. Low power dissipation with single +9V DC power supply;

9. Support RS232, RS485, Wiegand interface;

* Effective distance depends on antenna, tag and environment.

Characteristics

Absolute Maximum Rating

ITEM	SYMBOL	VALUE	UNIT
Power Supply	VCC	16	V
Operating Temp.	T_OPR	-10~+55	℃
Storage Temp.	T_STR	-20~+75	℃

Electrical and Mechanical Specification

Under T_A=25℃,VCC=+12V unless specified

ITEM	SYMBOL	MIN	TYP	MAX	UNIT
Power Supply	VCC	8	9	12	V
Current Dissipation	I_C		350	650	mA
Frequency	F_REQ	902		928	MHz

Interface

Item	Comment
Red	+9V
Black	GND
Yellow	Wiegand DATA0
Blue	Wiegand DATA1
Purple	RS485 R+
Orange	RS485 R-
Brown	GND
White	RS232 RXD
Green	RS232 TXD
Grey	Trigger input(TTL level)

Other Support

1.Come with the completed English SDK,demo software,user manual and source code,

and these documents will help you develop the software for your application.

2.When you buy our reader,we will provide free card or tag to you for testing .

More information about this product,please visit follow link:

Reader: /productdetails.aspx?pid=382

Compatible tag: /product.aspx
