Specifications
uhf reader writer usb1,Frequency:860~960mhz
2,Protocol:ISO18000-6B/6C(EPC GEN2)
3,Interface:USB
4,SDK,demo software
UHF USB RFID desktop reader writer
Product mode explanation
Model | Interface |
CF-RU5102 | USB |
CF-RU5102K | USB emulate keyboard stroke(only read) |
CF-RU5102 is a high performance Multiple Protocol UHF SDK RFID Reader. It is designed upon
fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it
supports fast tag read/write operation with high identification rate. It can be widely applied in many
RFID application systems such as logistics, access control, attendance system, anti-counterfeit
and industrial production process control system
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 902~928MHz,860~868Mhz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 10dbm(adjustable);
6. No external power source needed;
7. Built-in antenna with effect distance up to 200mm*;
8. Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;
9. Slim outline;
10. Provide SDK and demo software to facilitate further development.
* Effective distance depends on protocol, tag and environment.
CHARACTERISTICS
l Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 6 | V |
Operating Temp. | TOPR | -10~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
l Electrical and Mechanical Specification
Under TA=25°C,VCC=+5V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 4.5 | 5 | 5.5 | V |
Current Dissipation | IC | 120 | 200 | mA | |
Frequency | FREQ | 902 | 928 | MHz | |
Effective Distance* | Dis | 0 | 100 | 200 | mm |
* Effective distance depends on protocol, tag and environment.
Other support
Provide complete SDK,demo software,source code and user manual,it can help you do application software developing.
More exact product information,please check below link:
All types of UHF reader: /product.aspx?cid=238

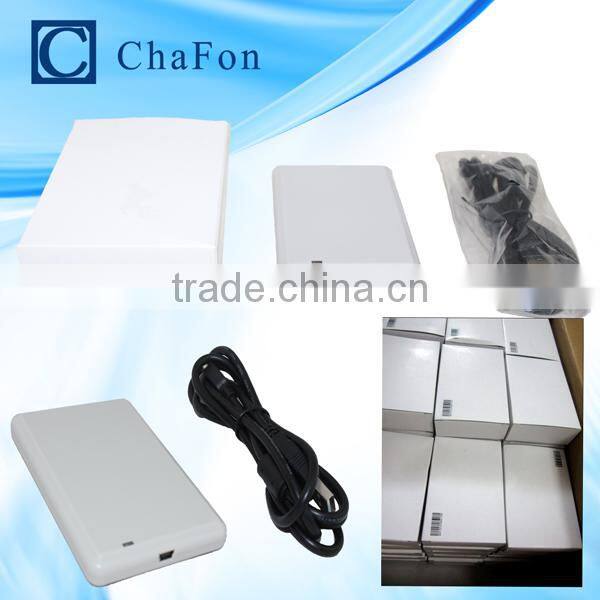

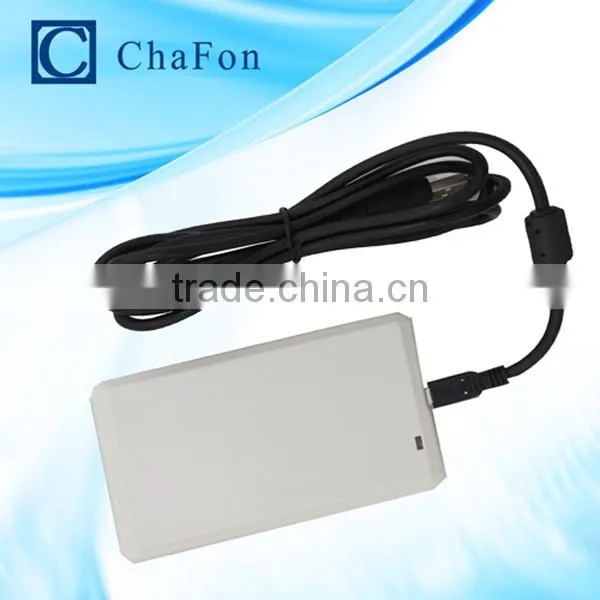

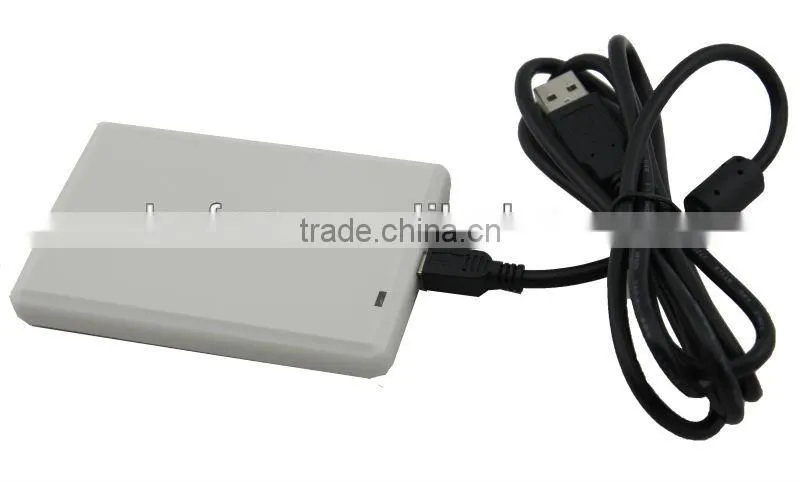

Product pictures
