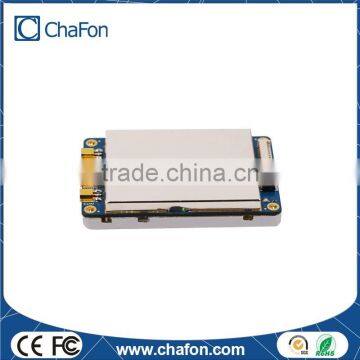

General Description

    CF-MU940 is a high performance UHF RFID Reader Module. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

FEATURES

• Self-intellectual property;
• Support ISO18000-6C(EPC GEN2) protocol tag;
• 865~868MHz, 902~928MHz frequency band(frequency customization optional);
• FHSS or Fix Frequency transmission;
• RF output power up to 30dbm (adjustable with 1db step);
• Effective distance 9m with 6dBiL antenna and E41 tag
• Support four external antennae with MMCX-J socket
• Low power dissipation with single +5V DC power supply
• Support 3 GPIO port with 2outputs and 1 input;
• Support RS232(TTL level) interface and USB 2.0 interface

CHARACTERISTICS

l  Absolute Maximum Rating

l  Electrical and Mechanical Specification

Under TA=25℃,VCC=+5V unless specified
