125khz Wiegand reader module
- Shenzhen
- Credit Card
You May Like
-
RS232 and USB 2.0 interface 9m long range uhf transceiver module
-
Chafon OEM high performance uhf transmitter module
-
SPI/I2C/WG interface option OEM high performance uhf rfid module
-
15m long range rfid OEM uhf reader module
-
smallest OEM uhf rfid smart card reader module
-
Wiegand RS232 or TTL 125khz OEM rfid card module
Product Details
| Place of Origin | Guangdong, China | Brand Name | Chafon | |
| Model Number | CF-ML030 |
Product Description

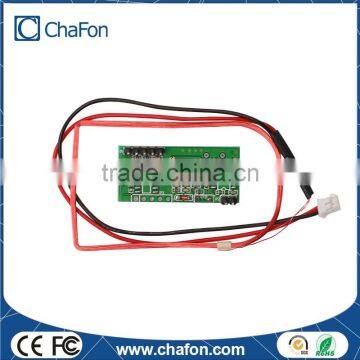

125khz Wiegand reader module
Introduction
CF-ML030 series contactless ID card module, adopt advanced frequency accept circuitry and insert micro-controller design, combine high-effective decoding algorithm, accomplish data accept to TK4100, EM4200 compatible format ID card. Possess working current small, high stability function; it's suitable for access control, attendance, charge, anti-shoplifting, inspection and so on.
Specification
Support | TK4100, EM4200 etc |
working frequency | 125 KHz |
Working pressure: | +5V, working current: 60mA |
Output format | Wiegand, RS232 OR TTL |
Read range: | 50-110mm (different card, different read range) |
size | 39*18*9mm
|
Response speed | < 0.1second |
Working temperature | -20 °C -70 °C
|
Pin Definition
| ||
NO. | Wiegand26/34 | RS232/TTL |
P1-1 | DATA1 | IO |
P1-2 | DATA0 | RX |
P1-3 | NC | TX |
P1-4 | GND | GND |
P1-5 | 5V | 5V |
P2-1 | ANT1 | ANT1 |
P2-2 | ANT2 | ANT2 |
Applications:
Access control
Offline ticketing
Identification
Payment
Road pricing
Q1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
Q2. What is your mainly product?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and 860-960MHz three frequency.
Q3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
Q4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
