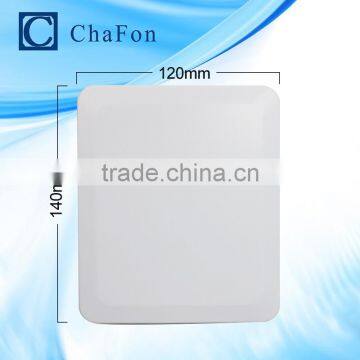

Warehouse Management 868mhz 5dbi Antenna
warehouse management 868mhz 5dbi antenna
Product Description
Model |
CF-RA5001 |
Electrical specifications | |
Frequency range (MHz) |
902-928,865~868 |
Polarization |
HCP Circle |
Gain(dBi) |
5 |
Half-power beam width(°) |
Hor:65 Ver:65 |
Front-to-back ratio(dB) |
≥20 |
Impedance(Ω) |
50 |
VSWR |
≤1.4 |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Mechanical specifications | |
Connector |
N-female |
Connectorposition |
Bottom |
size(mm) |
190*190*20 |
Packing siz(mm) |
220*220*30 |
Antenna weight(kg) |
1.0 |
Packing weight(kg) |
1.2 |
Wind loading aream^2) |
≤0.2 |
Rated wind velocity(m/s) |
60 |
Reflector material |
Aluminum |
Radome material |
UV or ABS |
Radome color |
White |
Operating temperature(°C) |
-40~70 |
Mounting hardware(mm) |
φ 40~50 |
Application
This antenna can conenct with our uhf long range fixed reader,it can be applied in warehouse,asset tracking,etc.



1. Are you manufacturer?
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
