Long Distance 12dbi UHF RFID Thin Panel Antenna
US$ 40 - 58
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chafon
Model Number:
CF-RA1201
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3dbi Pcb Circular Polarization Small Uhf Rfid AntennaUS$ 5.8 - 7MOQ: 1 Piece -
Running Race 12dbi Uhf Floor Mat AntennaUS$ 235 - 268MOQ: 1 Piece
-
High Performance Circular Uhf Rfid 9dbi AntennaUS$ 35 - 38MOQ: 1 Piece
-
Vertical Polarization Rfid Uhf Antenna 12dbiUS$ 52 - 58MOQ: 1 Piece
-
Sports ABS Material Long Range Uhf 9dbi Circular Rfid Reader AntennaUS$ 35 - 38MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Chafon
Model Number
CF-RA1201

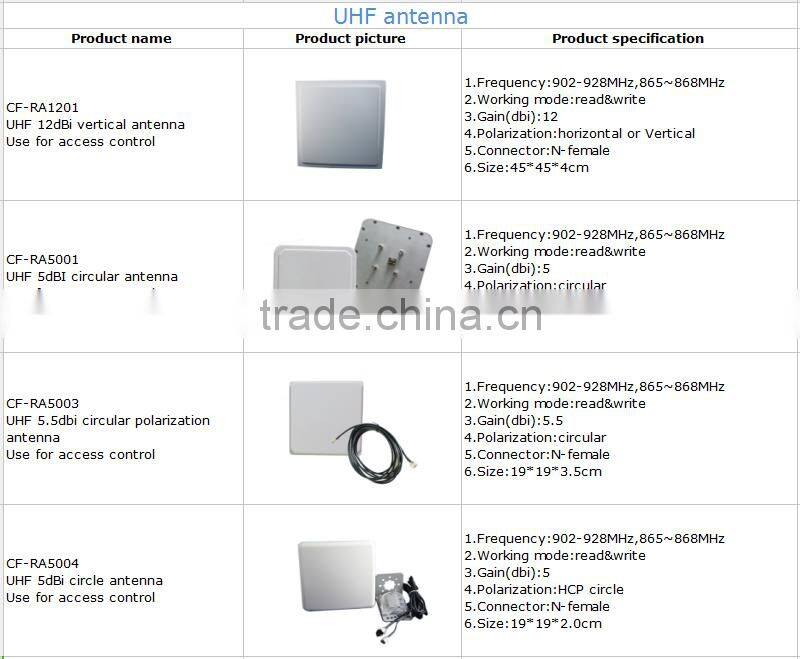

long distance 12dbi UHF RFID thin Panel Antenna
Product Description
Model | CF-RA1201 | |
Electrical specifications | ||
Frequency range (MHz) | 902-928,865~868 | |
Polarization | Horizontal or Vertical | |
Gain(dBi) | 12 | |
Half-power beam width(°) | Hor:40 Ver:40 | |
Front-to-back ratio(dB) | ≥25 | |
Impedance(Ω) | 50 | |
VSWR | ≤1.3 | |
Maximum input power(W) | 50 | |
Lightning protection | DC Ground | |
Mechanical specifications |
| |
Connector | N-female | |
Connectorposition | Bottom | |
size(mm) | 450*450*40 | |
Packing siz(mm) | 480*480*55 | |
Antenna weight(kg) | 2 | |
Packing weight(kg) | 2.5 | |
Wind loading area(m*m) | ≤0.2 | |
Rated wind velocity(m/s) | 60 | |
Reflector material | Aluminum | |
Radome material | ABS | |
Radome color | White | |
Operating temperature(℃) | -40~80 | |
