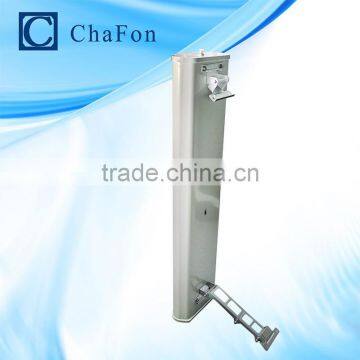

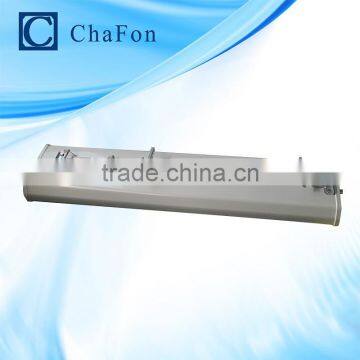

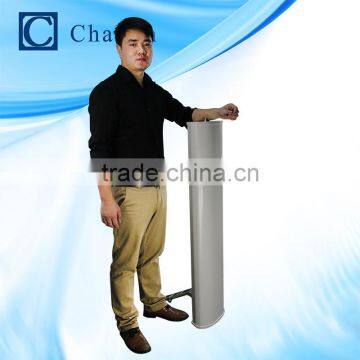

900mhz high gain antenna with 15dBi gain and linear polarization with 10~15m read range used for warehouse management
Product Description
Model | CF-RA1501 | |
Electrical specifications | ||
Frequency range (MHz) | 902-928,856~868 | |
Polarization | Vertical | |
Gain(dBi) | 15 | |
Half-power beam width(°) | Hor:65 Ver:15 | |
Front-to-back ratio(dB) | >25 | |
Impedance(Ω) | 50 | |
VSWR | ≤1.4 | |
Maximum input power(W) | 200 | |
Lightning protection | DC Ground | |
Mechanical specifications | ||
Connector | N-female | |
Connectorposition | Bottom | |
size(mm) | 1200×290×135 | |
Packing siz(mm) | 1270×335×240 | |
Antenna weight(kg) | 7.5 | |
Packing weight(kg) | 8.6 | |
Wind loading area | ≤0.2 | |
Rated wind velocity(m/s) | 60 | |
Reflector material | Aluminum | |
Radome material | UV or ABS φ | |
Radome color | White | |
Operating temperature(°C) | -40~+70 | |

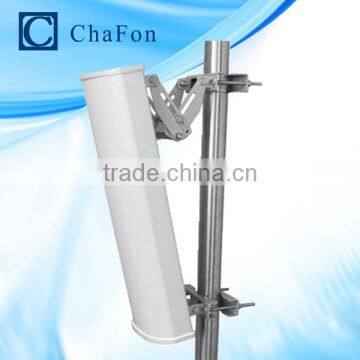

Mounting hardware(mm) | 80~114 | |
Other Support
1.This antenna can connect with our uhf fixed reader,applied to warehouse,asset tracking,logistic etc.
Please visit following link to get detail technical specification:
Other type uhf antenna(5dbi,7dbi,8dbi,9dbi,12dbi,15dbi etc):
/product.aspx?cid=266
