Low cost Wristband card tag 2.4GHz active RFID Tag
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Customized NFC Luggage Tag NFC Baggage Smart Tags
- Waterproof Eink Epaper IP67 NFC Batteryless EPD Tag Digital Shelf Label
- E-paper Display 4.2 inch B/W/R 3 Colors NFC Batteryless E-ink Table Tag E-paper Electronic Meeting Board
- Metal Business Cards NXP Mifare Desfire Rv1 4k NFC Contactless Smart Chip Card
- Signal Block from Credit Card RFID Card Blocker Shielding Card
- Multi-function BLE NFC Smart Ring
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Nexqo/OEM | Model Number: | Low cost Wristband card tag 2.4GHz active RFID Tag |
Product Description

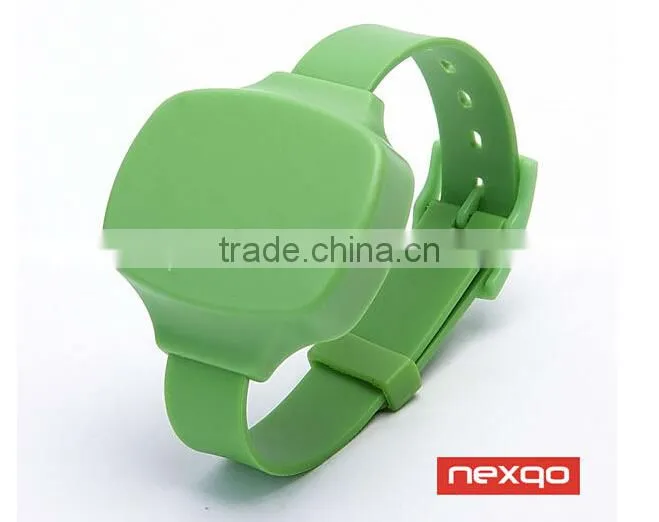

Low cost Wristband card tag 2.4GHz active RFID Tag
Product Feature
1.Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
2.Effective reading range up to 80m (depend on reader and antenna, software configurable);
3.Super wide working band design, conforming to relevant industry rules and also flexible in application development;
4. Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Physical Characteristic:
Model No | NEX-3820B |
Type | 2.4G Card Type (read only) |
Inductive mode | Initiative transmit, RF Power-0dBm transmit every second |
Material | ABS, heat resistant ,White color/Black Color |
Dimension | 75*50*7.5mm |
Battery | Battery life 1~2 years (battery can replace) |
IP Grade | IP54 |
Weight | 25g |
Microwave Link Characteristic: Electrical Characteristic:
Signal Modulation Mode: GFSK Quiescent Current: Less than 3MICROAMP
Communication Speed: one-way 1Mbit/s Operating Current: Less than 16mA
Operating Frequency: 2.4GHz Operating Temp: -20°C~+45°C
Maximum output power: 0dbm (1mw) Storage Temp: -30°C~65°C
Receiver sensitivity: -85dbm Operating Humidity: Less than 85%
Error Rate: 10-6 Drop Test: 1m (concrete floor) fall free
System Features:
1.The electronic license is unique and able to be duplicated;
2.Track the movement of vehicles, not influenced by weather;
3.Identification vehicles without stop; Set up mobile monitoring point at important crossings;
PS: We can offer the active reader which is compatible with this Active Tag !!!
Our Service:
1.OEM acceptable
2.The best quality and effective feedback
3.Prompt delivery
Why us?
1.Professional--With rich experience in card manufacturing,specializing in magnetic cards
and various RFID tags and labels in different shapes and material.
2.High reputation--Nexqo's products are exported to all over the world,including the famous brands in the world.
3. Environment-friendly--For a green world,NexPVC is our new environmental-friendly biodegradable PVC added with oxo-degradation additive which allows faster degradation in both lettering and landfill condition. NexPVC can be made into all kinds of PVC cards and tags .
4.Good quality--Our products' qualities are recognized under Nexqo Quality Verification System, receiving wide
recognition from our clients.
5.Prompt delivery--We offer very favorable price to help our clients win their projects or more business with freight advantage.
If you are interested in our product,plz feel free to contact us,your inquiry will be well replied in 24 hours.
Our Factory :
Packaing detail:
Shippment:
FedEx, DHL, TNT or your own shipping forwarder
