Specifications
1. Effective reading range up to 80m
2. Multi-Tag reading at the same time
Product Feature
1. Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
2. Effective reading range up to 80m (depend on reader and antenna, software configurable);
3. Super wide working band design, conforming to relevant industry rules and also flexible in application development;
4. Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Physical Characteristic:

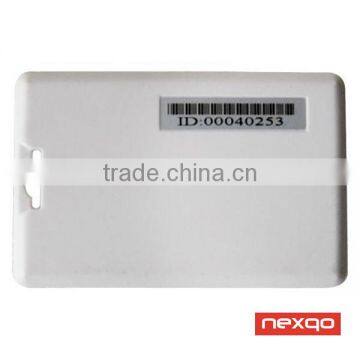

Model No | NEX-3831E |
Type | 2.4G Card Type (read only) |
Inductive mode | Initiative transmit, RF Power-0dBm transmit every second |
Material | ABS, heat resistant ,White color/Black Color |
Dimension | 86*55*5.2mm |
Battery | Battery life 3 years (battery can replace) |
IP Grade | IP54 |
Weight | 28g |
Microwave Link Characteristic:
Signal Modulation Mode: GFSK
Communication Speed: one-way 1Mbit/s
Operating Frequency: 2.4GHz
Maximum output power: 0dbm (1mw)
Receiver sensitivity: -85dbm
Error Rate: 10-6
Electrical Characteristic:
Quiescent Current: Less than 3MICROAMP
Operating Current: Less than 16mA
Operating Temp: -20°C~+45°C
Storage Temp: -30°C~65°C
Operating Humidity: Less than 85%
Drop Test: 1m (concrete floor) fall free
System Features:
The electronic license is unique and able to be duplicated;
Track the movement of vehicles, not influenced by weather;
Identification vehicles without stop; Set up mobile monitoring point at important crossings;
