Top 1 RFID Keypad Access Control System With Factory Price

Top 1 RFID Keypad Access Control System With Factory Price photo-1
Top 1 RFID Keypad Access Control System With Factory Price photo-2
Top 1 RFID Keypad Access Control System With Factory Price photo-3
Top 1 RFID Keypad Access Control System With Factory Price photo-4
Top 1 RFID Keypad Access Control System With Factory Price photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
RFID Access Control Development Kit
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU/ HONG KONG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name OEM
Model Number RFID Access Control Development Kit






Title:
Top 1 RFID Keypad Access Control System with factory price
OVERVIEW
Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.
Specifications:
Model:LKT-01

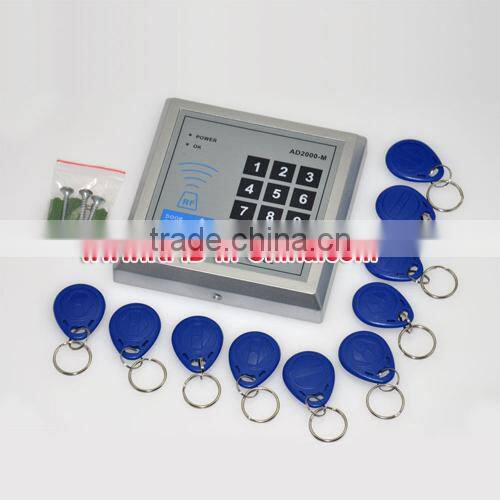

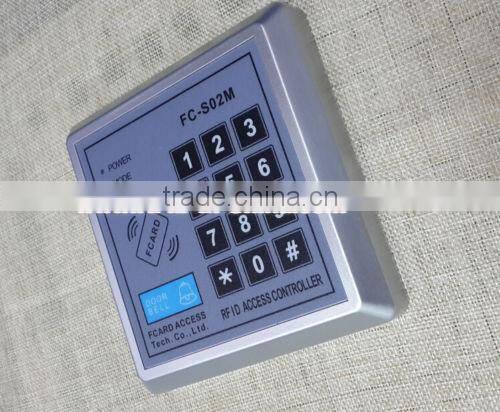

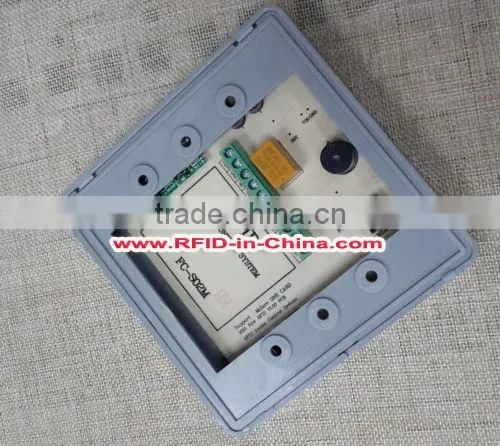

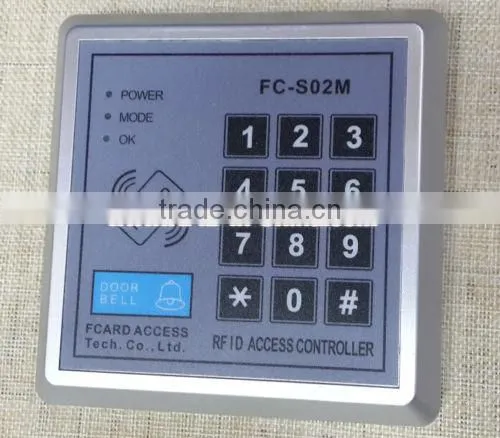

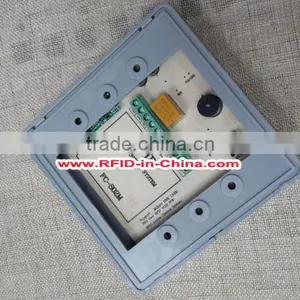

This is a NEW Access Control RFID ID Reader Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!

Contactless RFID transponder technology
Full programming from the keypad
Support Card, PIN, Card + PIN
Connection for external release button(Exit button)
Build in RFID reader
User capacity: 500users (each card only can add one password)
Does not need to connect on the computer, it can work alone.

Specification:

Operating Voltage:12VDC+10%;Current 1.2
Lock Relay:12VDC/2A
4-digits public PIN Capacity:1
Proximity Reader Frequency:125KHz
Compatible Cards:EM or EM compatible cards
Card Reading Distance: 5-15CM
Power Supply:
This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.


Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
The circuit board has remote control port.

Specification:

Input Voltage: AC 1
10~220V 50~60Hz
Output Voltage: DC 12V 3A
Outer Dimensions: 103 x 68 x 33mm
Electric Lock :

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.


NC Mode - (Locked while supplied with power) Unlock Safe Mode;
Made of Stainless Steel;
Performance Testing: 1000000 times aging test;
Authority Certification: CE & MA Approved.
Application: wood/iron doors;
Working Voltage: 12VDC
Working Current: 0.2-0.45A;
Weight: 1500g;
Dimension (Face Plate): 15x3.95x10(cm)
Pack includes: One electric lock.

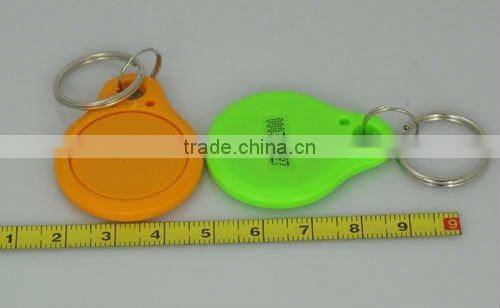

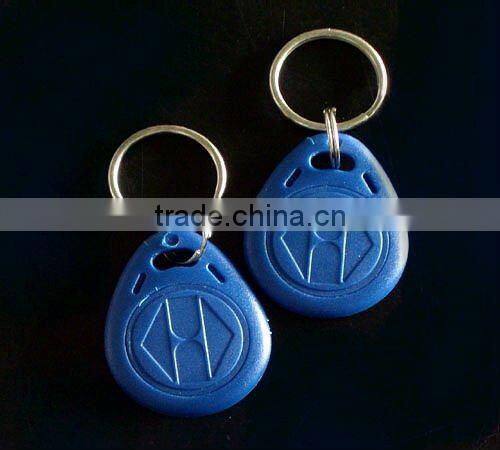

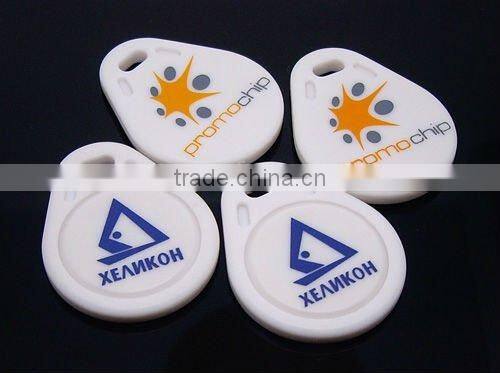

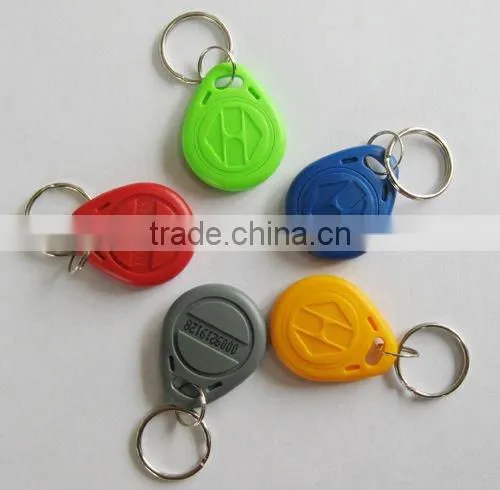

RFID Keyfobs :
These are 5pcs 125KHz RFID Proximity Keyfobs and 5pcs ID cards, they can work with the product which has 125Khz RFID card reader.
Water resistant
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it.
Exit Button :
This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:
Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc

Remote Control:
This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:

Package Include:
1 x Access control keypad
1 x Electronic lock
1 x Power supply
1 x Remote control
1 x Door bell
1 x Exit button
10 x Keyfob
