RFID Credit Card RFID Experts RFID Handheld Computer with Special Offer

RFID

Type

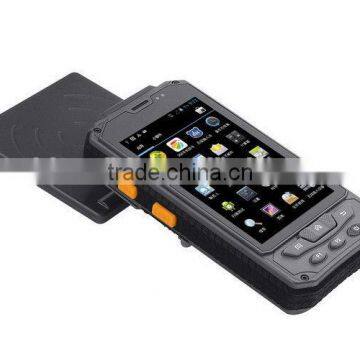

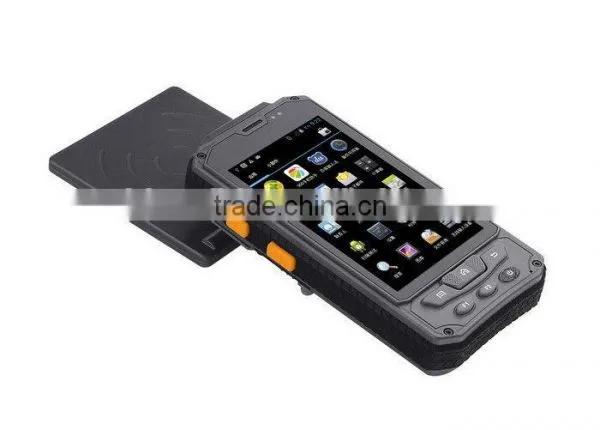

 LF&HF Handheld Reader DL710PLUS

Operating Frequency

 LF(Low Frequency) 125 KHz or HF(High Frequency) - 13.56MHz

Protocol

 ·LF - EM4001 & EM4100 & TK4100

 ·HF - ISO15693 & ISO14443

Reading Range

 10cm maximum

SDK

 Free SDK provided attached to the Reader

System features

Operating system

 Microsoft Windows CE 5.0 OS (Multi-lingual)

Processor

 SAMSUNG S3C2451 (533 MHz)

Memory

Memory

 128 MB SDRAM

Flash memory

 128/256/512 MB (standard configuration: 128 MB)

Extension

 Micro SD/TF slot (a maximum of 16 GB)

Barcode Scanning Parameters

Scanning engine type

 One-dimension laser scanner

Scanning speed

 100±20 per second (bidirectional)

Scanning distance

 60–650 mm

Scanning angle

 54±5 degree

Resolution

 0.127–1.00 mm

Readable bar codes

UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, Code 39, Trioptic Code 39, Code 39 Full ASCII, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, GS1 DataBar 14, GS1 DataBar Limited, GS1 DataBar Expanded

Audio, Slots, and Ports

USB Ports

 1 USB Interface

Slots(Extension)

 1 Micro SD/TF slot

Input/Output devices

Input devices

 Soft keyboard, Hard keyboard, Scanning start key

Output devices

 3.2 in. TFT-LCD QVGA , (240 x 320) color touch screen

Communication features

Wi-Fi WLAN(standard configuration)

 802.11b/g

Bluetooth(standard configuration)

 Bluetooth V2.1+EDR

Wide-area wireless network (extension)

 Provides a GSM/GPRS wireless communication module and supports GSM/GPRS Class10 and GSM0710 multiplexing.

Camera(extension)

 Camera with 2 million/3 million pixels and fill light

GPS(extension)

 Integrated

Product specifications

Dimensions

 150 x 70 x 25 mm (w x d x h)

Weight

 200g

Energy Efficiency

Master battery

 3.7 V 2800 mAh rechargeable lithium battery

Working hours

 8 or above (depending on the actual environment)

Charging time.

 3.5 hours

Slave battery

 150 mAh, providing power for six hours

Environment Requirement

International Protection

 IP54

Operating Temp

 -15°C to 50°C

Storage Temp

 -20°C to 60°C

Humidity

 5% to 95% Non-condensing

Endurable height for dropping

 Endure multiple drops to a smooth concrete floor from a height of 4 inches (1.2 m).
