RFID active 2.4GHz Reader

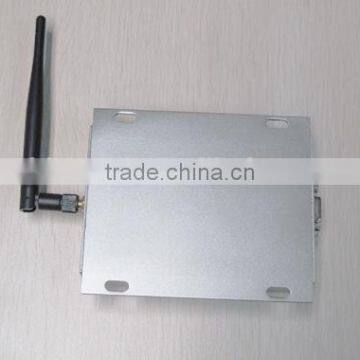

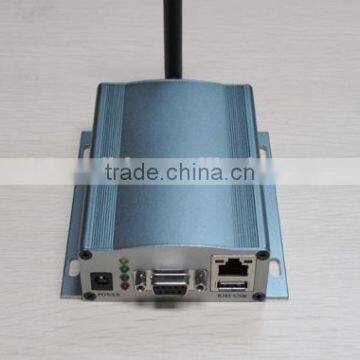

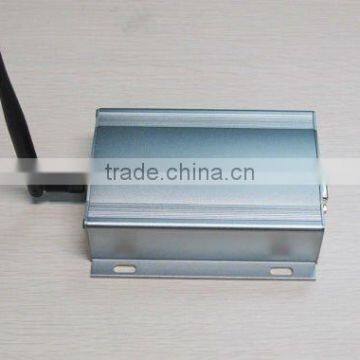

Our website is .This 2.45GHz RFID active reader DL580 is designed for asset tracking. With its long read up to 100 meters, this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of asset tracking and management.
Specification:
| Important performance | |
| Working frequency | ISM 2.4GHz ~ 2.5GHz |
| Identifiy direction | Omni-directional or directional (antenna dependent) |
| Antenna | Connect 1 antenna through SMA |
| Standard matched antenna | Omni-directional antenna |
| RF Power Range | -20 dBm ~ 0 dBm (set by software) |
| Receiving Sensitivity | -90 dBm |
| Modulation | GFSK |
| Read-Write performance | |
| Read Mode | 1) Automatic identifying within effective area (Auto mode) 2) Reading after external trigger (Trigger mode) 3) Reading under software command (Master-slave mode) |
| Identify Tag Time | Less than 1ms when identify single tag |
| Anti-collision | Read up to 500 pieces of tags simultaneously |
| Read distance | 0 ~ 100 m adjustable For reader with RSSI function, the distance will be half the above distances |
| Buffer Capacity | 1000 tags data |
| Working Status Indication | Buzzer, LED indicator light |
| Communication performance | |
| Communication Speed | 1000kbps |
| Input and Output | 1 triggering input |
| Optional function | 2 Relay output, CAN, RSSI |
| Data Port interface | |
| RS232 Port | Yes |
| RS485 Port | Yes |
| USB Port | Yes |
| Weigand Port | Weigand26/34/42/50 |
| Ethernet | Yes |
| Electric parameter | |
| Power supply | DC+5V,1A |
| Exterior and weight | |
| Product size | 119 mm*100 mm*35 mm |
| Packing size | 300 mm*280 mm*90 mm |
| Gross weight | 900 g |
| Net weight | 250 g |
| Accessories | Standard matched antenna, DC 5V/1A adapter, power cable, RS-232 cable, USB cable, Ethernet cable |
| Working environment | |
| Working temperature | -20°C ~ 70°C |
| Storage temperature | -40°C ~ 85°C |
Competitive Advantages:
1, extensive experience, leading technology and innovation!
2, provides one-top personalized products, data security and application solutions
3, DAILY RFID has a professional design team, close to trend of the world
4, High-quality products, service, guarantee commitments
5, Cooperation with top-level partner
6, Professional create assurance
7. We have own manufacture factory in Guangzhou
We can design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirements.For more info about RFID products please kindly visit our website or mail to us,our sales will contact you as soon as possible.
-Best DAILY, Best RFID-
