PET/PS flakes plastic recycling extruder machine
- 250 Set / Sets per Month
- Shanghai /Nanjing port
- T/T
Product Details
Condition: | New | Application: | Granules | Plastic Processed: | Other, PET |
Screw Design: | Double-screw | Automatic Grade: | Semi-automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Haisi | Model Number: | TSE-95 | Voltage: | 380V 50HZ |
Power(W): | 250KW | Dimension(L*W*H): | 16*2*2.5m | Weight: | 8T |
Certification: | CE/ ISO/ SGS/ TUV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

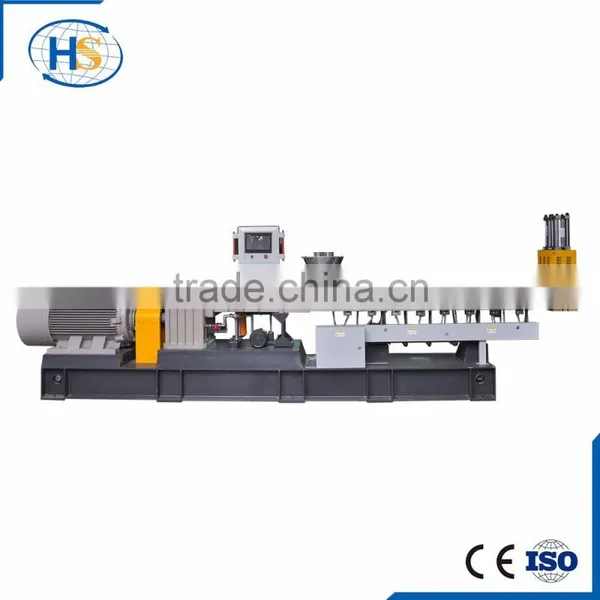

PET/PS flakes plastic recycling extruder machine
Technical parameter for PET/PS recycling extruder
Mode | Diameter | L/D | Screw Rotary | Motor Power | Torque | Output |
TSE-30B | 31 mm | 32-48 | 600 r/min | 15 kw | 119 N.m | 5-40 kg/h |
TSE-35A/B | 35.6 mm | 32-52 | 600 r/min | 15-22 kw | 119 N.m | 20-60 kg/h |
TSE-40B | 41 mm | 32-52 | 600 r/min | 30 kw | 239 N.m | 90-150 kg/h |
TSE-65B | 62.4 mm | 32-64 | 600 r/min | 90 kw | 716 N.m | 200-300 kg/h |
TSE-75B/C | 71 mm | 32-64 | 600 r/min | 132/160 kw | 1050/1273 N.m | 350-600 kg/h |
TSE-75D | 71 mm | 32-64 | 600 r/min | 200-250 kw | 1990 N.m | 500-1000 kg/h |
TSE-95B | 93 mm | 32-64 | 600 r/min | 315 kw | 2506 N.m | 800-1200 kg/h |
TSE-135A | 133 mm | 32-64 | 500 r/min | 750 kw | 7162 N.m | 1500-2250 kg/h |
For the PET/ PC/flake recycling application, water cooling strand is the best choice to get good material performance. The viscosity increasing technology is the most important for recycling issue.
a. Flexible modular screw barrel sections : high quality nitrided steel, corrosion proof or antifriction with corresponding process ; Cooled by water , by means of an internal bore system , with bores arranged close to the inside barrel wall
b. Screws are designed as modular systems. The screw elements are slid onto the shaft in the desired configuration. The unique splined screw shaft design-maxx shaft -realizes a higher torque transmission than in standard extruders. Generally , there are conveying, kneading , mixing elements. Hundreds of different screw elements can be combined.W6Mo5Cr4V2 or 38 CrMoALA.
C. High toruque Gearbox: new stype project of parallel three axises driving makes the convey axis, selected materials of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding. technics, strengthening of tooth face.
Various pelletizing lines available for masterbatch and compounds making;
1. Water strand pelletizing line for various filling masterbatch ,fiber reinforcement masterbatch ,etc
2. Air cooling pelletizing line for PE+ Caco3, PVC ,etc
3. Water ring pelletizing line for PP+70-85% Caco3/Talc/Tio2,etc.
4. Under water pelletizing line for TPU, etc
Why did our Customers choose us?
1. Reply < 10 hours
2. Delivery time > 99%
3.Quality Control > 100%
4.After-sales Service > 100%
Who are we?
As a integrative professional plastic pellet extrusion machine supplier, we specialize in designing,
developing, manufacturing, and marketing of all kinds of twin screw extrusion ,single screw extrusion and two stage extrusion machine.
What can we do for you?
1. Good quality twin/single screw extrusion machine or other spart parts with competitive price.
2. Satisfying services.
3. OEM&ODM
Wooden box package machine in case of borken, extra packing fee paid by customer;
film cover machine for free.
Dear friends, beside the single screw extruder machine, Nanjing Haisi Extrusion Equipment also supply twin screw extruder machine, two stage extrusion machine for filler masterbatch, compounding masterbatch and PET bottle flakes recycling pellet.
Welcome to visit plant any time.
As extruder manufacturer with over 15 years experience, your ideal also support by OEM service support here.
