GF/EPDM/ABS+ PA granules pelletizing machine
- 250 Set / Sets per Month
- Shanghai /Nanjing port
- T/T
Product Details
Condition: | New | Application: | Granules | Plastic Processed: | PE |
Screw Design: | Double-screw | Automatic Grade: | Semi-automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Haisi | Model Number: | TSE-65B | Voltage: | 380V 50HZ |
Power(W): | 90kw | Dimension(L*W*H): | 12*2*2.2m | Weight: | 8T |
Certification: | CE/ ISO/ SGS/ TUV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
GF/EPDM/ABS+ PA granules pelletizing machine
PA reinforced EPDM plastic granules Brife Instruction
EPDM is a better overall performance rubber, its molecular chains no unsaturated bond, as compared with other rubbers, with better anti-aging, anti-media performance and superior physical properties, but its strength is not high .
Technical parameter for granules pelletizing machine
Mode | Diameter | L/D | Screw Rotary | Motor Power | Torque | Output |
TSE-30B | 31 mm | 32-48 | 600 r/min | 15 kw | 119 N.m | 5-40 kg/h |
TSE-35A/B | 35.6 mm | 32-52 | 600 r/min | 15-22 kw | 119 N.m | 20-60 kg/h |
TSE-40B | 41 mm | 32-52 | 600 r/min | 30 kw | 239 N.m | 90-150 kg/h |
TSE-65B | 62.4 mm | 32-64 | 600 r/min | 90 kw | 716 N.m | 200-300 kg/h |
TSE-75B/C | 71 mm | 32-64 | 600 r/min | 132/160 kw | 1050/1273 N.m | 350-600 kg/h |
TSE-75D | 71 mm | 32-64 | 600 r/min | 200-250 kw | 1990 N.m | 500-1000 kg/h |
TSE-95B | 93 mm | 32-64 | 600 r/min | 315 kw | 2506 N.m | 800-1200 kg/h |
TSE-135A | 133 mm | 32-64 | 500 r/min | 750 kw | 7162 N.m | 1500-2250 kg/h |

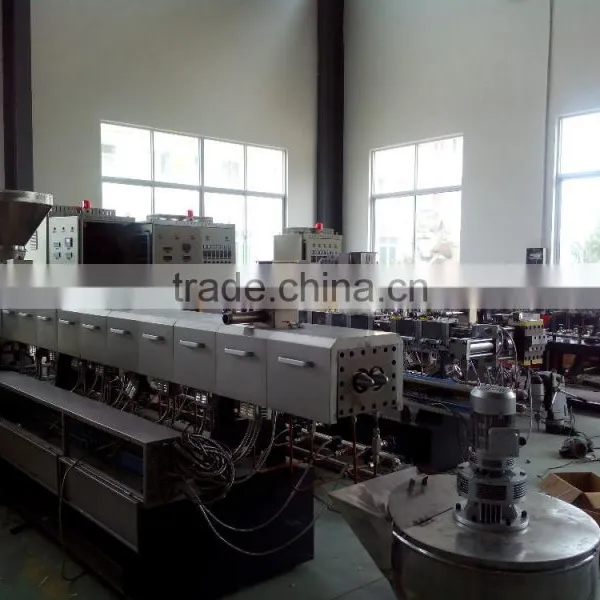

We use the twin screw extruder in water strand pelletizing system to produce the PP/PA with DPEM. As the below picture.
As manufacturer, we produce the screw element and barrles in our CNC center, quality can lead time can control very well here.
Screw element material: high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heating treatment. which is possessed with high corrosion-resistant and high function. HRC: 60~62
Barrel material:45 # + α 101, HRC: 60~62

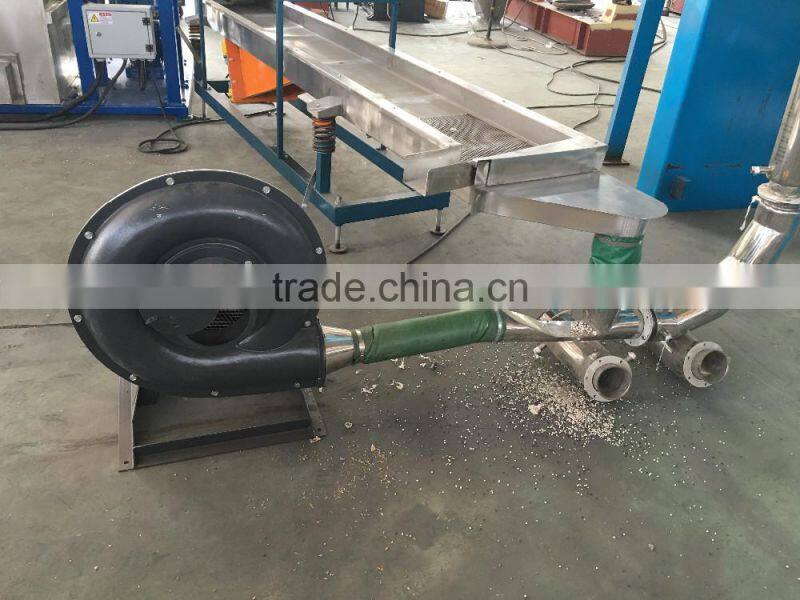

Vibrating & blower fan
Why did our Customers choose us?
1. Reply < 10 hours
2. Delivery time > 99%
3.Quality Control > 100%
4.After-sales Service > 100%
Who are we?
As a integrative professional plastic pellet extrusion machine supplier, we specialize in designing,
developing, manufacturing, and marketing of all kinds of twin screw extrusion ,single screw extrusion and two stage extrusion machine.
What can we do for you?
1. Good quality twin/single screw extrusion machine or other spart parts with competitive price.
2. Satisfying services.
3. OEM&ODM
Our Service
As for the products. we have passe CE. FCC certificates.
As for factory firm ability ,we have passed CE. ISO. SGS. Our sincerity business commercial ethic is :''the business principle of best quality,customer always the first".
Sincerely welcome to contact us to made a good cooperation with us.
Wooden box package machine in case of borken, extra packing fee paid by customer;
film cover machine for free.
Dear friends, beside the single screw extruder machine, Nanjing Haisi Extrusion Equipment also supply twin screw extruder machine, two stage extrusion machine for filler masterbatch, compounding masterbatch and PET bottle flakes recycling pellet.
Welcome to visit plant any time.
As extruder manufacturer with over 15 years experience, your ideal also support by OEM service support here.
