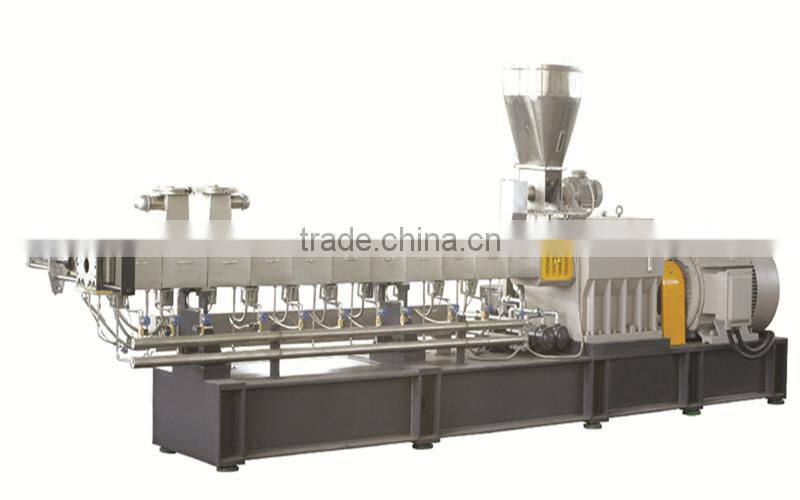

Nanjing Haisi Hot Sale Pelletizer Granular Machine For Recycle Plastic Price
1.The Technical Data of TSE 75 :
Mode |
Screw Diameter(mm) | Screw Length/Diameter |
Screwspee N(r/min) |
Main motor power(kw) |
Screw torque(N.m) |
Torque ratingT/N^3 |
Output(kg/h) |
TSE-75A |
71 | 32-56 | 400/500 | 90/110 | 1074/1050 | 4.8 | 250-420 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
| TSE-75C | 71 | 32-64 | 600 | 160 | 1273 | 5.8 | 400-600 |
| TSE-75D | 71 | 32-64 | 600 | 200-250 | 1990 | 9.2 | 500-1000 |
2.Application of compound extruder

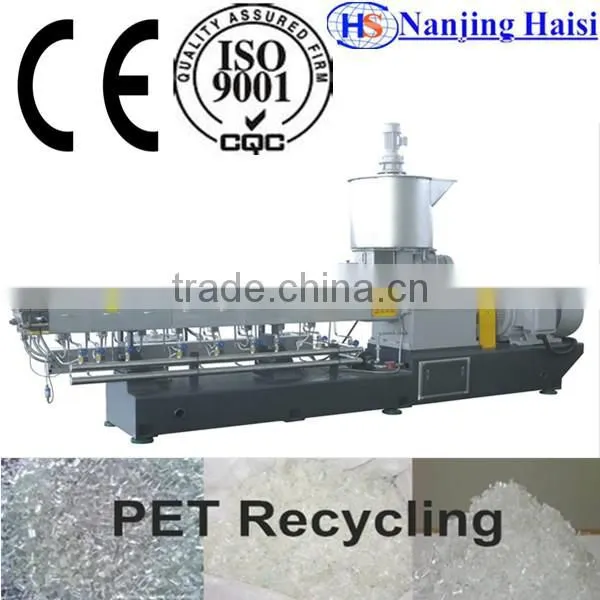

TSE-75 PET reclamation pelletizing machinery is best applicable for:
Mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc
PE,PA,PC,CEP+ABS(alloy);PBT+PET;PP+PE,etc.
Filling nature-changing: PE,PP,EVA etc+aluminum hydroxide,magnesium hydroxide,antimony oxide.
PP,PA,ABS+ferrous powder, sulphuric powder, ceramic powder
Colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET etc+long fires,small fibres, carbon fibres, crystals and so on, etc.
3.Features of plastic extruder:

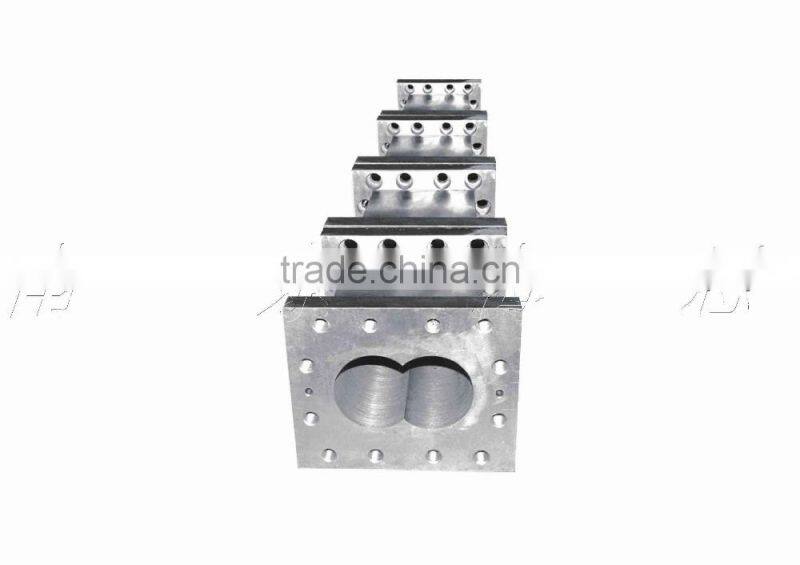

(1) Barrel
euro-style rectangle barrl, reflux refrigeration channel is optimized and disposed,which makes temperature difference in D areas smaller.
innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
the material is used high quality nitrided steel ,corrosion proof or antifriction with correspounding process.

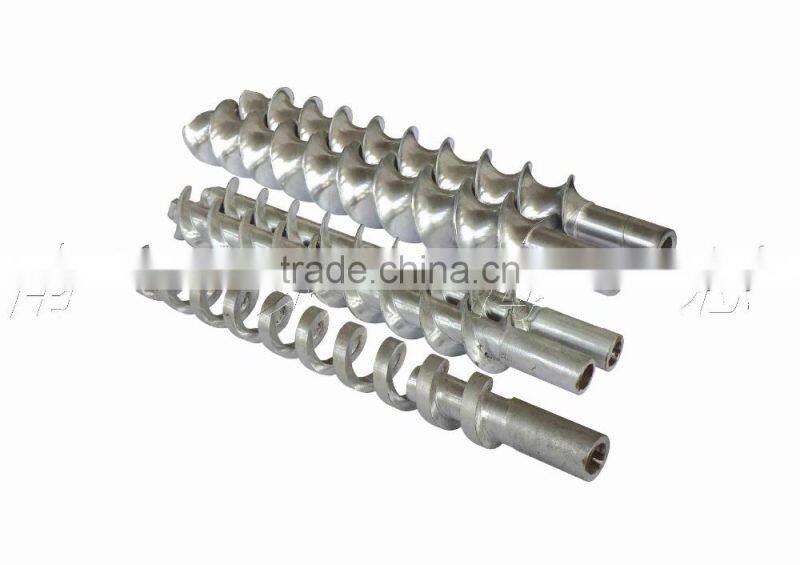

(2) Screw
---.the screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment , which is possessed with high corrosion-resistat and high functions.

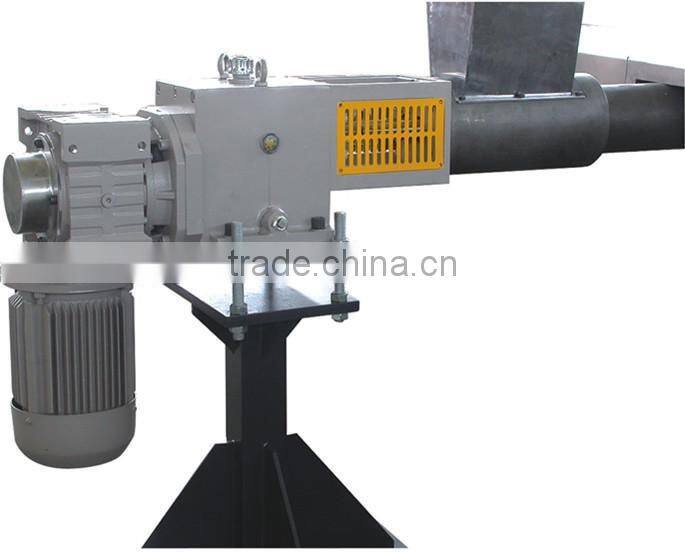

(3)Metering feeders
various metering feeders --- single screw ,twin screw ,hollow screw,forced-feeding, side- feeding.
(4) New-style gear transmission system
new-style project of parallel three-axises driving makes the conve axis,convey
chain,decelerate and torque get together ,which keep it compact ,and the key bearings are imported
soakage and spraying lubriation integrate smoothly
technics,strengthening of tooth face,so they can ensure high torque,high precision and low noise
the selecte material of drive components is dainty,including super intention alloy cementiteing steel,cementiting and grinding.

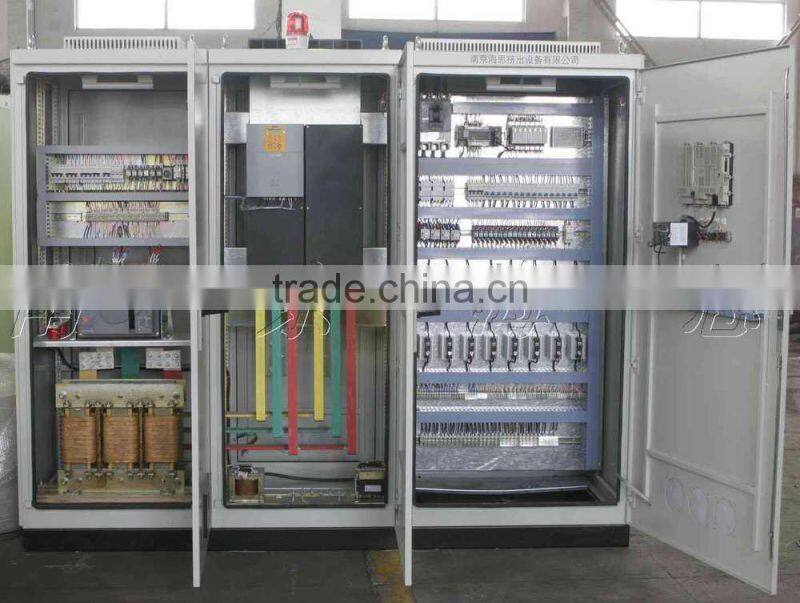

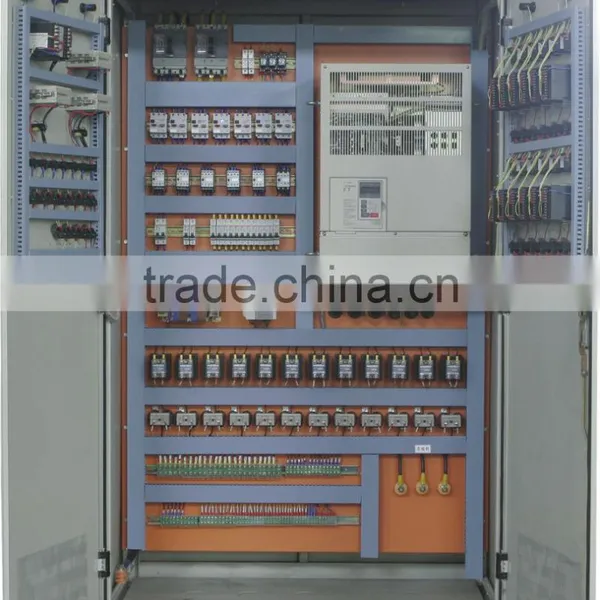

(5)Electric control cabinet
frame structure control cabinet
imported electrical elements
imported temperature control system
imported driving system
interlock and multi-protection
adopting imported PLC(OMRON or SIMES) to achieve optimized process control. stronger function,steady performance and much higher accurancy
it can be also accomplished full-set link-lock protection,trouble safeguard,fault alarm cluing and so on
operation interface on touching screen is visual and marked ,which is brief and easy to use.
(6) Pelletizing system for compound
---various modes of pelletizing,such as water-cooling strand,air-cooling pelletizing,water-ring pelletizing,under water pelletizing.
1.Quality guaranteed
2.Support factory visit
3.Technology supports
4.We are the manufactuer
Welcome to Nanjing Haisi Extrusion Equipment CO., Ltd.
Our products are single screw extruders, co-rotating twin-screw compounding extruders,two-stage compounding extruders, auxiliary equipment, etc.
Believe yourself, and cooperating with HAISI is your wise decision; believe us ,since "high quality and service" is our promise forever!
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong
team which has substantial experience in R&D, manufacture, technique and sales service and has
specialized in extruder industry for ten years,leading screw barrel manufacturer in China.
2. Q:What's Haisi capacity?
R:Company is in strict accordance with CE and ISO9001 quality certification system.There are over 200
models of extruders and spare parts.
3. Q:What's the delivery time?
R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough
for customized, normally 3~4weeks.
4.Q:How about Haisi screw extruder quality and price?
R:Germany Technical invested, top quality in China with competitive price and globle after-sale service
5. Q:what's the life time and guarantee buy from Haisi screw extruder?
R:3~5years life time for nitriding ones and bimtallic ones will be longer
One year min. Guarantee.
