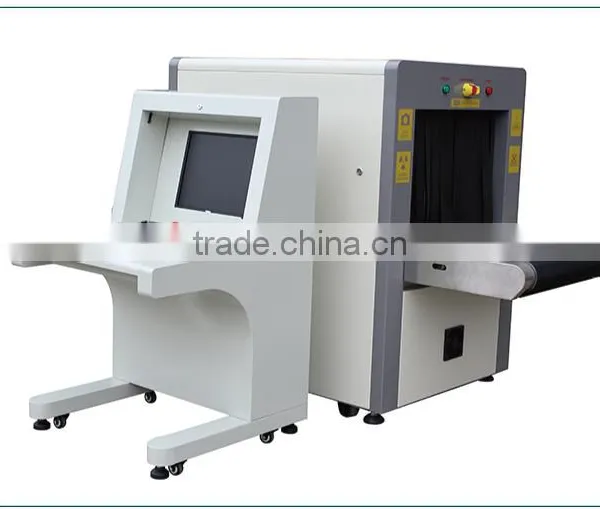

x ray baggage scanner for jails
- 200 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- Slim Fast Speed Gate
- 2024 China Made Unique Designed Tripod Turnstile
- China Direct Factory Made Tripod Turnstile
- China made Face Recognition Control Speed Gate
- Pedestrian gate wing gate face recognition gate Intelligent swipe card entrance and exit gate intelligent gate
- The cash register gate / entrance gate for check out / Stainless steel pipe guardrail / supermarket swing gate / turnstile gate
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AnHuShen | Model Number: | JH-6550 |
Product Description
welcome to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.
FEATURE:
- Alarm by sounds & light: Alarm by sounds and light when conform to condition.
- Network interface: Could be connect local area network and support multi-terminal check baggage at same times
- Safety ray: Transmit ray under automatic control, avoids the miss.
- Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
- Turn off by a key control: Turn off the machine only need one step: revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
- Eagle-eye: Could be expediently observing enlargement area.
- Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 650(W)×500(H)mm
Conveyor Speed: 0.22 m/s 1
Conveyor Max Load: 160 kg
Single inspection dosage: < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 38MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.3µGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100%
Image performance system:
X-ray sensor: l type photo-diode array detector, 12bit
Monitor: high resolution 17inch color lcd display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorbtivity mass distinctly
Low penetrate strength display: increase contrast of low absorbtivity mass (easy to penetrate) to display it distinctly
Magnifier: function of partial enlargement
Brightening/dimming: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration :restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Multi-energy function:
Multi-energy color :display organic material for orange, display inorganic material for blue, and display mixture for green
High energy/low energy: switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
Auxiliary function for drugs & explosives: help to detect such dangerous material as drugs & explosives etc.
Audible & visible alarm: give sound and visible signal when conforming to condition
OPERATING ENVIRONMENT:
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <65DB
X-ray | Walk through metal detector | Under ground metal detector |
Hand held and underground metal detector | Food metal detector | Others |
Any of your kind inquiry would be replied within 12 hours.
Well-trained and experienced sales staffs will reply all your concerns in fluent English.
OEM services are available with us, our professional designer would make your private idea into being.
Protection of your sales area, ideas of design and all your private information.
Delivery by air mail or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!
1. Are you manufacturer or trade Company?
We are a factory founded in 2007 with trade team for international service.
2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight
3. what is your lead time for your goods?
Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season ( Jan to March).
