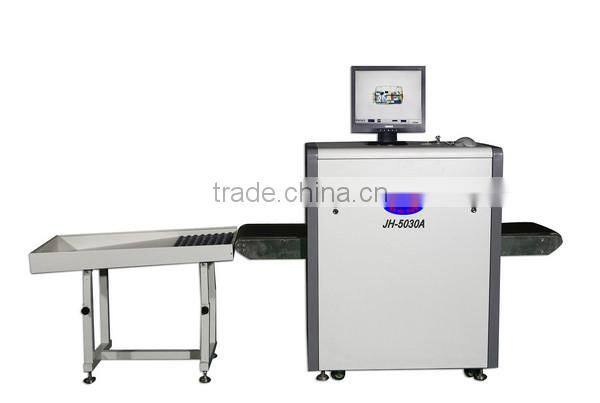

X-ray Airport Baggage Scanner

 X-RAY Security machine(luggage scanner)JH5030A

X-RAY GENERATOR:

Orientation:                        Vertically Upward

Tube Current:                       0.4~0.5MA(adjustable)

Anode Voltage:                      80 KV(adjustable)

Angle:                             60°

Generator cooling/working periods       Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM:

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

 COLOR QUALITY: 24 BIT REAL COLORS

 EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF

IMAGE PERFORMANCE SYSTEM:

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

COLOR QUALITY: 24 BIT REAL COLORS

EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

 MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

 BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

OPERATING ENVIRONMENT:

Storage Temperature    -20ºC to 60ºC

Operating Temperatur      0ºC to 45ºC

Relative Humidity       20 to 95% non-condensing

System Power 220 VAC (±10%) 50±3HZ

Power wastage        1.0 KW (Max)

Noise              <65D
