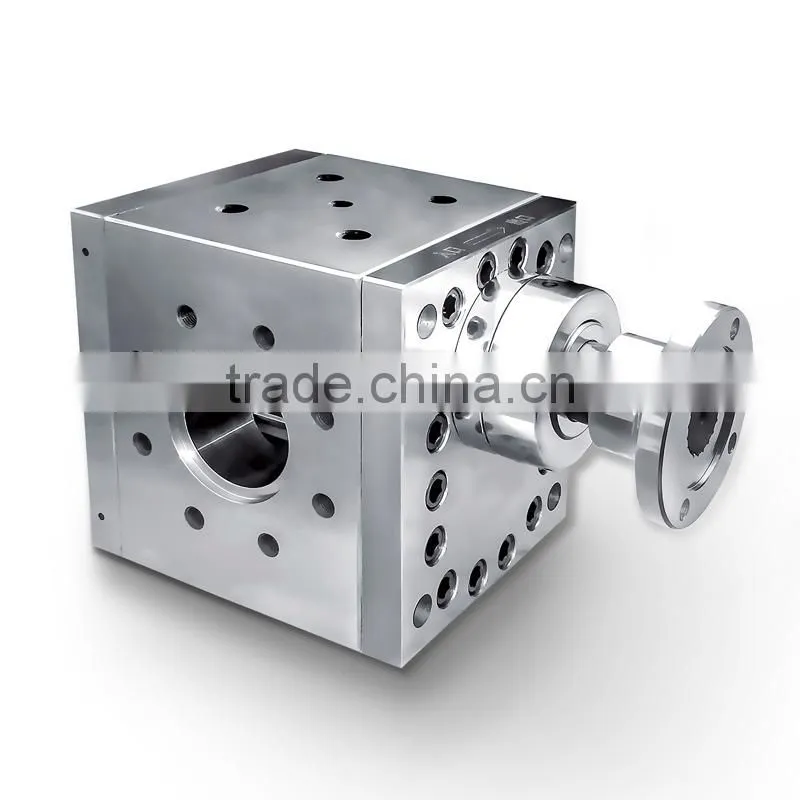

Batte High Temperature Tool Steel Gear Pump

Name: Batte High Temperature Tool Steel Gear Pump
Brand: BATTE
Availability: InStock

FOB Price

US$ 2,500 - 5,000 / Set

1 Set(Min. Order)

Port China main port
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	BATTE
Model Number	ZB	Theory	Rotary Pump
Structure	Gear Pump	Usage	Other, thermoplastic transportation
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, with motor drive	Pressure	High Pressure
Application	Metering

Product Description

Company Information

Batte Machinery Zhengzhou Co.,Ltd is a professional manufacture for melt pump, screen changer and feeder product. Batte integrates production development, research, sales and after-sale services.Our experienced and innovative technical team successfully develop multiple practical screen changer based on technology accumulation for many years. Batte is one of few enterprise to master non-stop screen changing technique. Our company has long-term cooperation with many enterprises, and enjoy great honor from home and abroad.

All raw material and spare parts of products are selected carefully and assembled with skilled experience. Pre-delivery debugging of melt pump is the best quality assurance before they are leaving the factory.

Standard Standard or Nonstandard and High Pressure Pressure Screw Pump

Batte Melt Pumps: Extrusion Line Synchronization Made Easy

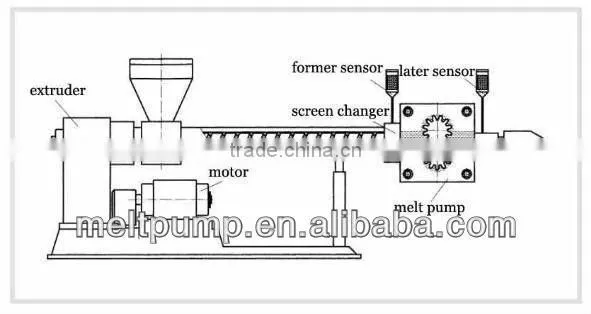

You can eliminate extruder surge and screw beat at the die by installing an melt pump between your extruder and die. Our melt pumps are extremely efficient at building pressure and metering polymer to the die at a highly consistent rate and pressure.

Batte Melt pumps come in a variety of types and sizes to fit the needs of your extrusion, compounding or polymer production process.

Batte machinery components, systems and know how in plastics can help you reduce costs, increase output and/or improve product quality in your extrusion operation.

1.Strengthen your technology by drawing on the extrusion expertise of Batte for equipment and processing recommendations.

2. Streamline your supply chain by relying on Batte for more of the key components of your process

melt pump for extrusion

Technical data:

1.Rotate speed: ≤60rpm(Adjustable)

2.Temperature: 400°C (max.)

3.Max.Outlet pressure: 350Bar

4.Max.Differential pressure: 275Bar

5.Heating method: Stainless Steel Cartridge Heater

6.Fastening parts: 12.9 high-strength screws

7.Voltage: 380V(Others are optional)

8.Frequency: 50Hz(Others are optional)

melt pump for extrusion

Pump Mode	Deliver Capacity	Output	Heat Power	Drive Power
Melt pump	cc/rpm	L/H	Kw	Kw
ZB-0.2	0.2	0.1-1	0.5	0.37
ZB-1	1	0.5-5	1	0.5
ZB-2	2	1-10	1	0.75
ZB-5	5	2.5-25	1	1.1
ZB-10	10	5-50	1	1.5
ZB-20	20	10-100	2	2.2
ZB-31.5	31.5	15-145	2	3
ZB-50	50	25-225	2	4
ZB-100	100	50-450	3	5.5
ZB-150	150	75-675	4	7.5
ZB-200	200	100-900	4	11
ZB-250	250	125-1125	5	15
ZB-315	315	155-1415	6	18.5
ZB-500	500	250-2000	10	22
ZB-800	800	400-2880	15	30
ZB-1000	1000	500-3600	18	37
ZB-1500	1500	750-5000	20	45

melt pump for extrusion

Melt Pump Parameter:

Max Outlet Pressure: 700Bar

Max Inlet Pressure: 20Bar

Max Pressure Deviation: 500Bar

Viscosity:20000Pa.s

Temperature: 510°C

We also can design special pump size according to customers’need.

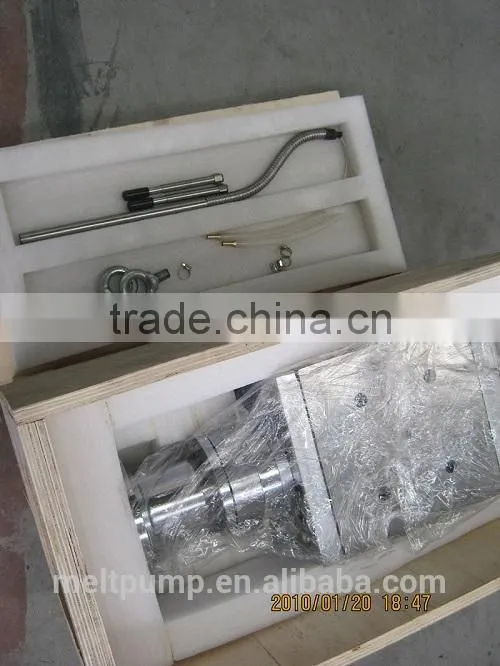

Packaging & Shipping

Packaging: polywood cases

Shipping

Customer can choose air transportation or sea transportation.

Trade Shows

Our Services

1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.

2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technicia

team, and we own adequate experience for production line transformation project.

3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.

Related Produce

FAQ

When we choose the model of melt pumps, we should know your information.

1.Customer's equipment, extrusion line, reactor or pipeline.

2.What is the material of customer production line?

3.If your equipment is extrusion line, Is it twin extruder or single extruder, what is the capacity?

4.What is the temperature of production line?

5.What is the material viscosity? The viscosity will effect the speed of melt pump.

6.How much the pressure of production ine, input pressure and output pressure?

You give us the above information, we can select melt pump and give you quotation as soon as we get your inquiry.
