Full automatic vacuum suction machine
1.Product Description

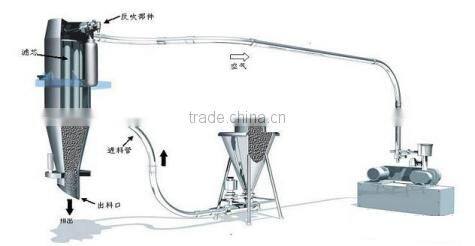

1) Full automatic vacuum suction machine create a negative pressure of air flow, under this kind of situation, the material is transported through the suction tube or pipe and will be transported to another container.
2) Because the material is always during the process of transportation in vacuum, therefore, even if the pipeline leak, it will not leak to the surrounding environment.Vacuum pump produce vacuum through the vacuum conveyor equipment .Suck the material from the suction side through the suction hose.In the separation container filtering bin the air and materials will be separated.
3)The material will be collected in the bunker. Cyclone separator prevents the fine powder into the filter, in order to improve the filter efficiency.When the silo is full of material,the vacuum pump will be shut down automatically, the pressure inside conveying equipment will reach balance .
4)Discharge valve will be opened, the material through a feed inlet flow out and directly into the material storage vessel.During discharging, the filter module will be cleaned automatically by recoil air bag. The recoil special vibrator can assist material flow, to improve the efficiency of delivery of viscous material.After the tank emptying,the tank will be closed, the entire transport process will be re-started again.
2.Advantages
1) This series is designed and manufactured on the basis of absorbing the advantages of imported sample
2) Using imported filter device, high strength, good effect, no pollution
3) Vibration discharge system can prevent the powder bridging, the use of discharge more fluid
4) The cleaning device using the pulse compressed air, air blast filter surface, the cleaning effect is better
5) This series of equipment,after each suction will be carried out to clean up, so that the feeding efficiency is higher, and can extend the service life of the filter device
3.Our services
1) Before-sale: Introduce products in detail
Recommend suitable solution
Provide reference information
Offer lab for test
2) During manufacturing
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3) After-sale:
We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
4.Packaging
5.Attending Fairs
6.Our workshop and scene pictures
