Aerated Autoclave Bricks Machine Iso High Quality Aac Plant Flyash Brick Machine

1.  introduce

Areated concrete brick (light brick ) is the light and porous buidling material. It has  light keeping temperature cant

burn and other advantages . it can be made into many kinds of bricks (for example : 600×200×100, 80×80×180 ,

240×115×53, 600×200×125 ) ,they could be used industry building and common building . they are more and more

popular in the world .in the future ,they will replace the Clay brick completely .

 2.Areated concrete common  conception

 Common concrete density is usually 1600-2400kg/m³,but Areated concrete are 500kg/m³,600kg/m³,700kg/m³.It

has not the big grain ,main use silicon material (for example: coal ash , sand , stone dust and others )   ,through

making the material small for example sand,they can be used directly if has enough degree of small (for example

coal ash.Mixing  calcium material lime cement water to a special slop , then add the aluminum dust and the additive.

Make the aluminum dust and the special slop have a Chemical reflect . then produce Hydrogen to make the concrete

slop to expanding or swell,foam . Next , put them into the curing room to concreting cutting steaming curing . last ,

there will bacome the light brick . the porous rate is 70-80%.

  3. Advantages

   (1)  light weight

      Areated concrete density is usually 400-700kg/m³,(according the market ti produce ),same as 1/3 of clay brick and  1/5 common

concrete.So use the Light brick can reduce the weight of the build more ,and also reduce the  beam of roof and pillar press best . then

you can see ,it can save the material and cost ,it also fighting shaking .

  (2)  keeping temperature

     It has many are porous ,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as  1/4 or 1/5 of clay brick ,so it is best  materials

now in the world .

   (3) have many kinds material ,have lowest waste

Main Material : coal ash sand waste mine material coal stonestone dust and other silicon materials .

   (4) Save more land

when produce 10000 m³ light weight brick ,will use  4200 Ton coal ash ,and save coal ash using area 0.5 mu,save burning clay brick

5 mu .

 4.  The else

1.The steel material is supplied by jinan steel company , it is the most famous steel company in china and the whole world .the price

higher than others , The quality is nearly highest .the mould material is manganese steel ,and heating treat. The shell of the tank is made

of manganese steel .so it is solid and durable.

  Many companies cant do this.

2. We have the advanced and vocational technology researching team .we can make the mould according to the requirements of the clients

quickly. the machine line designs absorb advantages of product of Germany . And U.S.A which possess the most advanced technology in

 this industry in the world.

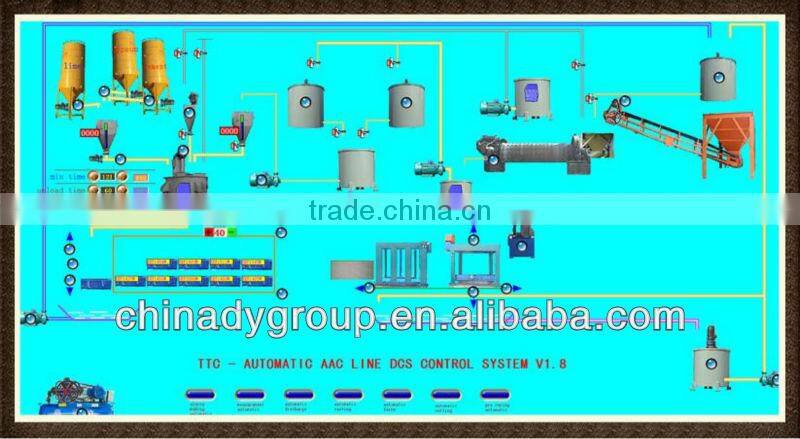

3. The advanced control unite is easy to operate ,it combine the internal achievement and the international famous result. It also can scan

the breakdowns automatically. The screen is touching operate.

whole  machine, so  as  to  adjust  the  vibration to optimum  efficiency.

4.We have the perfect service system. There are our service offices in all the country .  We also have a vocational international service team

for international clients ,they have many experiences in service .

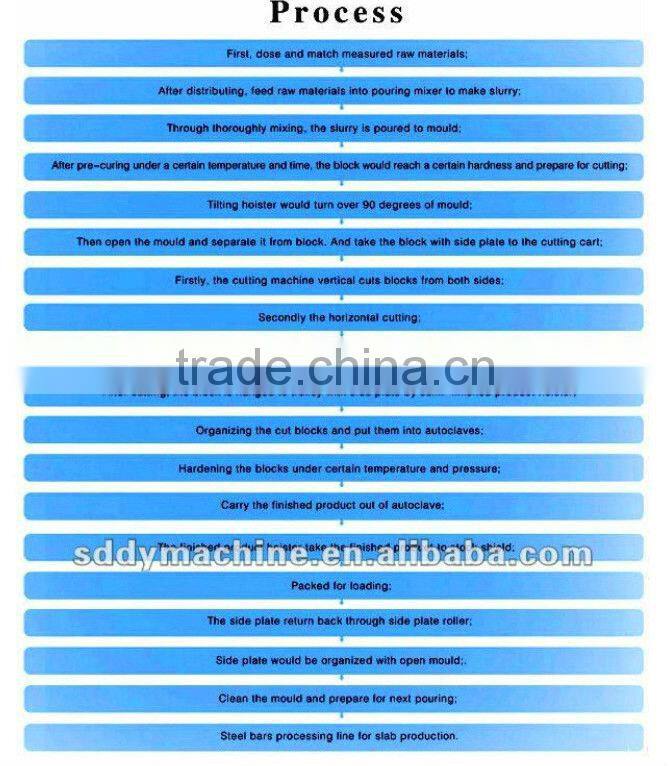

5.The Production Line

9.Detailed Product Description

 aac   Production Line/Autoclaved Aerated Concrete Production Line

 We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have

exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.

 We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.

10.Capacity: from 50000 cubic meter to 300,000 cubic meters per year.

Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.,

1        Product weight is according to 600kg/m3 to control.

 2        annual capacity 200,000M3.

 3        set raw  material proportion: cement 8%, raw lime 16%, flyash 73%, gypsum 3%, aluminum paste powder 500g/M3.

 4        water and material rate 0.63:1

 5        one mould product 2.88M3

 6        Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.

 7        casting slurry temperature 38-42 degree

 8        body quiet stop. Time is 1.5-2.5hours, temperature 50-60 degree, after quiet stop body strength is 0.15-0.18Mpa

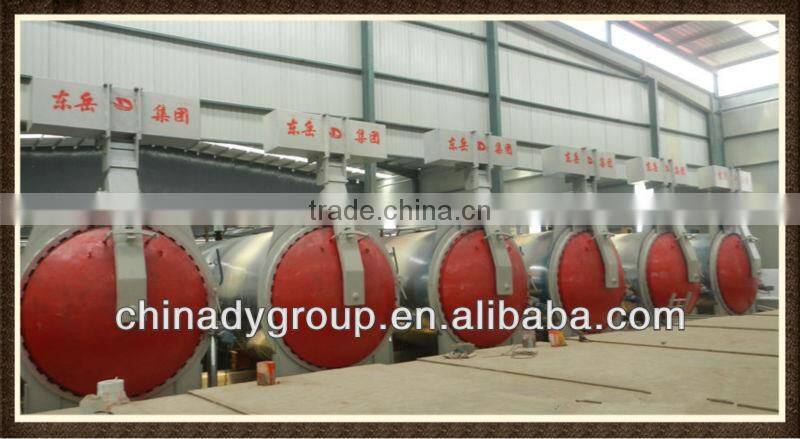

 9        Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa,

total 6.5 hours.

 11.Cement lime fly ash style aerated block raw material proportion

12. Cement lime Sand style aerated block raw material proportion

Reference: cement is 42.5 Portland or 42.5 common cement

Aluminum power paste calculate to use according to 600kg/m³ Remark: the accurate batching rate is adjustable according to the raw material locally

.

"Approaching perfection Pursuing Prominence", "Dongyue Machine " is your best option
