America Investors Qt4-15 Brick Making Machine Price
- Qingdao
- T/T Credit Card
You May Like
-
Multifunctional Brick Making Machine for Sri Lanka for Wholesales
-
Big Discount Price List of Concrete Block Making Machine
-
QT4-15 Concrete Block Making Machine Price in India
-
Top Sell Concrete Block Making Machine/automatic Cement Brick Making Machine/hollow Block Making Machine
-
QT4-24 Top Quality Low Price Block Making Machine for Sale Dongyue Brand
-
Prefabricated Concrete Blocks/ Foam Concrete Block/ Decortive Concrete Block
Product Details
| Condition | New | Type | Curbstone Block Machine | |
| Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | No | |
| Capacity | 20000PCS/8HRS (230X110X70mm) | Place of Origin | Shandong, China | |
| Brand Name | Dongyue Automatic Block Machine Line | Model Number | QT4-15C | |
| Voltage | As per local requests | Power | 21.8KW | |
| Dimension(L*W*H) | 4000X1800X2800mm | Certification | CE/SGS/ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
america investors qt4-15 brick making machine price
1.QT4-15C Automatic hollow block making machine technical parameters
Dimension of host machine | 2440×2000×2600mm | Host machine power | 25KW |
Moulding area | 400×800mm | Vibration force | 40KN |
Moulding period | 15-25S | Capacity | 68.25KVA |
The size of the pallet | 1010×550×20/25mm | Mixer model | JS500 |
Weight of the host machine | 5T | General water Consumption | 4T/every day |
Voltage | as per local requests |
2.QT4-15C Automatic hollow block machine production capacity
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
500x150x200 | 5 | 1200 | 9600 |
400X100X200 | 8 | 1440-1680 | 11520-13440 |
400X150X200 | 6 | 1080-1260 | 8640-10080 |
400X200X200 | 4 | 720-840 | 5760-6720 |
400X250X200 | 3 | 540-630 | 4320-5040 |
Paver:200X100X60
| 14 | 2520-2940 | 20160-23520 |
Paver:200X163X60 | 8 | 1440-1680 | 11520-13440 |
* Capacity Mentioned is indicative only actual capacity varies with operator efficiency and material quality etc.
3.QT4-15C Automatic hollow block machine production process
1)Material dosing system
Sand ,stone chips are loaded in batching machine,batching machine will scale each materail and transpor the material to hopper in mixer,at the same time cement is stored in cement silo and is transported to the mixer by screw conveyor..
2) Mixing system
Automatic mixer machine will add the water and measure it by timer.Then mixer the cement,sand,stone chips and water.
3)Block press process
The mixed raw material will be transported to the hopper on block machine.The block machine will scatter the material in the down mould area.Then press the block into block shape.
4)Automatic stacker system
The stacker will stack the block,then use forklift to transport the block to yard for curing.
4.Pictures of QT4-15
5.Packaging and shipping

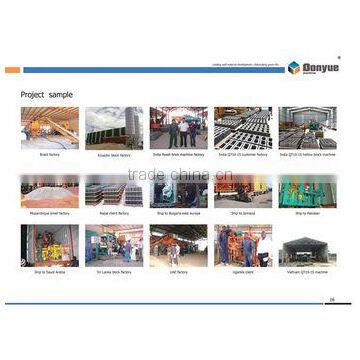

6 Our factory and our clients
1 Are you factory or a trade company.
We are factory, manufacture of brick making machine.
2 What kind of payment terms do you accept?
We accept T/T, L/C, Westunion
3 Can I visit your factory?
Yes, welcome to visit our factory, we are friends more than business.
4 How long is your warranty?
The warranty is 12 monthes.
5 Do you supply after-sale service?
Yes, we supply professional after-sale service.We have 2 office and 2 sparts store in India.
I'm William from Dongyue Machinery Group Co.,Ltd, manufacture all kinds of brick making machines. Call me, let's talk details !
