DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine

DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine photo-1
DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine photo-2
DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine photo-3
DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine photo-4
DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine photo-5
DY-150TB Hydraulic Forming Machine/baking Free Machine /paver Making Machine photo-6
US$ 6,400 - 7,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Curbstone Block Machine, paver making machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Curbstone Block Machine, paver making machine
Brick Raw Material Cement
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 1800PCS/HR
Place of Origin Shandong, China
Brand Name DONGYUE
Model Number DY-150TB
Voltage 380V/220V/ (adjustable)
Power 11kw
Dimension(L*W*H) 2200(L)*2300(W)*2000(H)mm
Certification ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

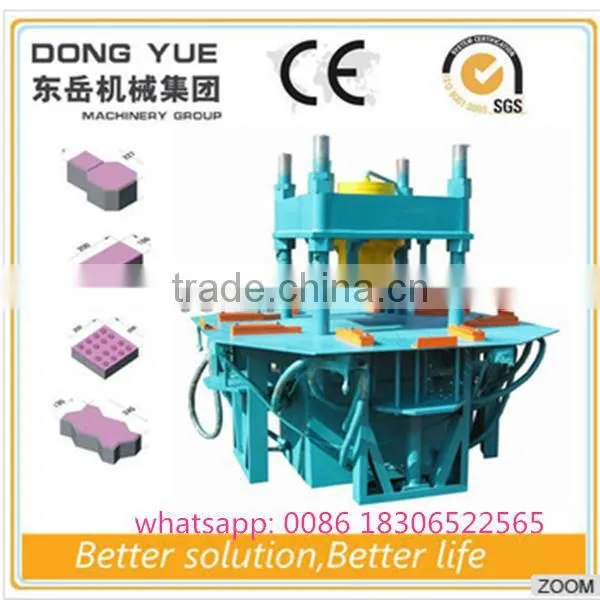

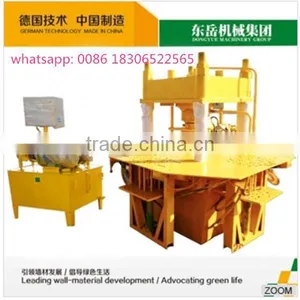

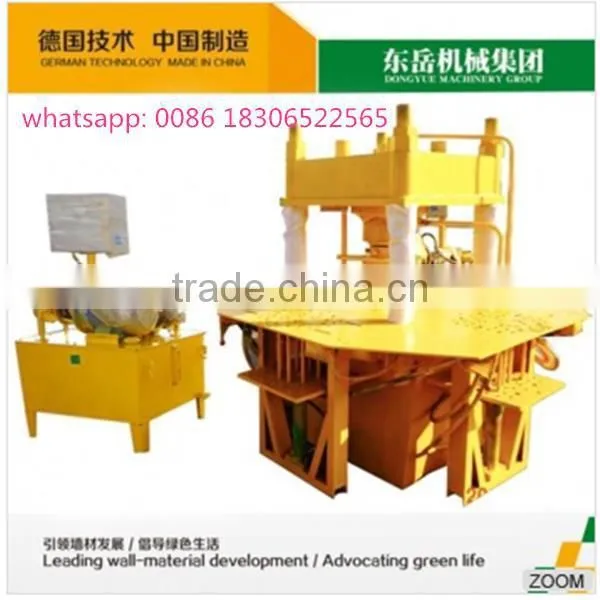

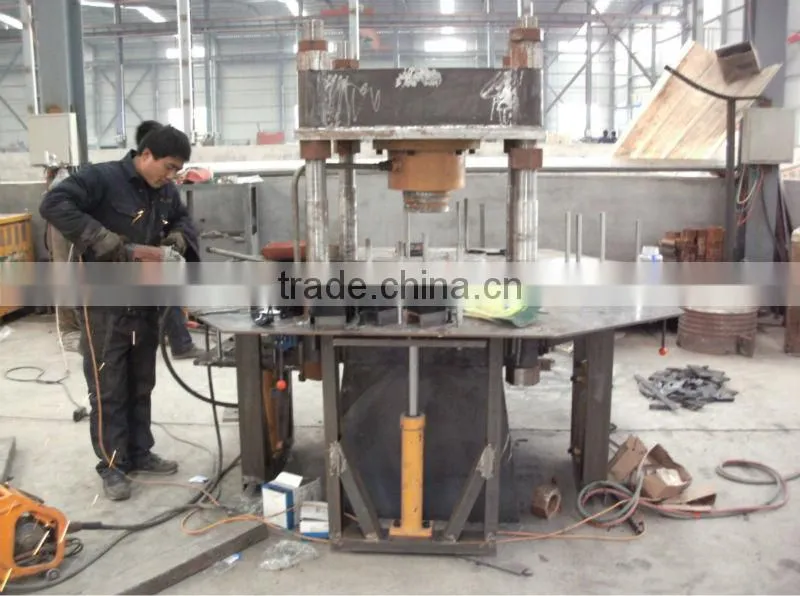

 DY-150TB hydraulic forming machine

DY-150TB hydraulic forming machine/baking free machine /paver making machineINTRODUCTION OF DY-150TB



DY150TB manual interlocking brick making machine can make various color pavers,interlocking bricks and kerbstone.The maximum kerbstone length is 500mm.



It makes use of hydraulic pressure,the block is of high strength.Four people operates in four directions,the production capacity is 3000-4000pcs/8hrs.



DY-150TB interlocking brick machine does not need instalaltion, After connecting with power,you can start production.







DY-150TB hydraform interlocking block making machine technical parameter



Max pressure

150KN

Total power

11kw

production

1500-2000 blocks/day

Machine weight

3200kg

Machine size

9300x2200x3650mm

Maximum specification

500x500x150mm



theoretical workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status.





 DY-150TB hydraulic forming machine/baking free machine /paver making machine

DY-150T Manual interlocking brick making machine production

2.DY-150TB hydraform interlocking block making machine production capacity



Size(LxWxH)

Pcs/ 8 Hr

Size(LxWxH)

Pcs/ 8 Hr



Paver:200X100X60

1800-2000pcs



Paver:250x250x60

1800-2000pcs



Paver:200X165X60

1800-2000pcs



3600-4000pcs



Paver:225X112.5X60

1800-2000pcs



1800-2000pcs





DY-150TB hydraulic forming machine/baking free machine /paver making machine

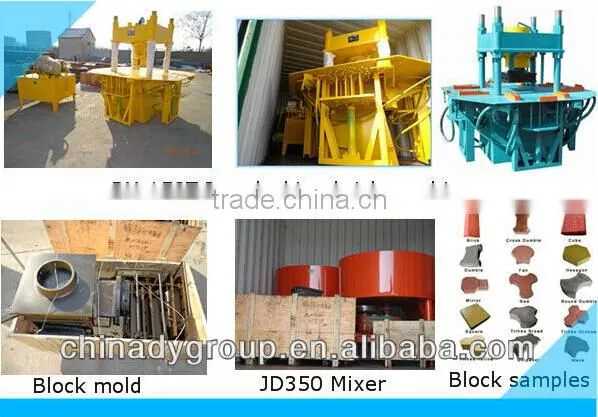

DY-150T hydraform interlocking block making machine all parts details



(1)Our products are mainly producing color blocks/bricks, curb stones, interlock blocks, etc.

(2)DY-150TB adopts international brand-name Germany Siemens motors and Japan Mitsubishi PLC, reliable quality, low fault rate and durable. The material of whole frame is national standard steel, with high strength and reliable quality.

(3)The hydraulic oil jack is as same as the one used in large mechanical equipmentDY-150TB hydraulic forming machine/baking free machine /paver making machineDY-150TB hydraulic forming machine/baking free machine /paver making machine
