China Block Machine/ Interlocking Block Machines/concrete Block Machine/automatic Concrete QT4-25

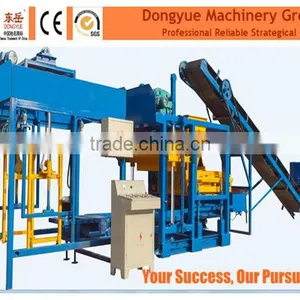

China Block Machine/ Interlocking Block Machines/concrete Block Machine/automatic Concrete QT4-25 photo-1
US$ 45,000 - 51,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Hollow Block Making Machine, Automatic China block machine/ hollow/interlock block making machine
Brick Raw Material:
Cement
Processing:
Brick Production Line
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Hollow Block Making Machine, Automatic China block machine/ hollow/interlock block making machine
Brick Raw Material Cement
Processing Brick Production Line
Method Vacuum Extruder
Automatic Yes
Capacity 23000pcs/day
Place of Origin Shandong, China
Brand Name Dongyue Brand
Model Number QT4-25
Voltage 220/240/380/440V,adapt to your local voltage
Power 16.35(host machine power)
Dimension(L*W*H) 3700*2100*2300(host machine size)
Certification ISO/CE/SGS
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Product Name:  China block machine/ hollow block making machine/interlocking block machines/concrete block machine/automatic concrete QT4-25

Main Parameters:

Dimension of Host Machine

3700×2100×2300mm

Host Machine Power

23.7KW

Moulding Area

850×550mm

Vibration Force

35.5KN

Moulding Period

20S

Mixer Model

JQ500

Pallet Size

850×550×30mm

General Water Consumption

5-8T/every day

Weight of the Host Machine

3T

Voltage

Clients Local Industrial Voltage

Number of Motor Vibrator

2

Number of Hydraulic Cylinders

3

Different kinds of blocks and production capactiy

China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25

Size(LxWxH)

Pcs/Mould

Pcs/ Hr

Pcs/ 8 Hr

400X100X200

7

1008

8064

400X150X200

5

720

5760

400X200X200

4

576

4608

400X250X200

3

432

3456

230X110X70

20

2880

23040

Main Advantages

(1) Aautomatic block making machine, it can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure

China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25Ganrantee

(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time, we will supply per day 24 hours service.

(2)Within one year, if the client meet the unsolvable questions ,we could fly to client's place to help.

 Certificates

 China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25China block machine/ interlocking block machines/concrete block machine/automatic concrete QT4-25

Video Link:

/watch?v=ajPDe3rivQU; /watch v=gl38BdywmNM



Welcome Sincerely to Visit our Plant!!!
