Specifications
solid waste incineration boiler1.double drum ,assembly type.
pact structure,large heating surface.
3.safe and reliabi

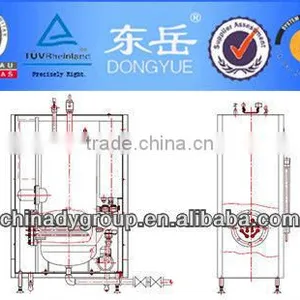

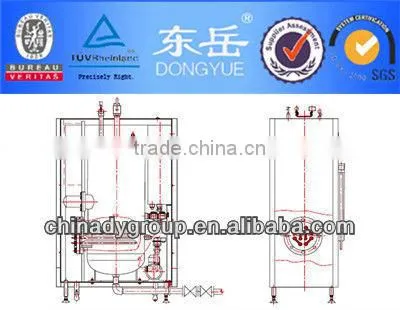

solid waste incineration boiler
Product features:
1. The design of double drum, assembly type, andmonolayer arrangement of the boiler room, features the following advantages: compact structure, large heating surfaces, safe and reliabile operation, short construction period, and low installation cost.
2. The furnace shall employ tuff device and cyclone reburning chamber, decreasing the dust contained in the flue gas. The tail shall be equipped with gas handling equipment, which shall make the dust emission concentration to reach to the national primary standard.
3. The feeding device with rational structure shall use mechanical bond wind feeding, featuring the following advantages: uniform, reliable, and high mechnization degree.
4. The series boiler was appraised as technology development innovation products by Linyi economic and trade commission.
Main Specifications of LC Series Watste Product Burning Boiler | ||||
boiler model project | LC35-5-1.25 | LC40-5-1.25 | LC60-6-1.25 | LC60-8-1.25 |
rated steam capacity t/h | 5 | 4-6 | 6 | 8 |
rated steam pressure Mpa | 1.25 | 1.25 | 1.25 | 1.25 |
steam temperature °C | saturated | saturated | saturated | saturated |
burning way | chain grate | chain grate | reciprocating grate | chain grate |
fuel type | coal,Firewood | rubbish of paper making material(humidity<20%,sand content<10%) | rubbish of paper making material(humidity<20%,sand content<10%) | rubbish of paper making material(humidity<20%,sand content<10%) |
grate area m 2 | 10 | 11.2 | 8.9 | 11.2 |
the body heating surface m 2 | 188.9 | 232.2 | 186 | 254.7 |
rear part heating surface m 2 | 99.3 | 99.3 | 255 | 99.3 |
Weight of biggest part for transportation t | 23 | 28 | 34 | 34 |
dimensions of biggest part for transportation (length x width x height) mm | 5400x2800 x3550 | 6450x3230 x3550 | 8750x3240 x3550 | 8100x3230 x3550 |
daily dealing with rubbish capacity t/d | ~35 | 25~40 | 60 | 60 |
| biolobic | plastic | biolobic material | |
Notes:The other specificatious can be designed and made according to user"s request. | ||||
