China New Building Material AAC Wall Panel

China New Building Material AAC Wall Panel photo-1
China New Building Material AAC Wall Panel photo-2
China New Building Material AAC Wall Panel photo-3
China New Building Material AAC Wall Panel photo-4
China New Building Material AAC Wall Panel photo-5
China New Building Material AAC Wall Panel photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, aac block
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, aac block
Brick Raw Material Concrete
Processing Other, autoclaved aerated
Method Other, autoclaved aerated, Aerated Autoclaved
Automatic Yes
Capacity 300,000 cubic meter
Place of Origin Shandong, China
Brand Name Dongyue Brand AAC block
Model Number B05
Dimension(L*W*H) 600*100*100 or customerized
Certification CE, SGS, ISO9001

low price Light weight wall building AAC block for sell from Chinese manufacture Dongyue brand



Product Description

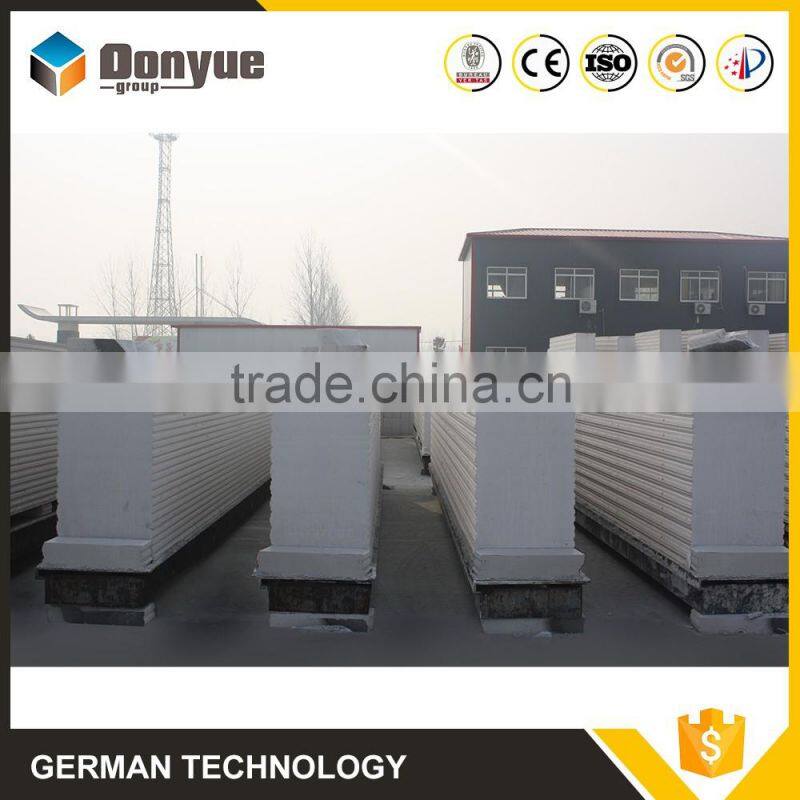

 China new building material AAC wall panel

AAC block (autoclaved aerated concrete block)  is also known as autoclaved cellular concrete (ACC) or autoclaved lightweight concrete (ALC).  Aerated concrete were created by Hofman from Czech Republic in 1889 and were improved by  J.A.Eriksson in 1923.AAC block is a unique and excellent type of construction material with cement, lime, silica sand and foaming materials as the main raw materials. The chemical reactiondue to the aluminum paste provides AAC its distinct porous structure, lightness, and insulation properties, completely different compared to other lightweight concrete materials. The porous crystalline AAC block is produced through high temperature, high pressure and steaming process and has excellent performance in fire resistance, anti-seismic, and warm keeping.





 China new building material AAC wall panel



China new building material AAC wall panel





AAC block Specifications



length(mm)

   600

width(mm) 100, 120, 125,150, 180, 200, 250,   300
Height(mm)     200, 240, 250, 300, 400

  other specifications can be provided after achieving consensus through consultation







  It is called AAC for those small  pores inside after foaming. The advantageswhich make it one of the most popular wall materials are as follows:



  Lightweight :  density of AAC block is 400-700kg/m3,1/3 of solid clay blocks, 1/5 of common concrete blocks.



Type

AAC

blocks

Solid clay BlocksHollow BlocksCeramsite Concrete BlocksNormal Concrete Blocks
Density(kg/m3)400-7001600-1800900-17001400-18002000-2400







Fire proof : main materials of AAC blocks are inorganic. it has features of keeping temperature, resisting fire and

releasing no harmful gas.



  Sound insulation noise reduction :with distinctive large quantities of pores inside, AAC blocks have great

sound insulation, its sound insulation index of 100mm thick can achieve 40.8db



Good heat preservation,energy saving : with a large number of pores inside, AAC blocks have good heat preservation



♥  Reducing project cost and Convenient construction : surface of AAC blocks are smooth, it needn't plastering , lots of decoration costs will be saved. It can be sawed, cut, drilled freely and bound with other building materials which is favorable for building



Anti-seismic :AAC blocks have light weight, so it have low inertia and good performance on anti-seismic



  Environmental protection :slag, flyash, mine waste and other industrial wastes can be used as raw material of ALC panel,which is friendly to environment



  AAC Technical Date



Bulk density grade

B04

B05

B06

B07

Normal dry
 density (kg/m3)

Prime (A)≤

400

500

600

700

Acceptable (B)≤

425

525

625

725

Strength grade
 (MPa)

Prime (A)

A2.5

A3.5

A5.0

A5.5

Acceptable (B)

A2.0

A2.5

A3.5

A4.0

 Drying contraction
 (mm/m)

Standard method

  0.5

   0.5

0.5

0.5

Rapid method

 0.8

  0.8

0.8

0.8

Frost resistance

Weight less %

5

5

5

4

Strength (Mpa)≥

Prime (A)

1.60

2.8

4.0

4.5

Acceptable (B)

2

2.8

3.2

Thermal conductivity

Dry (w/m.k)

0.11

0.13

0.15

0.16



 China new building material AAC wall panelChina new building material AAC wall panelChina new building material AAC wall panel



China new building material AAC wall panel







AAC blocks are superior lightweight new wall materials which can save energy, utilize industrial solid wastes and protect environment. It can not only replace burnt solid blocks, but also do as thermal insulation materials. AAC is the most economic and simplest way to realize building energy conservation.





China new building material AAC wall panel
