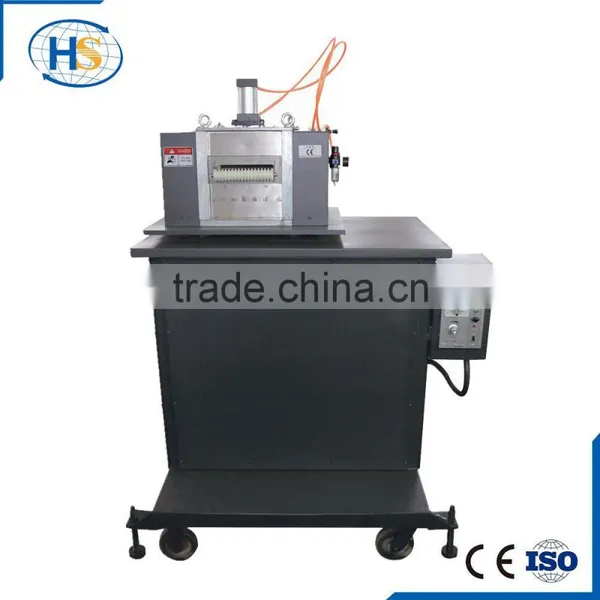

CE Gantry Type Granulator Specially for Soft Rubber
Characteristics of the Plastic Pelletizer/Cutter/Granulator Machine
High quality & reasonable price
Low noise
Easy operation
Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
Produced as customer required
Motor can be controlled by Frequent Inverter control to meet customer productivity demand.
Parameter Table of Various Pelletizer/Cutter/Granulator Machine
Model | HS-LQ 60 | HS-LQ 300 | HS-LQ 500 | HS-LQ 900 |
Max output | 60kg/hr | 300kg/hr | 500kg/hr | 900kg/hr |
No. of strand | 6 | 15 | 625 | 42 |
Standard pellet | 3*3mm | 3*3mm | 3x3mm | 3x3mm |
Cutter dimension (L*W*H) | 120x60mm, 14 tooth | 120x100mm, 32 tooth | 200x200mm, 32 tooth | 200x300mm, 32 tooth |
Effective rotation speed | 350-1000rpm | 350-1000rpm | 350-1000rpm | 350-1000rpm |
Haul off speed | 0-36m/min | 0-96m/min | 0-96m/min | 0-96m/min |
Motor power | 1.5kw | 3kw | 5.5kw | 11kw |
Rotated cutter clearance | 0.06-0.12mm | 0.08-0.12mm | 0.08-0.12mm | 0.08-0.12mm |
Leading roller | PU | PU | PU | PU |
Driver control | Frequency inverter | |||
AC motor | 3 Phase / 380 V / 50 Hz | |||
Material of cutter | High-speed Steel / Hard Alloy | |||
The Pellets Application
Mixing Nature-Changing → PE/PP+SBS;PP+NBR;EVA+Silicon RubberPP+ABS(Alloy) ; PP+PEProcess → Representative Materials
Filling Nature-Changing→PP/PE/EVA+Calcium Carbonate/Talcum Powder/Titanic Powder ;
ABS+Aluminum Hydroxide/Magnesium Hydroxide/Antimony Oxide ;
PP/ABS+Ferrous Powder/Sulphuric Powder/Ceramic Powder
Functional Machine Pellets → PP/ABS+Anti-Burning Agent and Other Auxiliary Agent
PE/PP+Starch ; PE+Frog-Preventing Dlipper/Stabilizer ; PE/EVA/ABS+Carbon Black
Colored Machine Pellets → PE/PP/ABS/EVA+Pigment and Auxiliary
Intensified Glass Fibres and Carbon Fibres → PP/ABS+Long Fibre/Small Fibre/Carbon Fibre/Crystals
Various Cables → EVA/PVC/PP Lnsulating Cables; PE peroxide
Special Materials → EVA Heat-Melting Glue; PP Cigarette Filterial
Heat-Susceptible Plastics → PVC Cables;EVA Sole; PE Peroxide Crossing Cables
PE Silicon Alkyl Crossing Cables; PE Crossing Piping; PE/EVA Crossing Shield
Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
Nanjing Haisi Extrusion Equipment Co., Ltd. has a professional sales team, personal contact with customers, regular reminders and solve installation, maintenance, repair and other problems encountered by customers in the mechanical operation of the equipment failure analysis and quick to do the maintenance program, in any country and region can get our professional and technical personnel of the most timely and quality service.
Before-sale:
*Introduce products in detail
*Recommend suitable solution
*Offer test
During Manufacturing:
*Provide layout and engineering conditions
*Offer screw plan and related documents
*Inform the project processing status
*Insure the product designed in accordance with technical document
After-sale:
*Provide installation, commissioning and training
*Offer spare parts
*Provide necessary techinical support and update infoamation
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
