Plastic Film / Bottles Water Cooling Recycling Pelletizer Machine

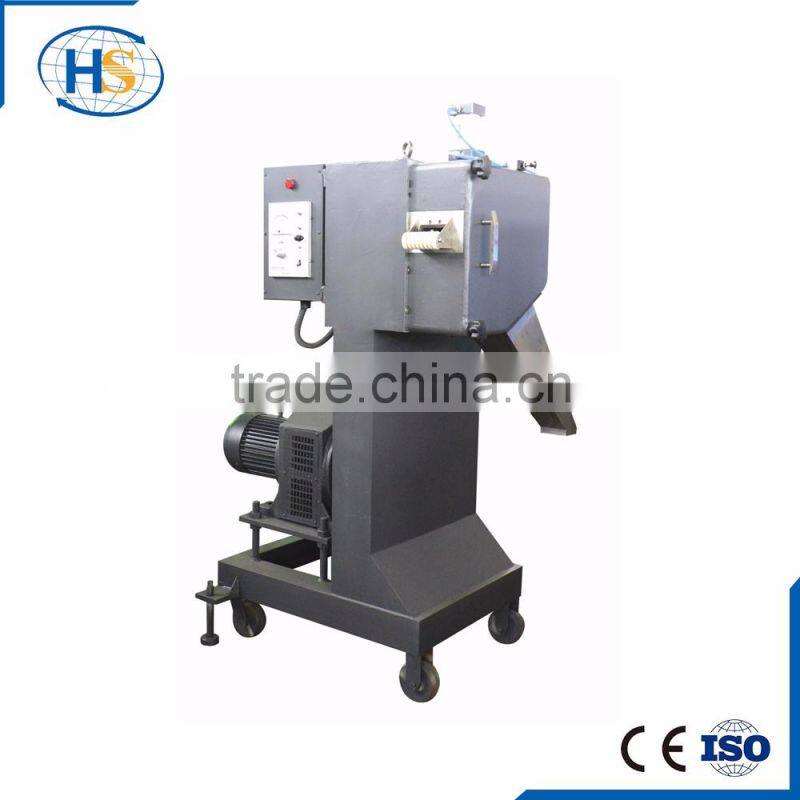

Plastic Film / Bottles Water Cooling Recycling Pelletizer Machine photo-1
US$ 999 - 1,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Recycling Granulator
Capacity:
300-500kg/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Recycling Granulator
Capacity 300-500kg/h
Place of Origin Jiangsu, China
Brand Name Haisi
Model Number HS-LQ
Material Other, PP, PA, PBT , ABS, AS, PC, POM, PET, etc.
Screw Design Double
Voltage 220V/380V
Power 0.75-7.5KW
Dimension(L*W*H) 1530*750*1630 mm
Weight 1500-4000kg
Certification CE ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Plastic Film / Bottles Water Cooling Recycling Pelletizer Machine
Model
HS-LQ 60
HS-LQ 300
HS-LQ 500
HS-LQ 900
Max output
60kg/hr
300kg/hr
 500kg/hr
900kg/hr
No. of strand
6
15
625
42
Standard pellet
3*3mm
3*3mm
3x3mm
3x3mm
Cutter dimension
(L*W*H)
120x60mm,
14 tooth
120x100mm,
32 tooth
200x200mm,
32 tooth
200x300mm,
32 tooth
Effective rotation speed
350-1000rpm
350-1000rpm
350-1000rpm
350-1000rpm
Haul off speed
0-36m/min
0-96m/min
0-96m/min
0-96m/min
Motor power
1.5kw
3kw
5.5kw
11kw
Rotated cutter clearance
0.06-0.12mm
0.08-0.12mm
0.08-0.12mm
0.08-0.12mm
Leading roller
PU
PU
PU
PU
Driver control
Frequency inverter
AC motor
3 Phase / 380 V / 50 Hz
Material of cutter
High-speed Steel / Hard Alloy

Characteristics of the Plastic Pelletizer/Cutter/Granulator Machine

High quality & reasonable price
Low noise
Easy operation
Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
Produced as customer required
Motor can be controlled by Frequent Inverter control to meet customer productivity demand.

The Pellets Application

Mixing Nature-Changing → PE/PP+SBS;PP+NBR;EVA+Silicon RubberPP+ABS(Alloy) ; PP+PEProcess → Representative Materials
Filling Nature-Changing→PP/PE/EVA+Calcium Carbonate/Talcum Powder/Titanic Powder ;
ABS+Aluminum Hydroxide/Magnesium Hydroxide/Antimony Oxide ;
PP/ABS+Ferrous Powder/Sulphuric Powder/Ceramic Powder
Functional Machine Pellets → PP/ABS+Anti-Burning Agent and Other Auxiliary Agent
PE/PP+Starch ; PE+Frog-Preventing Dlipper/Stabilizer ; PE/EVA/ABS+Carbon Black
Colored Machine Pellets → PE/PP/ABS/EVA+Pigment and Auxiliary
Intensified Glass Fibres and Carbon Fibres → PP/ABS+Long Fibre/Small Fibre/Carbon Fibre/Crystals
Various Cables → EVA/PVC/PP Lnsulating Cables; PE peroxide
Special Materials → EVA Heat-Melting Glue; PP Cigarette Filterial
Heat-Susceptible Plastics → PVC Cables;EVA Sole; PE Peroxide Crossing Cables
PE Silicon Alkyl Crossing Cables; PE Crossing Piping; PE/EVA Crossing Shield

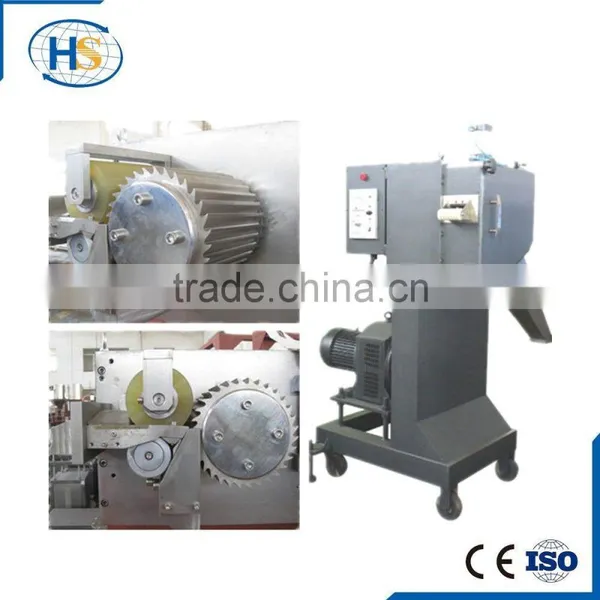

Products Show
Our Service

Before-sale:
*Introduce products in detail
*Recommend suitable solution
*Offer test

 During Manufacturing:
*Provide layout and engineering conditions
*Offer screw plan and related documents
*Inform the project processing status
*Insure the product designed in accordance with technical document

 After-sale:
*Provide installation, commissioning and training
*Offer spare parts
*Provide necessary techinical support and update infoamation

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

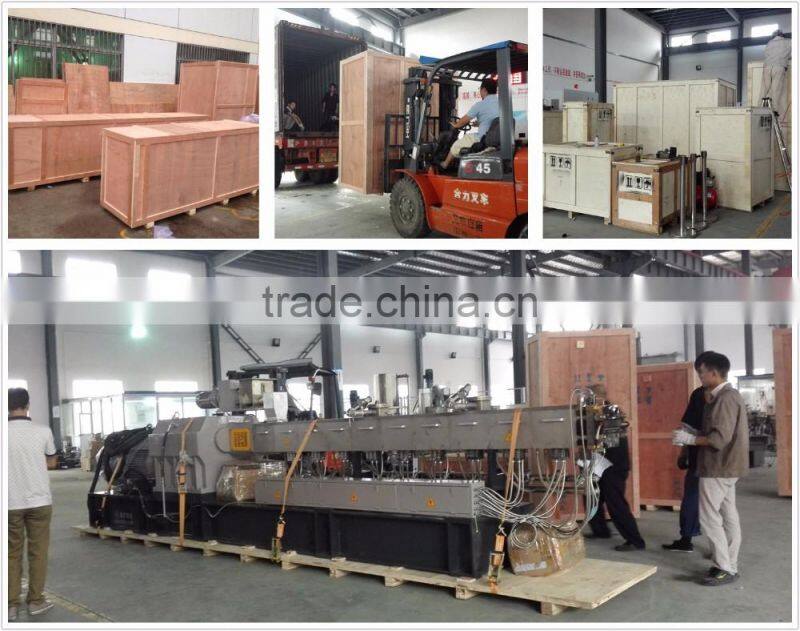

Packing & Delivery
Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
Our Certifications
FAQ

1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.

2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.

3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.

4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.

5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
