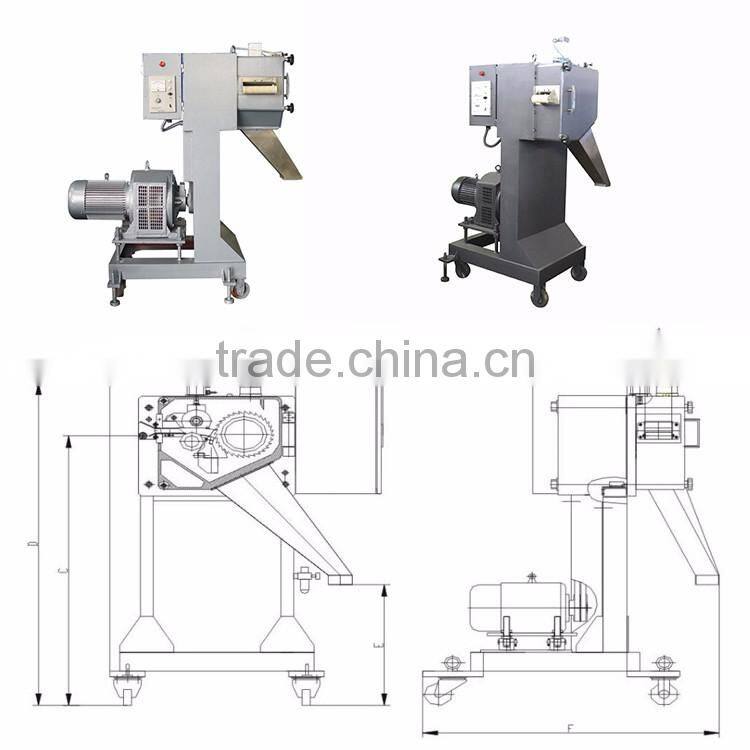

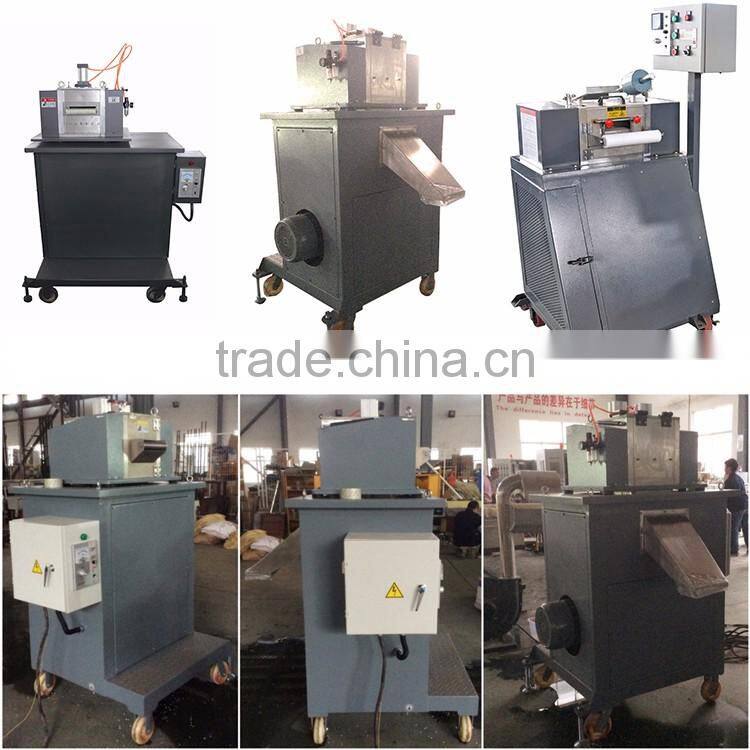

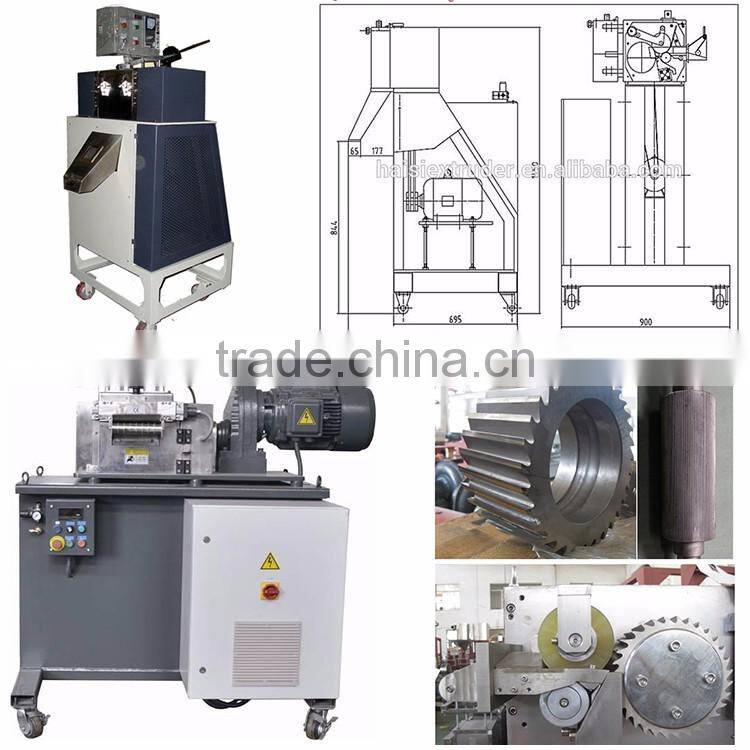

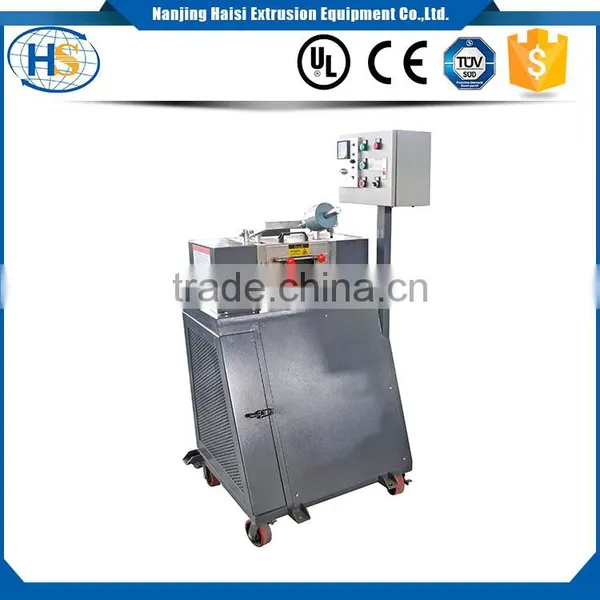

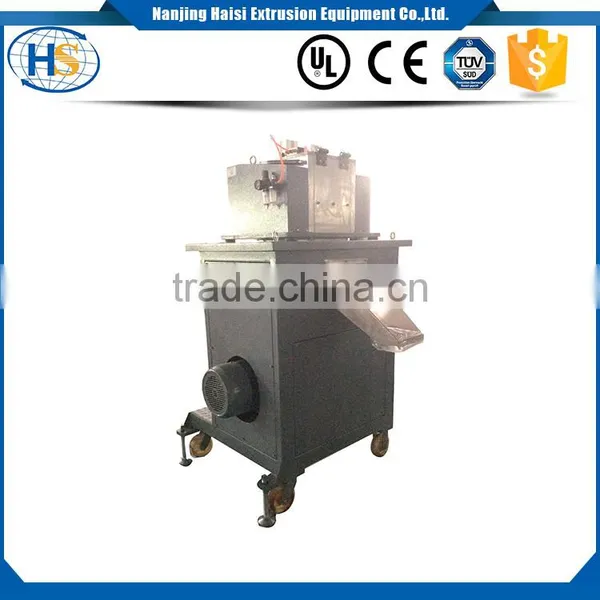

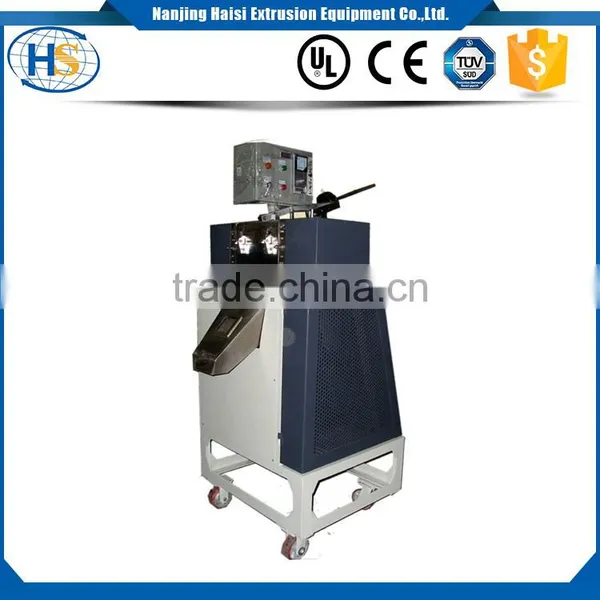

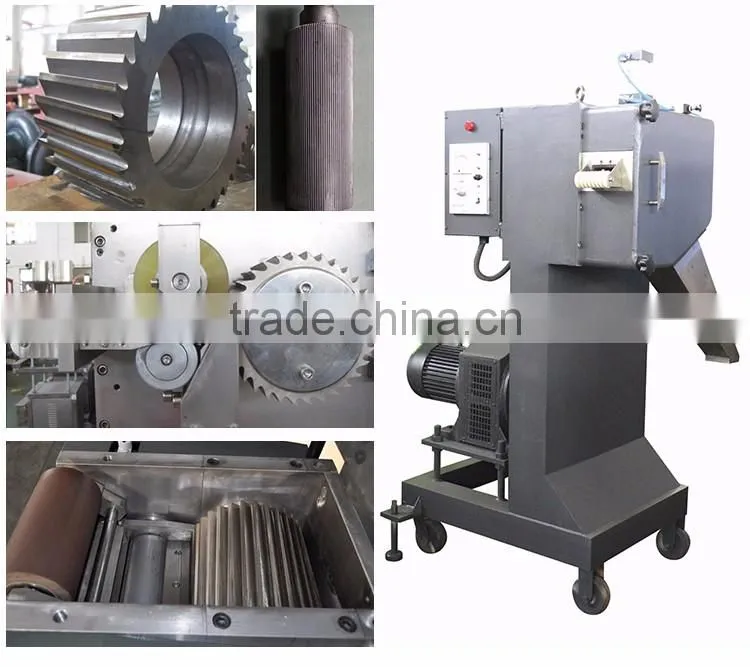

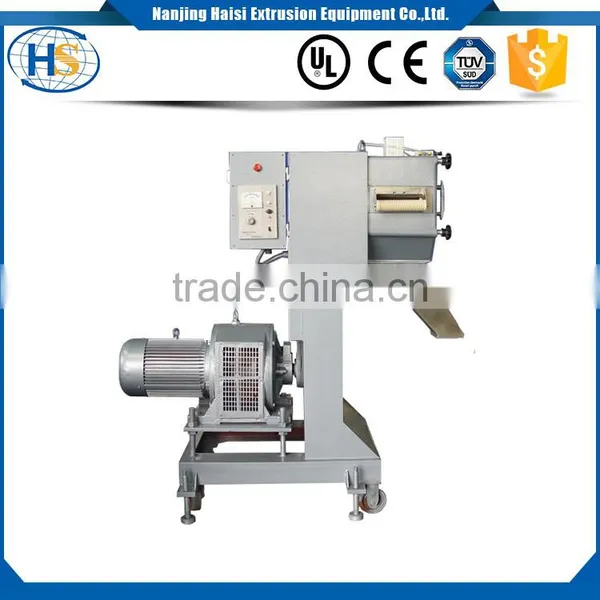

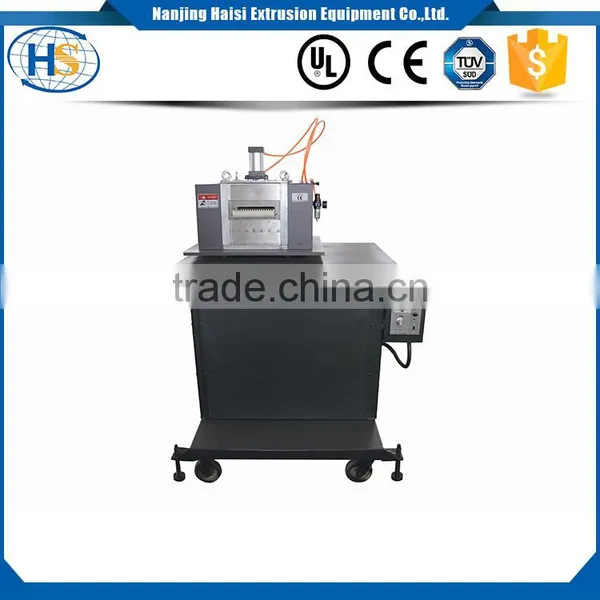

CE&ISO 3*3mm pellet plastic material plastic strand pelletizer cutter
| Model | HS-LQ 60 | HS-LQ 300 | HS-LQ 500 | HS-LQ 900 |
| Max output | 60kg/hr | 300kg/hr | 500kg/hr | 900kg/hr |
| No. of strand | 6 | 15 | 625 | 42 |
| Standard pellet | 3x3mm | 3x3mm | 3x3mm | 3x3mm |
| Cutter dimension | 120x60mm | 120x100mm | 200x200mm | 200x300mm |
| (L*W*H) | 14 tooth | 32 tooth | 32 tooth | 32 tooth |
| Effective rotation speed | 350-1000rpm | 350-1000rpm | 350-1000rpm | 350-1000rpm |
| Haul off speed | 0-36m/min | 0-96m/min | 0-96m/min | 0-96m/min |
| Motor power | 1.5kw | 3kw | 5.5kw | 11kw |
| Rotated cutter clearance | 0.06-0.12mm | 0.08-0.12mm | 0.08-0.12mm | 0.08-0.12mm |
| Leading roller | PU | PU | PU | PU |
| Driver control | Frequency inverter | |||
| AC motor | 3 Phase / 380 V / 50 Hz | |||
| Material of cutter | High-speed Steel / Hard Alloy | |||
♦High quality & reasonable price
♦Low noise
♦Easy operation
♦Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
♦Produced as customer required
♦Motor can be controlled by Frequent Inverter control to meet customer productivity demand.
| Machine Model | Motor Power | Speed Control | Number of Strand | Maximum hauling speed(m/min) | Particle size(mm) | Maximum output (kg/h) | Rotating knife dia.×L (mm) | Rotating knife teeth | Rubber diameter L(mm) | Dimension (mm) (L×W×H) |
| LQ-2000 gantry | 15~22 | Slip/Inverter | ≤60 | 96 | φ3×3 | ≤2000 | φ200×400 | 32 | φ120×400 | 1200×1180×1860 |
LQ-2000 gantry type pelletizer is the machine with highest output by far with capacity around 800~2000kg/h .Suggested cutting noodle number is 30~60.
1.Large and steady stucture,good for safe production
2.Convenien cleaning and maintenance
3.High-endurance knife and roller,good for continuous work
4.Safe and reliadle operation,equipped with safety control switch
5.High accuracy,smooth and even pellet cutting
6.Can add noise-proof cover to lower noise
7.High Accuracy,can cut soft materials
8.The highest capacity can reach aroud 2000kg/h
1. Q: Are you a factory or trading company,How is you factory extrusion experience?
A: We are a factory. 15 years experience on extrusion.Leading supplier in Nanjing city.
2.Q: How long is your machine’s guarantee time?
A: 1 year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
3. Q:What can you provide for after sale service?
A:We can send engineers to your factory for installation and training if customers‘ required
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
5. Q: If we have samples of new products, can you help to analysis and design the machine?
A:Yes, Our technical department can help to analysis, design and test the new products you offered.
6.Q:Could you afford technician team to guide ours installation and commissioning?
A:Experience engineer oversea installation service provided.
