Home > Products > Rotary Heat Exchanger > High Efficiency Air Conditioning Rotary Wheel Heat Exchanger
High Efficiency Air Conditioning Rotary Wheel Heat Exchanger
- Tianjin
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Beijing, China | |
| Brand Name | HOLTOP | Model Number | HRT500-5000 | |
| Voltage | 380V, 220V/380V | Weight | 42-2100KG | |
| Dimension(L*W*H) | 500-5000*500-5000 | Certification | CE, Eurovent, CE | |
| Warranty | 1 year | After-sales Service Provided | No overseas service provided |
Wooden Case
Product Description
Specifications
1.Enthalpy heat recuperate2.Sensible heat recovery
3.CE certified
4.The largeest production base of the country
Main features of Holtop rotary heat exchanger
1. High efficiency of total heat and sensible heat recovery
2. Double labyrinth sealing system ensures minimal air leakage.
3. Self-cleaning efforts prolong service cycle, reducing maintenance cost.
4. Double purge sector minimizes carryover from exhaust air into supply air stream.
5. Life-time-lubricated bearing requires no maintenance under normal usage.
6. Interior spokes are used to mechanically bond the rotor’s laminations to reinforce the wheel.
7. Completed range of rotor diameter from 500mm to 5000mm, rotor can be cut into 1pc to 24pcs for easy transportation, various types of housing construction is available as well.
8. Selection software for convenient selection.
Functions
Rotary heat exchanger (wheel) is mainly used in building ventilation or in the air supply/discharge system of air conditioning equipment. The wheel transfers the energy (cold or heat) contained in exhaust air to the fresh air supplied to indoor. It’s one important equipment and key technology in the field of construction energy-saving.

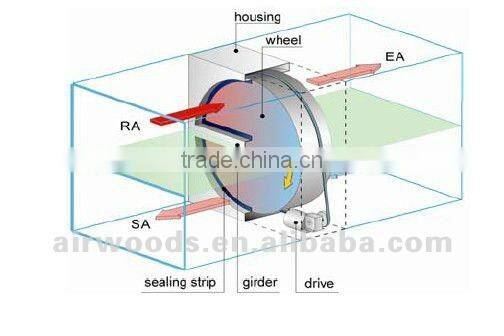

Rotary heat exchanger is composed of heat wheel, case, drive system and sealing parts. The heat wheel rotates powered by the drive system. When outdoor air passes through half of the wheel, return air passes through reversely the rest half of the wheel. In this process, about 70% to 90% heat contained in the return air can be recovered to supply air to indoor.
Working Principle
Rotary heat exchanger is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to 70% to 90%.
Wheel Materials

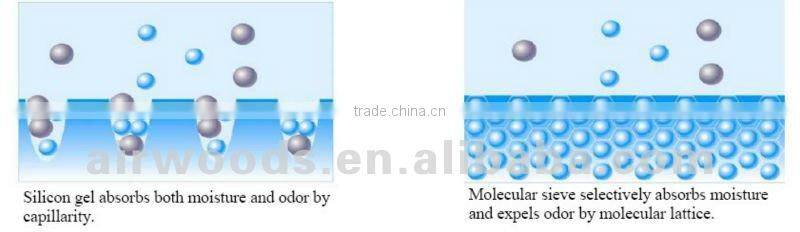

The sensible heat wheel is made by aluminum foils of 0.05mm thickness. And the total heat wheel is made by aluminum foils
coated with 3A molecular sieve of 0.07mm thickness.
Company Profile
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. Founded in 2002, it has dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments for more than 10 years. Products Through years of innovation and development, Holtop can supply a full range of products, up to 20 series and 200 specifications. The product range mainly covers: Heat Recovery Ventilators, Energy Recovery Ventilators, Rotary Heat Exchangers, Plate Heat Exchangers and Air Handling Units. Quality Holtop assures high quality products with professional R&D team, first-class production facilities and advanced management system. Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT. Numbers Holtop has 400 employees and covers an area of more than 30,000 square meters. Annual production ability of heat recovery equipment reaches 100,000 sets. Holtop supplies OEM products for Midea, LG, Hitachi, McQuay, York, Trane and Carrier. As an honor, Holtop was the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010. Mission Holtop has established business relationships with major countries in Asia, Europe and North America, and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. Holtop will always committed to the mission of delivering highly efficient and energy saving products and solutions to reduce environmental pollution, to ensure people's health and protect our earth.
