Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Chiller > Mini Water Chiller
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Air-Cooled
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scroll Type Compressor Precise Temperature Control High-end Air Cooled Cold Room Condenser UnitUS$ 100 - 10,000MOQ: 1 Set -
Copeland Digital Scroll Mushroom Factory Air Cooled Condensing SystemUS$ 100 - 10,000MOQ: 1 Set
-
Copeland Compressor Horizontal Energy Saving Air Cooled Cold Room Condenser UnitUS$ 100 - 10,000MOQ: 1 Set
-
R410a Ceiling Digital Copeland Water Cooled Condensing Unit PricesUS$ 100 - 10,000MOQ: 1 Set
-
R410a Air Cooled Condensing System for Agricultural Engineering ProjectUS$ 100 - 10,000MOQ: 1 Set
Condition
New
Type
Air-Cooled
Place of Origin
Guangdong, China
Brand Name
Benclimate
Model Number
HLB1.3-HLB3.6
Cooling Capability(kw)
1.3kW-3.6kW
Voltage
220-240/1/50
Certification
CE
Warranty
1 yaer
After-sales Service Provided
No overseas service provided

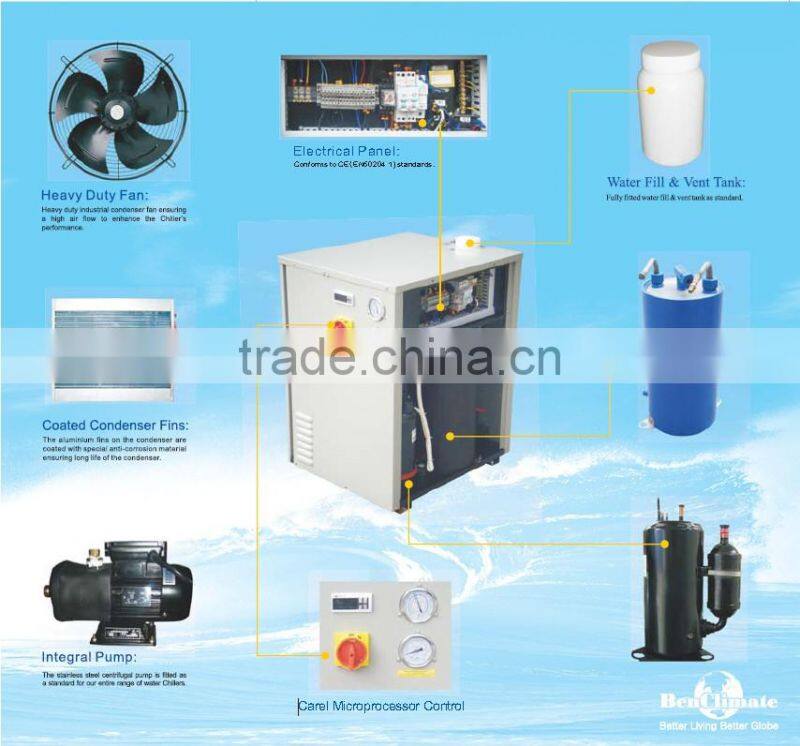

Features and Benefits
-Stainless steel large volume thermal buffer tank as standard across the entire HL-B range
-100% non-ferrous water circuit
-Microprocessor control and alarm fault display
-Fully Weatherproofed.
-Coated condensor fins to protect the aluminum condensers from corrosion
-Strong galvanized epoxy coated steel frame construction
-Improved component positioning for easy service access
Application:
Plastic&rubber,Chemical, pharmaceutical, MRI machines, Food, Breweries, printers, Engineering, Lasers,ect.
Speciications
| Product reference | HLB1.3 | HLB2.1 | HLB2.6 | HLB3.6 |
| Side or Top discharge | Side discharge | Side discharge | Side discharge | Side discharge |
| Cooling capacity(Ambient air temp.@25oC, Water outlet temp.@15oC) | 1.3kW | 2.1kW | 2.6kW | 3.6kW |
| Total absorbed power | 0.38KW | 0.67KW | 0.75KW | 1.1KW |
| Total absorbed current | 1.71 | 3.09 | 3.35 | 4.95 |
| Cooling capacity(Ambient air temp.@32oC, Water outlet temp.@7oC) | 0.94kW | 1.51kW | 1.87kW | 2.59kW |
| Total absorbed power | 0.55KW | 0.78KW | 0.92KW | 1.21KW |
| Total absorbed current | 2.53 | 3.55 | 4.21 | 7.78 |
| Power supply | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 |
| Max.input power | 0.65KW | 1.07KW | 1.2KW | 1.7KW |
| Max.input current | 2.74 | 4.94 | 5.36 | 7.9 |
| COP | 1.71 | 1.93 | 2.03 | 2.14 |
| Heat exchanger type and manufacturer name | Copper tubes-aluminum fin coil type heat exchanger /Join-Technology | Copper tubes-aluminum fin coil type heat exchanger /Join-Technology | Copper tubes-aluminum fin coil type heat exchanger /Join-Technology | Copper tubes-aluminum fin coil type heat exchanger /Join-Technology |
| Buffer tank volume(L) | 10 | 11 | 11 | 11 |
| Condensor material, treatment and supplier name | Hydrophilic pipe-fin heat exchanger/YaoHua | Hydrophilic pipe-fin heat exchanger/YaoHua | Hydrophilic pipe-fin heat exchanger/YaoHua | Hydrophilic pipe-fin heat exchanger/YaoHua |
| Compressor type and manufacturer name | HIGHLY/HITACHI/Panasonic/Mitsubishi | HIGHLY/HITACHI/Panasonic/Mitsubishi | HIGHLY/HITACHI/Panasonic/Mitsubishi | HIGHLY/HITACHI/Panasonic/Mitsubishi |
| Max. compressor absorbed power | 0.42KW | 0.8KW | 0.93KW | 1.43KW |
| Max. compressor absorbed current | 1.68 | 3.69 | 4.11 | 6.63 |
| Refrigerant type | R134A | R410A | R410A | R410A |
| Throttling device and supplier name | Electronic expansion valve/Danfoss | Electronic expansion valve/Danfoss | Electronic expansion valve/Danfoss | Electronic expansion valve/Danfoss |
| Qty of fan | 1 | 1 | 1 | 1 |
| Air flow | 470 | 930 | 930 | 1300 |
| Max. fan absorbed power | 0.07KW | 0.126KW | 0.126KW | 0.132KW |
| Max. fan absorbed current | 0.24 | 0.6 | 0.6 | 0.63 |
| Noise at 1 meter | 40 | 40 | 43 | 45 |
| Minimum air temperature for use | -5C | -5C | -5C | -5C |
| Water connect diameter | 12.7mm | 12.7mm | 12.7mm | 12.7mm |
| Electronic or mechanical control | Electronic/Carel | Electronic/Carel | Electronic/Carel | Electronic/Carel |
| Water flow | 0.1-1.2m3/h | 0.1-1.2m3/h | 0.1-1.2m3/h | 0.1-1.2m3/h |
| Available preasure(Bar) | 2.6~2.9 | 2.6~2.9 | 2.6~2.9 | 2.6~2.9 |
| Max. pump absorbed power | 0.25KW | 0.25KW | 0.25KW | 0.25KW |
| Max. pump absorbed current | 1.15 | 1.15 | 1.15 | 1.15 |
| Housing material | Coated Galvanlized steel | Coated Galvanlized steel | Coated Galvanlized steel | Coated Galvanlized steel |
| Certificates | ||||
| Size of units L x W x H in mm | 491*625*675 | 491*625*800 | 491*625*800 | 491*625*800 |
| Net weight in kg | 69 | 79 | 80 | 84 |
| Size of package L x W x H in mm | 630*696*878 | 630*696*912 | 630*696*912 | 630*696*912 |
| Groow weight in kg | 82 | 95 | 96 | 100 |
| Guarantee | One year | One year | One year | One year |
More information, pls feel free to contact us.
